Dustproof Custom Graphic Overlay Chemical Resistant With 3M Adhesive LCD Window
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 001-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T, PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone , RAL ,or CMYK, Or Samples |
|---|---|---|---|
| Adhesive: | 3M Adheisve Or Other Reuqest | Size: | Custom Design |
| Storage Temperature: | -40℃ To 70℃ | Operating Temperature: | -40℃ To 70℃ |
| Printing: | Silk Screen Printing | Shape: | Custom Design |
| Highlight: | Dustproof Custom Graphic Overlay,Dustproof graphic overlay membrane,Chemical Resistant graphic overlay membrane |
||
Product Description
Dustproof Custom Graphic Overlay Chemical Resistant With 3M Adhesive LCD Window
Product Specifications
| Attribute | Value |
|---|---|
| Material | PET or PC |
| Color | Pantone, RAL, CMYK, or samples |
| Adhesive | 3M adhesive or other request |
| Size | Custom design |
| Storage Temperature | -40℃ to 70℃ |
| Operating Temperature | -40℃ to 70℃ |
| Printing | Silk Screen Printing |
| Shape | Custom design |
Silver Screen Printing Graphic Overlays With 3M Adhesive And LCD Window
Overlay Material
- Polyester: Highly versatile for embossing, chemical resistant, better durability, suitable for internal and external use
- Polycarbonate: Wide range of surface finishes and thicknesses, more cost-effective, suitable for internal and external use
Key Features
- Embossing: Available in pedestal, rim, pillow, and dim styles for tactile feedback
- Windows/LCD: Available in printed colors or transparent finishes
- Keys: Tactile (poly domes) or non-tactile (printed silver spot) options
- LED Window: Custom transparent or tinted designs
- EL and Sensors: Custom lighting and sensing solutions
- Cables: Screen printing conductive silver, copper plated, or PCB options
- Connectors: ZIF (0.5-1.25mm pitch), female (2.54mm pitch), or male options
- Shielding: Gasket seal/waterproof or EMI/RFI/ESD protection options
- Adhesive: Primarily 3M double-side mounting glue, other brands available
- Back Plate: Aluminum, polycarbonate, acrylic, or PMMA options
- Color Matching: PMS or RAL preferred, CMYK or RGB available
- Standard Tolerances: ±0.2mm
Performance Specifications
| Category | Specification |
|---|---|
| Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) |
| Humidity | 40°C, 90% to 95% for 240 hours |
| Vibration | 20G's max. |
| Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm |
| Switch Stroke (Tactile) | 0.6 to 1.5mm |
| Life Expectancy (Non-tactile) | >5 million actuations |
| Life Expectancy (Tactile) | >1 million actuations |
| Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive |
| Operating Power | 1 watt maximum |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout |
| Insulation Resistance | 100M ohms at 100V DC |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) |
| Contact Bounce | ≤ 5 milliseconds |
Our Services
- 24-hour response to inquiries
- Custom design services (OEM/ODM available)
- Professional English support from experienced staff
- Custom solutions from trained engineers
- High quality products with testing and short lead times
- Custom shapes, sizes, colors, and technologies
- Prototype samples and artwork approval before mass production

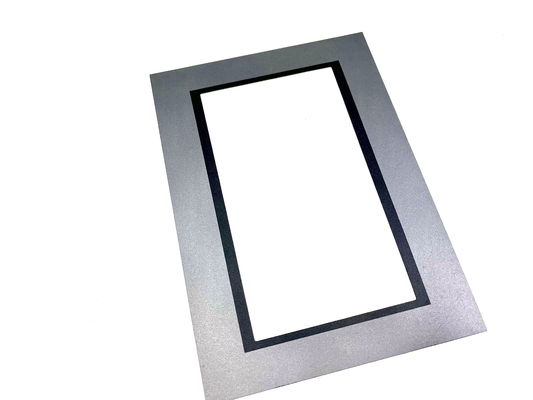

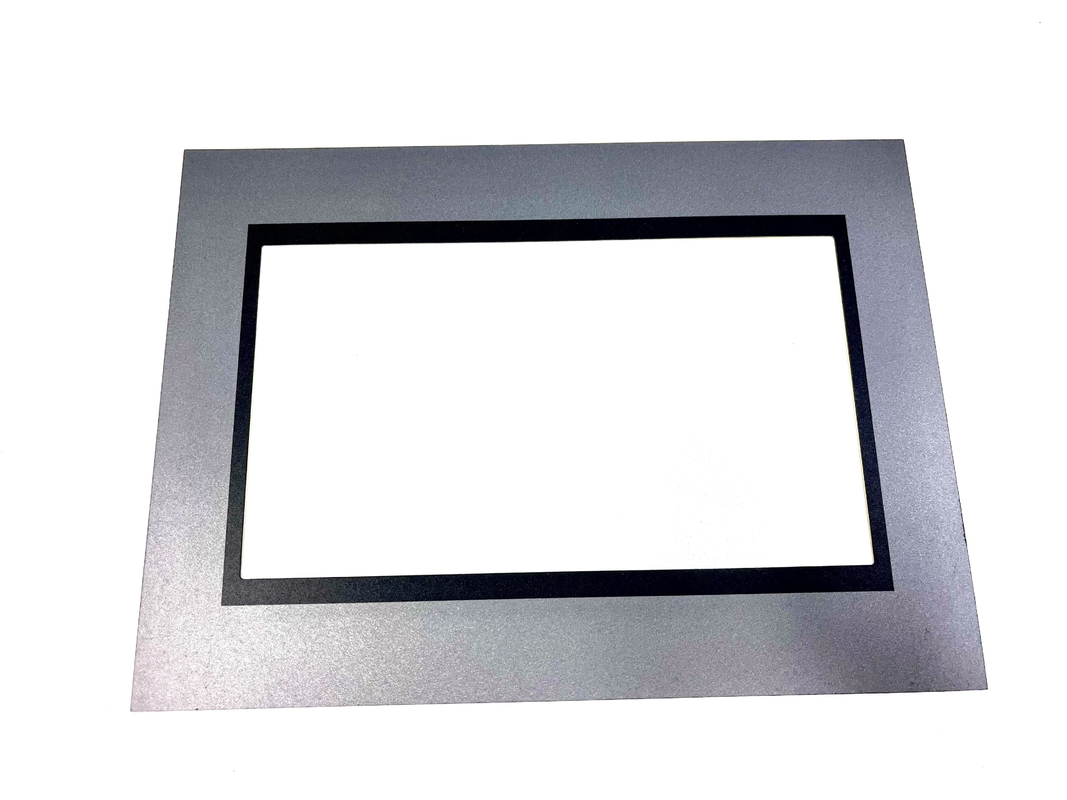

Product Images
