Electronic Customized 4 Button Membrane Switch With Tinted LED Embeded
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 220-004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 20000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome Or Metal Dome | Connector Type: | ZIF , Female Or Male Connector |
| Embossing Shape: | Rim Embossing ,Pollow Embosing | Circuit Options: | FPC ,silver Plate ,or PCB Board |
| LED Brand: | Everlight Or Others | LED Type: | 0805,or 0603 |
| LED Color: | Green ,Yellow ,Blue Or Others | LED Window Type: | Clear ,semi-transparent Or Tinted |
| Highlight: | Customized 4 Button Membrane Switch,Electronic 4 Button Membrane Switch,Electronic arduino membrane switch |
||
Product Description
Electronic Customized 4 Button Membrane Switch With Tinted LED Embedded
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome or metal dome |
| Connector type | ZIF, female or male connector |
| Embossing shape | Rim embossing, Pillow embossing |
| Circuit options | FPC, silver plate, or PCB board |
| LED brand | Everlight or others |
| LED type | 0805, or 0603 |
| LED color | Green, Yellow, Blue or others |
| LED window type | Clear, semi-transparent or tinted |
Product Description
This LED CNC membrane switch combines a flexible, waterproof membrane with integrated LED illumination and CNC-machined components for customized, illuminated control panels and keypads.
Construction and Design
- Multilayer construction including top graphic overlay, flexible membrane, conductive switch elements, and LED illumination layers
- CNC-machined components provide precision-engineered housing and button layout
- Dome-shaped or embossed areas for tactile feedback when pressed
- Customizable backlighting and visual indicators
Functionality and Performance
- Reliable, water-resistant user input and control functionality
- Responsive tactile membrane buttons
- Enhanced visibility through integrated LED illumination
- Durable construction withstands frequent use and environmental factors
Technical Specifications
| Category | Specification |
|---|---|
| Environmental |
Operating Temperature: -40°C to +80°C Storage Temperature: -40°C to +85°C Humidity: 40°C, 90% to 95% for 240 hours Vibration: 20G's max. |
| Mechanical |
Actuation Force: 60g-300g (non-tactile), 150g-400g (tactile) Switch Stroke: 0.1-0.5mm (non-tactile), 0.6-1.5mm (tactile) Life Expectancy: >5 million actuations (non-tactile), >1 million (tactile) |
| Electrical |
Operating Voltage: 35V max Operating Current: 10μA to 100mA Operating Power: 1W max Circuit Resistance: 10Ω to 500Ω Insulation Resistance: 100MΩ at 100V DC Dielectric Withstand: >250 VRMs Contact Bounce: ≤5ms |

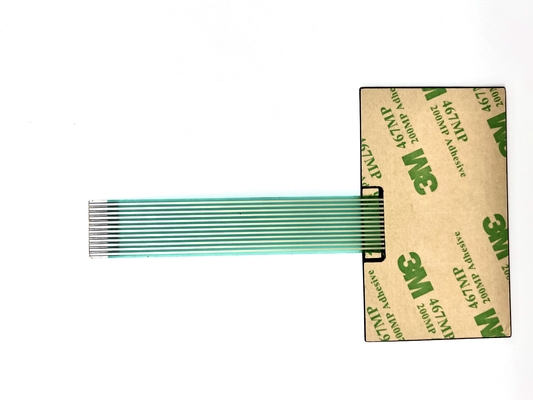

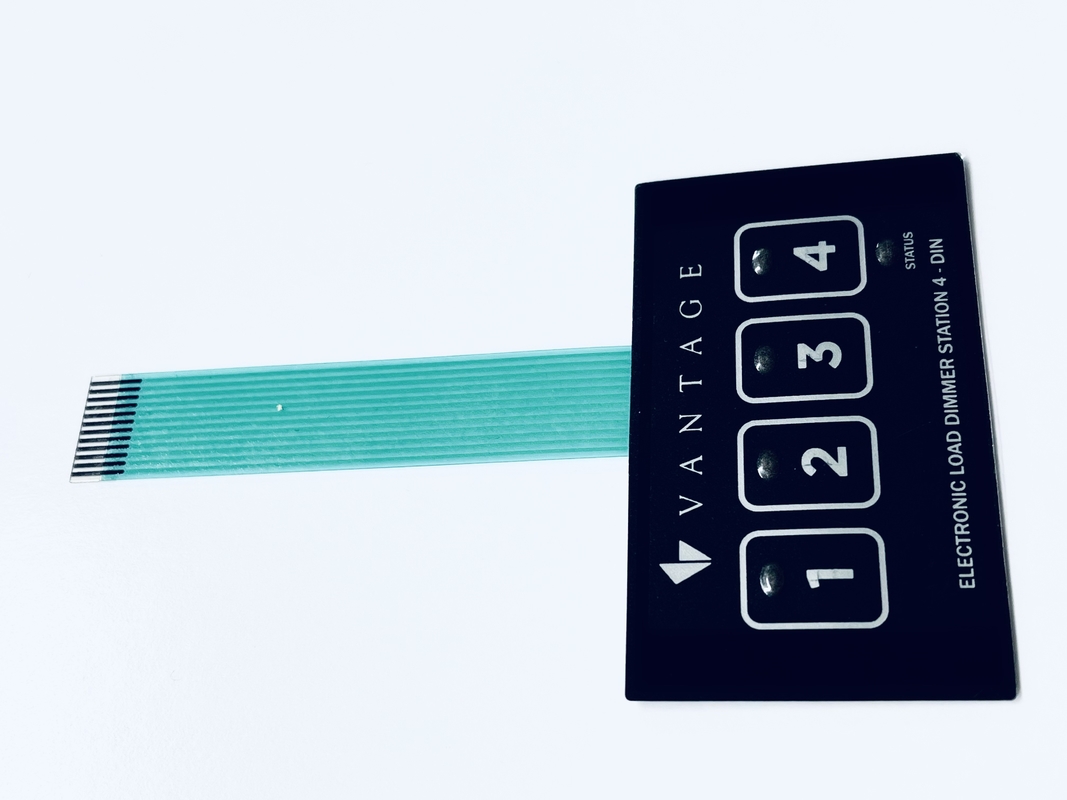

Product Images
Why Choose Taida
- Professional membrane switch manufacturer with over 10 years experience
- Comprehensive service from sales to after-sales support
- Alibaba Assessed 5 years Gold Supplier
- 100% quality control inspection before shipment
About ShenZhen TaiDa Membrane Switch Co.,LTD
Taida is an OEM professional specializing in designing and manufacturing membrane switches, graphic overlays and adhesive stickers/labels with over 15 years experience. Our products are widely used in industrial, electronics, household appliances, and medical equipment applications.
Factory Strength
- Factory Area: Over 2000 Square meters
- Employees: >70
- R&D: Continued quality improvement and professional technical support
- Manufacturing: Strong productivity with unified production processes
- Quality Control: 20% of workforce dedicated to QC/QA
- Dispatch: Efficient shipping and logistics capabilities
