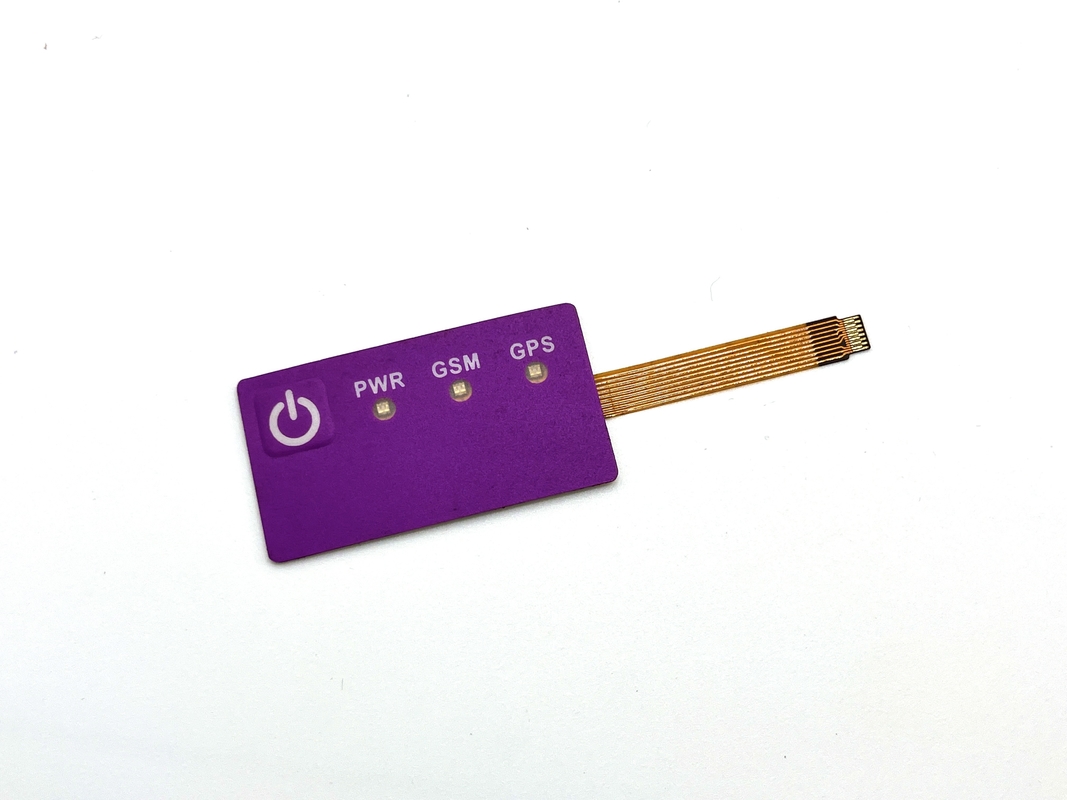

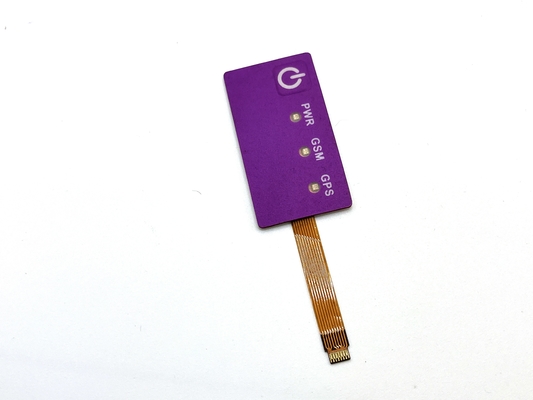

Customizable LED Membrane Switch High Durability 2.54MM Pitch With Led
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or Custom design |
| Certification: | ISO9001 |
| Model Number: | 241014-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and into carton with foam |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union and Paypal |
| Supply Ability: | 20000 +pcs +a month |
|
Detail Information |
|||
| Service Life: | > 1 Million Times | Fpc Membrane Switch: | PC Or PET Material |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM ,1.0MM ,1.25MM ,0.5MM | Operating Current: | 20mA-100mA |
| Life Expectancy: | 1 Million Cycles | Life Span: | >100000 Times |
| Dome: | Metal Dome | Operating Temperature: | -40°C To 70°C |
| Pin: | Need To Check The Circuit Diagram | Overlay Materials: | Polyester(PET) And Polycarbonate(PC). |
| Adhesivie: | 3M Or Negotiated | Protection Level: | First Grade |
| Humidity: | 40°C, 90% ~ 95% For 240 Hours | Embossing Shape: | Rim Embossing ,Pollow Embosing |
| Used Country: | Russia | Customization: | Yes |
| Led Type: | 0805,or 0603 | ||
| Highlight: | Customizable LED Membrane Switch,Customizable membrane switch keypad,2.54MM Pitch LED Membrane Switch |
||
Product Description
| Attribute | Value |
|---|---|
| Service Life | > 1 million times |
| Fpc Membrane Switch | PC Or PET Material |
| Pitch Of Connect | 2.54MM ,1.0MM ,1.25MM ,0.5MM |
| Operating Current | 20mA-100mA |
| Life Expectancy | 1 Million Cycles |
| Life Span | >100000 times |
| Dome | Metal Dome |
| Operating Temperature | -40°C to 70°C |
| Pin | need to check the circuit diagram |
| Overlay Materials | polyester(PET) and polycarbonate(PC). |
| Adhesivie | 3M or negotiated |
| Protection Level | first grade |
| Humidity | 40°C, 90% ~ 95% for 240 hours |
| Embossing Shape | Rim embossing ,Pollow embosing |
| Used Country | Russia |
| Customization | Yes |
| Led Type | 0805,or 0603 |
Our Manufacturing Membrane Switch with LED is ideal for any project that requires a small light switch. The switch features a metal dome switch, which provides tactile feedback when pressed, ensuring that you know when the switch has been activated. This is especially important in low-light situations, as the LED provides a visual cue that the switch has been activated.
In addition to its durability and functionality, the Manufacturing Membrane Switch with LED is incredibly easy to install. The switch can be mounted directly onto your circuit board, and its compact size means that it won't take up much space. And with a service life of over 1 million times, you can trust that this switch will continue to work reliably for years to come.
Overall, our Manufacturing Membrane Switch with LED is an excellent choice for any project that requires a small light switch. Its compact size, metal dome switch, and LED make it a functional and reliable option, while its surface finish options and thinness allow you to customize its appearance to fit your needs.
- Product Name: membrane switch with LED
- Emi Layer: Carbon Ink
- Life Span: 1 Million Cycles
- Main Name: Manufacturing Membrane Switch
- Connector Tail: ZIF, Female Connector, Male Connector
- Operating Voltage: 3V-24V
- Features: Keypad switch, Keypad switch panel
| Parameter | Value |
|---|---|
| Product Name | Manufacturing Membrane Switch with LED |
| Material | Polyester |
| Life Expectancy | 1 Million Cycles |
| Pitch of Connect | 2.54MM, 1.0MM, 1.25MM, 0.5MM |
| Operating Current | 20mA-100mA |
| Operating Voltage | 3V-24V |
| Finish | Matte/Glossy |
| Thickness | 0.125mm |
| Interface Type | Wire/Wireless |
The LED Membrane Switch is a keypad switch panel that is made of high-quality polyester material with a thickness of 0.125mm. It has a service life of over 1 million times, making it a durable and long-lasting product. The interface type can be either wire or wireless, depending on your needs.
One of the main applications of this product is its use in manufacturing membrane switches. It is also commonly used in the medical and industrial fields due to its durability and reliability. With a minimum order quantity of 100 pieces, the LED Membrane Switch is a cost-effective solution for your product needs.
- Brand Name: Taida or Custom design
- Model Number: 241014-01
- Place of Origin: DongGuan of China
- Certification: ISO9001
- Minimum Order Quantity: 100 pcs
- Price: Communication
- Packaging Details: PE bags first and into carton with foam
- Delivery Time: 7-12 working days
Our LED Membrane Switch allows for product customization services to fit your specific needs. These industrial membrane switches are perfect for use in any application requiring a keypad switch and offer a life expectancy of 1 million cycles.
Our LED Membrane Switch product comes with comprehensive technical support and services to ensure the optimal performance and functionality of the product. Our team of experienced engineers is available to provide assistance with installation, troubleshooting, and maintenance of the product. We also offer customization services to meet the unique needs and specifications of our clients.
Product Packaging: The LED Membrane Switch will be packaged in a sturdy cardboard box to ensure safe transportation. The product will be wrapped in bubble wrap to provide extra protection against any possible damage during shipping. The package will also contain an instruction manual and any necessary cables.
Shipping: The LED Membrane Switch will be shipped via reputable courier services such as DHL or FedEx. The shipping cost will be calculated based on the weight and distance of the shipment. The estimated delivery time will be provided to the customer upon placing the order. A tracking number will be provided once the product is shipped.
