Full Printing Mini Custom Membrane Switch Panel 1.25MM Pitch With Milky LED Window Display
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241107-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 70000 +pcs +a Month Full Printing FPC Membrane Cover Switches With Milky LED Window Display |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 0.5MM ,1.0MM，1.25MM，or 2.54MM | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Circuit Options: | FPC Copper Circuit |
| Storage: | -40 °c ~ + 85 °c | Operating Current: | ≤100mA |
| Insulation Resistance: | >100M Ohms | Life Expectancy: | 1 Million Cycles |
| Highlight: | 1.25MM Pitch Custom Membrane Switch Panel,1.25MM Pitch membrane key switch,Mini Custom Membrane Switch Panel |
||
Product Description
Full Printing Mini Custom Membrane Switch Panel With Milky LED Window Display
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 0.5MM, 1.0MM, 1.25MM, or 2.54MM |
| Adhesive | 3M467 adhesive or others |
| Button type | Metal dome |
| Circuit options | FPC copper circuit |
| Storage | -40°C ~ +85°C |
| Operating Current | ≤100mA |
| Insulation Resistance | >100M Ohms |
| Life Expectancy | 1 million cycles |
Key Features
- Tactile Feedback: Provides noticeable click or bump when activated for user confirmation
- Actuation Force: Available in various force options to match user experience requirements
- Compact Size: Mini design suitable for space-constrained applications
- Mounting Options: Available in through-hole and surface mount configurations
Technical Specifications
| Overlay materials | PET (for better emboss effect), PC (cost saving) |
| Surface finish | Gloss, matte or velvet |
| Adhesive | Most use 3M467MP, all types available |
| Thickness | 0.9mm-2.0mm |
| Windows | Optional: colored or transparent |
| Actuation force | Flat type: 60-300g (2-10oz) Tactile type: 150-400g (6-14oz) |
| Life expectancy | Flat type: 5,000,000+ cycles Tactile type: 1,000,000+ cycles |
Applications
- Industrial Equipment: Control panels and machinery interfaces
- Automotive: Dashboards and control systems
- Home Appliances: Microwaves, coffee makers, and other devices
Selection Considerations
- Size and footprint requirements
- Electrical specifications (voltage and current ratings)
- Environmental factors (dust/moisture protection)
- Desired actuation force for optimal user interaction
Our Services
- 24-hour response to inquiries
- Custom design services (OEM/ODM available)
- Professional English support from experienced staff
- Custom solutions from trained engineers
- High quality products with testing and short lead times
- Flexible manufacturing for any shape, size, color, or technology
- Sample approval process before mass production

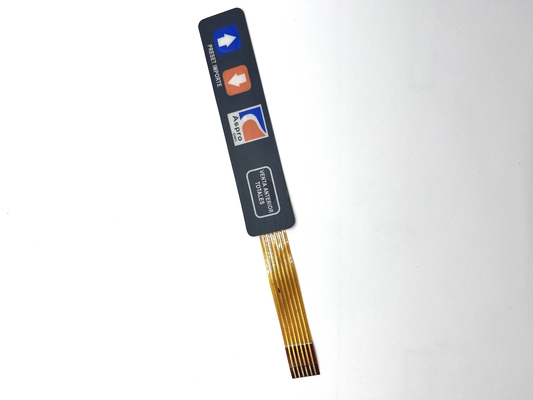

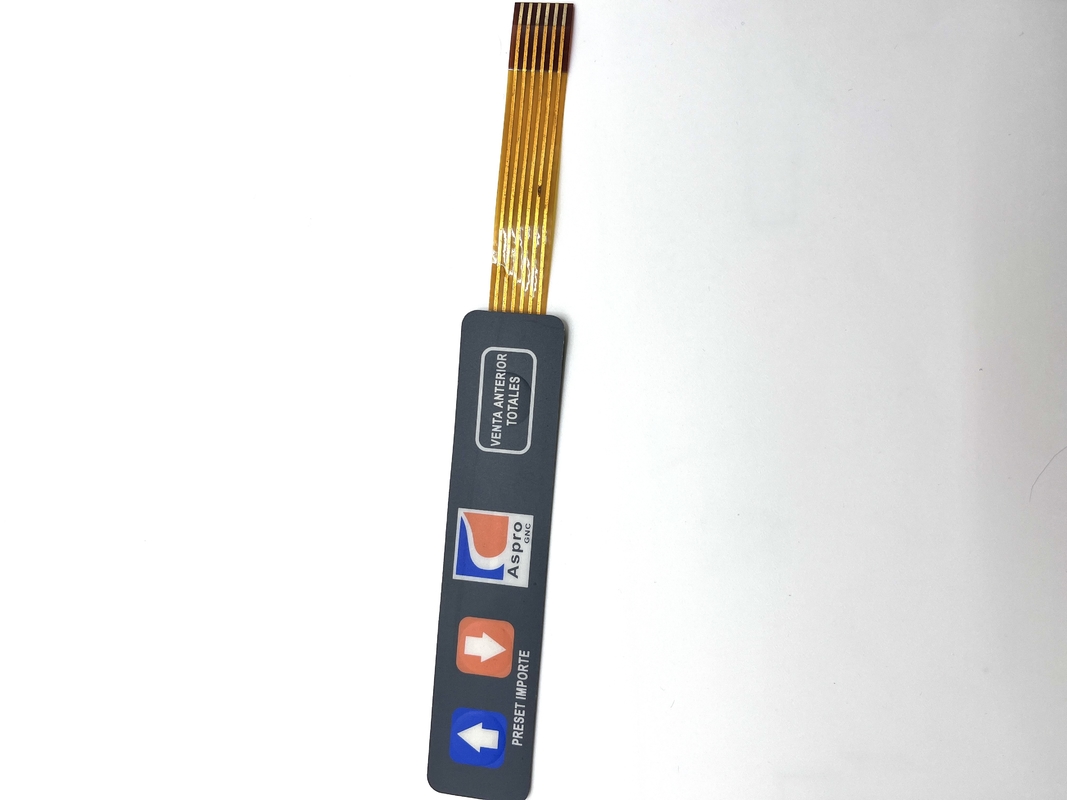

Product Images
How to Order
- Send product drawings, specifications, or photos
- Confirm order details and approve artwork
- Sample lead time: 4-5 business days
- Mass production lead time: 7-10 business days
