Texture Coating 1x3 FPC Membrane Switch Chemicals Resistant With Perimeter Emboss All Keys
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241106-21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 50000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome | Button Types: | Metal Stainess Domes |
| Printing Method: | Screen Printing,digital Printing | Embossing Shape: | Rim Embossing ,Pollow Embosing |
| Highlight: | Texture Coating FPC Membrane Switch,Texture Coating custom keypad membrane,Chemicals Resistant FPC Membrane Switch |
||
Product Description
Texture Coating 1x3 FPC Membrane Switch Chemicals Resistant With Perimeter Emboss All Keys
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome |
| Button types | Metal stainless domes |
| Printing Method | Screen printing, digital printing |
| Embossing shape | Rim embossing, Pillow embossing |
Product Description
Texture Coating 1x3 Matrix Membrane Switch Keypad with perimeter emboss all keys, designed for durability and chemical resistance.
Key Features
- Overlay Material: Polyester or Polycarbonate options with different benefits
- Embossing Options: Pedestal, Rim, Pillow, or Dim embossing for tactile feedback
- Windows/LCD: Printed color windows or transparent finishes available
- Keys: Tactile (metal or poly domes) or non-tactile options
- LEDs: Available in multiple colors including white, green, red, blue, yellow, orange
- Cables: Screen printed conductive silver, copper plated, or FPC options
- Connectors: ZIF, female, or male connector types available
- Shielding: Gasket seal/waterproof or EMI/RFI/ESD shielding options
Technical Specifications
Electrical Properties
| Property | Value |
|---|---|
| Operating voltage | ≤ 50VDC |
| Operating Current | ≤ 100mA |
| Contact resistance | 0.5 ~ 10Ω |
| Insulation resistance | ≥ 100MΩ (100VDC) |
| Substrates withstand voltage | 2kDVC |
| Rebound time | ≤ 6ms |
Mechanical Behavior
| Property | Value |
|---|---|
| Service life | > 1 million times |
| Closed displacement | 0.1 ~ 0.4mm (tactile) 0.4 ~ 1.0mm |
| Force standard | 15 ~ 750g force |
Environmental Performance
| Property | Value |
|---|---|
| Operating Temperature | 20°C ~ +70°C |
| Storage temperature | -40°C to +85°C at 95% ± 5% humidity |
| Gas pressure | 86 ~ 106KPa |
Frequently Asked Questions
Q1. What information will I have to provide for price?
A: To offer the exact price, we need material specifications, thickness, size, adhesive requirements, printing colors, contact details, quantity required, size and shape with artwork files.
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging is available with proper authorization.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
Q4. How about your delivery time?
A: Samples are completed in 5 days after drawing confirmation. Mass production takes 10 days after sample approval. Exact timing depends on order specifics.
Q5. Can you produce according to the samples?
A: Yes, we can produce based on your samples or technical drawings, including creating necessary molds and fixtures.

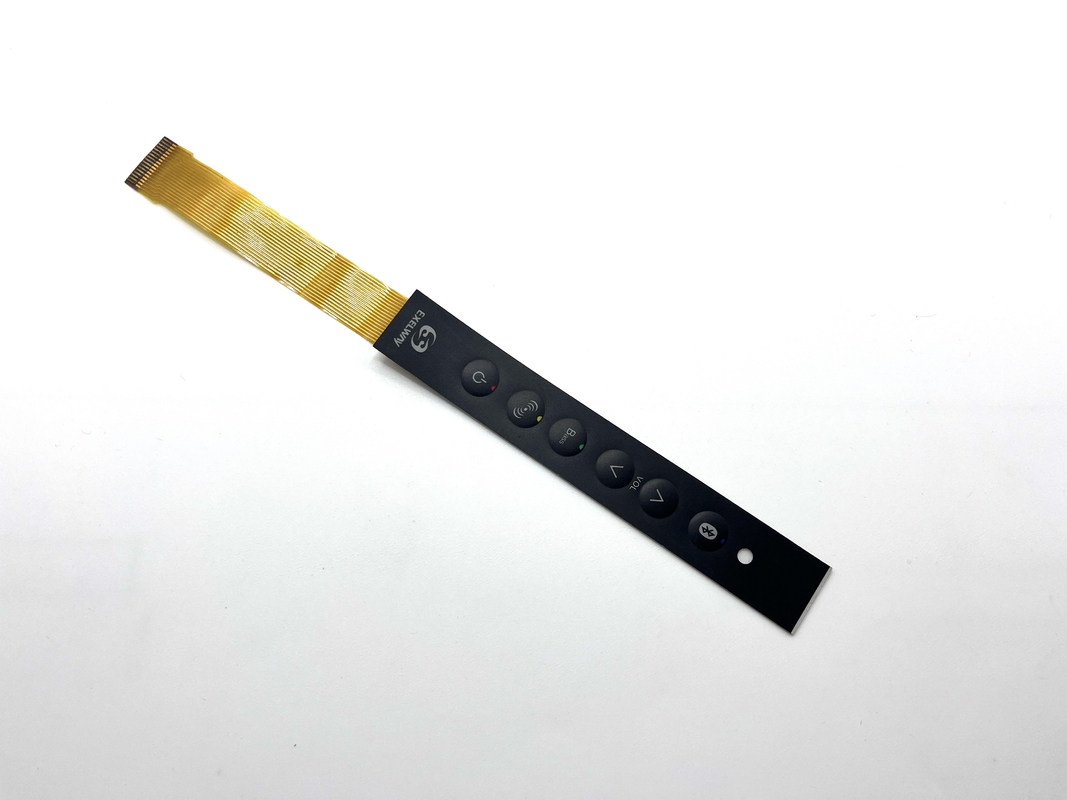

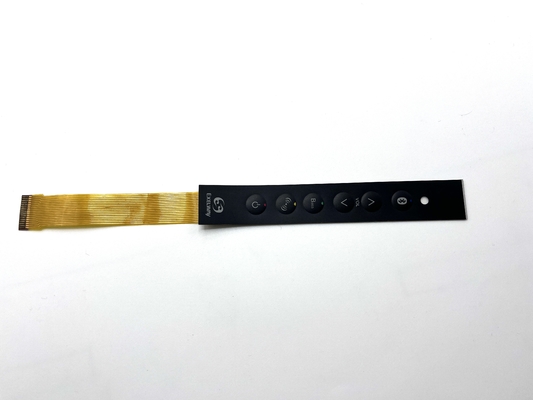

Product Images
