Texture Coating 1x3 Matrix Membrane Switch With Perimeter Emboss All Keys
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241108-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 33000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Types: | Metal Stainess Domes | Printing Method: | Screen Printing,digital Printing |
| Embossing Shape: | Rim Embossing ,Pollow Embosing | Circuit Option: | FPC Copper |
| Highlight: | Texture Coating Matrix Membrane Switch,1x3 Matrix Membrane Switch,Texture Coating membrane switch keypad |
||
Product Description
Texture Coating 1x3 Matrix Membrane Switch With Perimeter Emboss All Keys
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button types | Metal stainless domes |
| Printing Method | Screen printing, digital printing |
| Embossing shape | Rim embossing, Pillow embossing |
| Circuit option | FPC copper |
Key Considerations
- Tactile Feedback: Determine if tactile feedback is necessary for user experience
- Material: Choose between polycarbonate, polyester, or other materials based on durability and aesthetics
- Environmental Resistance: Ensure it meets specific requirements for moisture, heat, or chemical exposure
Product Features
Durability: Resistant to dust, moisture, and other environmental factors, making them suitable for harsh conditions
Low Profile: Slim design allows for easy installation in tight spaces
Design Flexibility: Can be customized in terms of shape, size, and graphic design
Easy Cleaning: Smooth surface allows for easy maintenance and cleaning
Variety of Options: Can be equipped with different types of tactile feedback, such as raised buttons or backlighting
Applications
- Industrial Equipment: Control panels and machinery
- Automotive Interfaces: Dashboards and infotainment systems
- Consumer Electronics: Remote controls, appliances, and gaming devices
- Medical Devices: Equipment like monitors and diagnostic tools
Technical Specifications
Electrical Properties
| Property | Value |
|---|---|
| Operating voltage | ≤ 50VDC |
| Operating Current | ≤ 100mA |
| Contact resistance | 0.5 ~ 10Ω |
| Insulation resistance | ≥ 100MΩ (100VDC) |
| Substrates withstand voltage | 2kDVC |
| Rebound time | ≤ 6ms |
Mechanical Behavior
| Property | Value |
|---|---|
| Reliability of service life | > 1 million times |
| Closed displacement | 0.1 ~ 0.4mm (tactile) 0.4 ~ 1.0mm |
| Kin standard for force | 15 ~ 750g force |
Environmental Performance
| Property | Value |
|---|---|
| Operating Temperature | -20°C ~ +70°C |
| Storage temperature | -40°C to +85°C temperature 95% ± 5% |
| Large gas pressure | 86 ~ 106KPa |
Frequently Asked Questions
Q1. What information will I have to provide for price?
To offer the exact price, we need material specifications including thickness, size, adhesive requirements, printing colors, contact details, quantity required, size and shape with artwork files.
Q2. What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. With proper authorization, we can use your branded packaging.
Q3. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
Q4. How about your delivery time?
Samples are completed in 5 days after drawing confirmation. Mass production takes 10 days after sample approval. Exact timing depends on order specifics.
Q5. Can you produce according to the samples?
Yes, we can produce based on your samples or technical drawings, including creating necessary molds and fixtures.

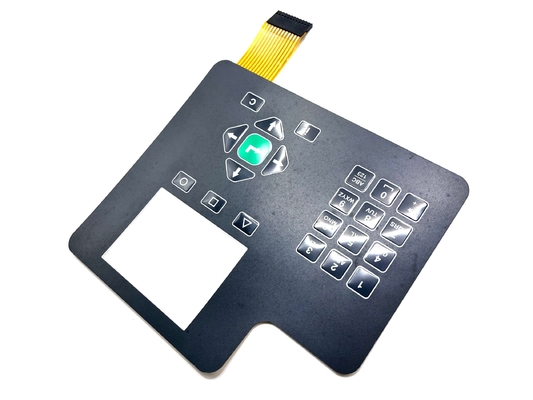

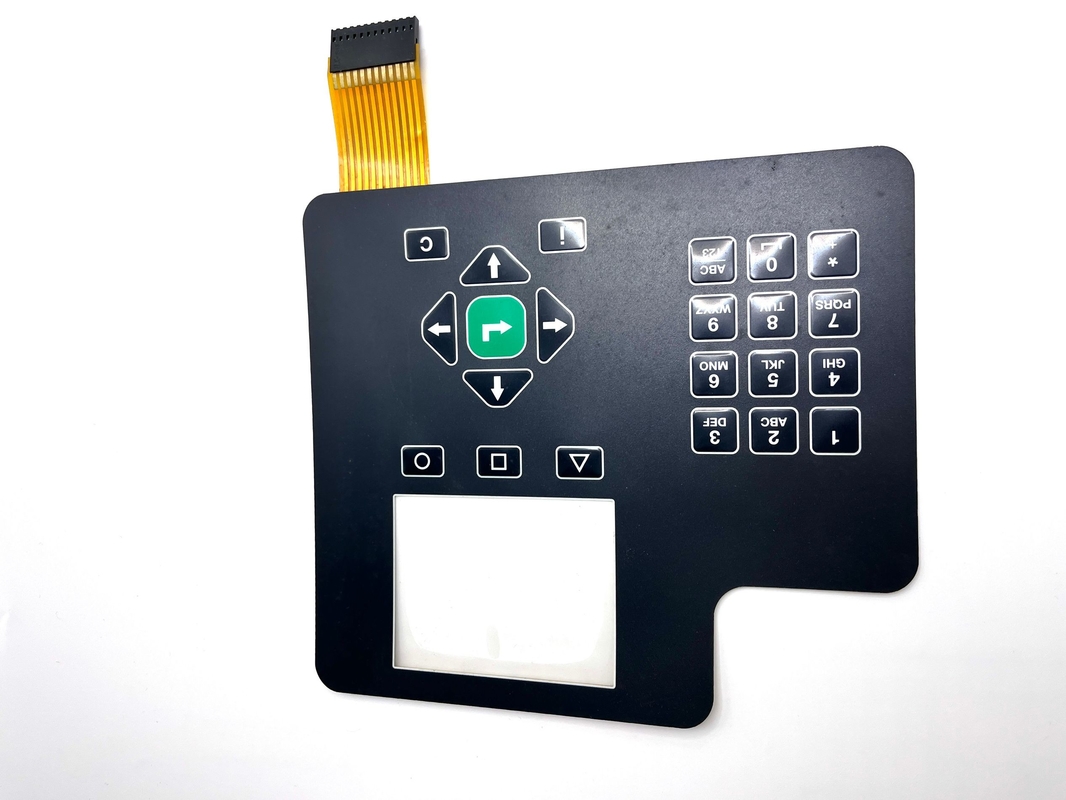

Product Images
