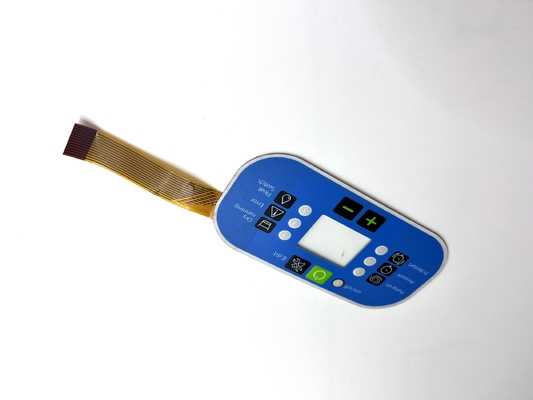

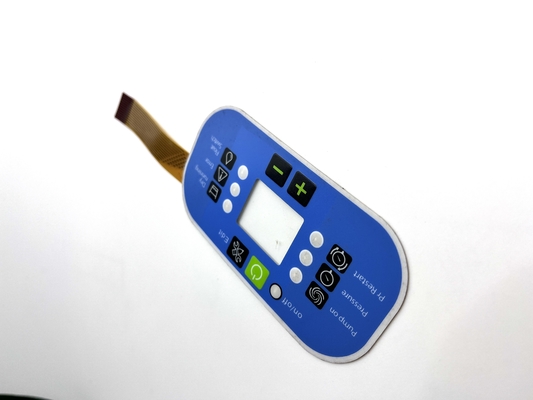

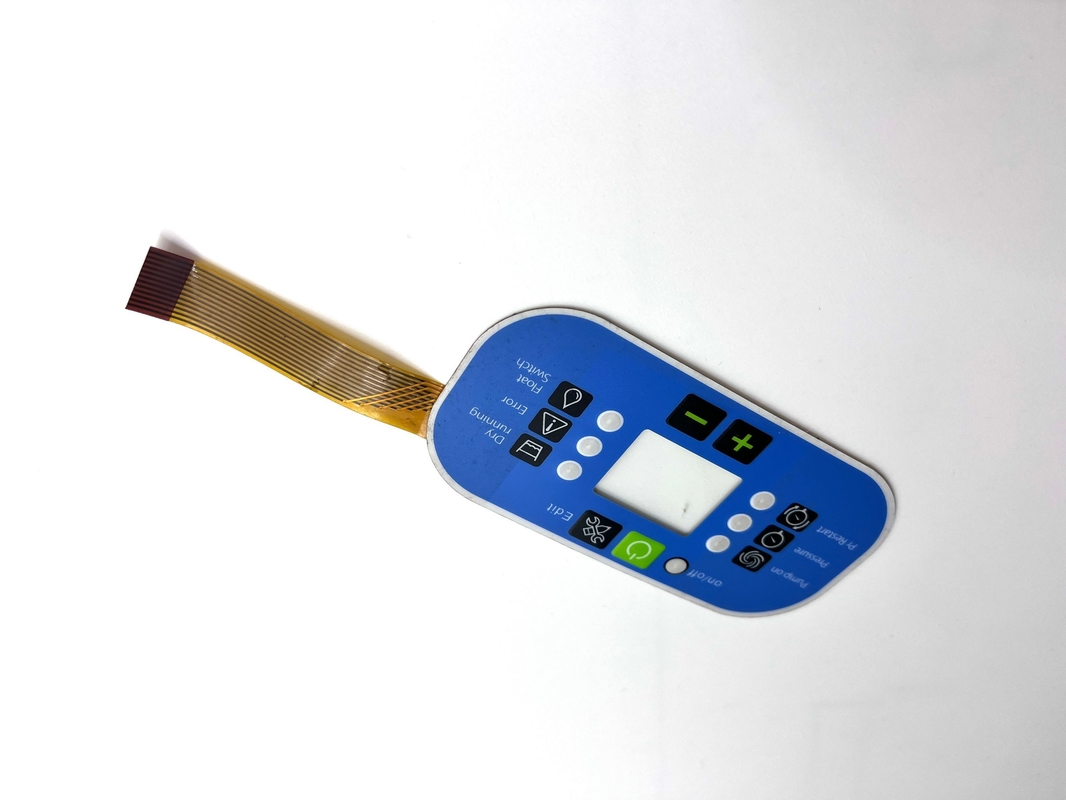

Versatile Membrane Switch Overlay Membrane Switch Panel High Durability
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241107-11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 41000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome | Button Types: | Metal Stainess Domes |
| Printing Method: | Screen Printing,digital Printing | Embossing Shape: | Rim Embossing ,Pollow Embosing |
| Circuit Option: | FPC Copper | Keypad Button Material: | PET ,PC , Silicone |
| Highlight: | Versatile Membrane Switch Overlay,High Durability Membrane Switch Overlay,High Durability Membrane Switch Panel |
||
Product Description
Versatile Membrane Switch Overlay Membrane Switch Panel High Durability
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome |
| Button types | Metal stainless domes |
| Printing Method | Screen printing, digital printing |
| Embossing shape | Rim embossing, Pillow embossing |
| Circuit option | FPC copper |
| Keypad Button Material | PET, PC, silicone |
Texture Coating 1x3 Matrix Membrane Switch Connectors With Perimeter Emboss All Keys
Types of Membrane Switch Connectors
- Wire-to-Board Connectors: Connectors that allow individual wires from the membrane switch to connect to a PCB. Ideal for applications where flexibility or modularity is needed. Often use JST or Molex connectors.
- Solder Tabs: Small metal tabs on the membrane switch that can be soldered directly to the PCB. Suitable for permanent connections where flexibility is not required. Requires careful soldering to avoid damaging the membrane.
- Flat Flex Cables (FFC/FPC): Thin, flexible cables that connect the membrane switches to the PCB. Commonly used for compact designs where space is limited. Typically paired with a ZIF (Zero Insertion Force) connector.
- Pin Headers: Rows of pins that can be soldered directly to the PCB. Allows for easy connection of the membrane switch with individual wires. Can be male or female headers, depending on the design.
- Integrated Connectors: Some membrane switches come with integrated connectors that connect directly to the PCB. Simplifies the assembly process. Varies based on the manufacturer.
Detailed Specifications
Overlay material: Polyester or Polycarbonate with various properties for different applications.
Embossing: Graphic overlay or up circuit can be embossed to insert metal stainless steel domes for tactile feedback.
Windows or LCD: Available in printed colors or transparent finishes for display functions.
Keys: Tactile keys with metal domes or Poly domes, or non-tactile keys with printed silver spots.
LEDs: Miniature LEDs available in multiple colors including white, green, red, blue, yellow, and orange.
Electrical Properties
| Property | Value |
|---|---|
| Operating voltage | ≤ 50VDC |
| Operating Current | ≤ 100mA |
| Contact resistance | 0.5 ~ 10Ω |
| Insulation resistance | ≥ 100MΩ (100VDC) |
| Substrates withstand voltage | 2kDVC |
| Rebound time | ≤ 6ms |
Mechanical Behavior
| Property | Value |
|---|---|
| Reliability of service life | > 1 million times |
| Closed displacement | 0.1 ~ 0.4mm (tactile) 0.4 ~ 1.0mm |
| Kin standard for force | 15 ~ 750g force |
Environmental Performance
| Property | Value |
|---|---|
| Operating Temperature | 20°C ~ +70°C |
| Storage temperature | -40°C to +85°C temperature 95% ± 5% |
| Large gas pressure | 86 ~ 106KPa |
Frequently Asked Questions
Q1. What information will I have to provide for price?
A: To offer the exact price, we need material specifications, thickness, size, adhesive requirements, printing colors, contact details, quantity required, size and shape with artwork files.
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging is available with proper authorization.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
Q4. How about your delivery time?
A: Samples are completed in 5 days after drawing confirmation. Mass production takes 10 days after sample approval. Exact timing depends on order specifics.
Q5. Can you produce according to the samples?
A: Yes, we can produce based on your samples or technical drawings, including creating necessary molds and fixtures.
Product Gallery
