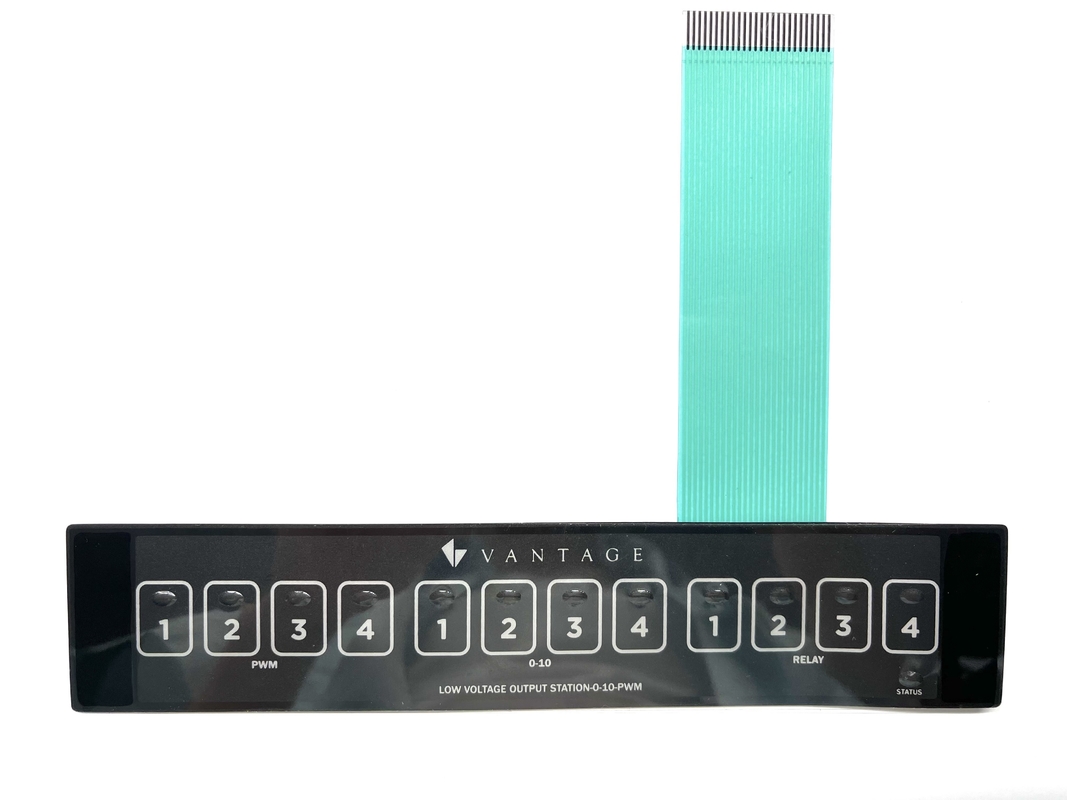

Emboss Energy Saving LED Membrane Switch With Touched Push Keys Button
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0613-004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 9000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome , Metal Snap Dome, Flat Button | Size: | Custom Design |
| LCD Window Options: | Transparent ,tinted ,or Cutout | Printing Method: | Screen Printing,digital Printing |
| Total Thickness: | 0.4mm-1.5mm | Connector Type: | ZIF Connector , Female Or Male Connector |
| LED Type: | 0805,0603 | LED Color: | Red ,blue ,white Or Other Custom Design |
| Highlight: | Energy Saving LED Membrane Switch,Energy Saving membrane touch switch,Touched LED Membrane Switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome, Metal snap dome, flat button |
| Size | Custom design |
| LCD window options | Transparent, tinted, or cutout |
| Printing Method | Screen printing, digital printing |
| Total Thickness | 0.4mm-1.5mm |
| Connector type | ZIF connector, female or male connector |
| LED type | 0805, 0603 |
| LED color | Red, blue, white or other custom design |

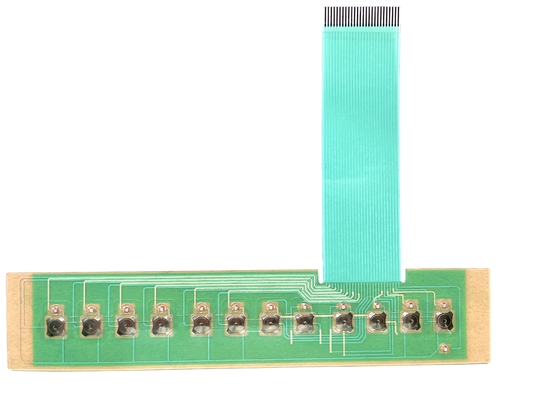

One or more LEDs are integrated into the membrane switch assembly, typically on the PCB layer. The LEDs provide illumination through the membrane switch layer, creating a backlit or edge-lit effect.
The membrane switch layer provides tactile feel and "click" sensation when pressed, enhancing user experience and providing positive activation indication.
Integrated LEDs illuminate the switch surface or surrounding area, providing visual feedback about switch state (on/off), notifications, or enhancing interface aesthetics.
LED membrane switches can be customized in size, shape, graphics/legends, and lighting effects (constant illumination, blinking, or color-changing) to meet specific application requirements.
- Overlay material: Polyester or Polycarbonate with various surface finishes
- Embossing options: Pedestal, Rim, Pillow, or Dim embossing for tactile response
- Windows/LCD: Printed color windows or transparent finishes available
- Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot) options
- LEDs: Miniature LEDs available in multiple colors including white, green, red, blue, yellow, orange
- Connectors: ZIF (0.5-1.25mm pitch), female/male (2.54mm pitch) options
- Shielding: Gasket seal/waterproof or EMI/RFI/ESD shielding available
- Standard Tolerances: ±0.2mm
- Send drawings, specifications, or photos of your product
- Confirm order details and approve artwork before sampling
- Sample lead time: 7 business days
- Mass production lead time: 7-10 business days (varies by quantity and complexity)
- 24-hour response to inquiries
- Custom design services (OEM/ODM available)
- Professional English support from experienced staff
- Unique solutions from trained engineers
- Quality assurance with full testing before shipment
With over 15 years of experience, we specialize in designing and manufacturing membrane switches, graphic overlays, and adhesive labels for industrial, electronics, household appliance, and medical equipment applications. Our products serve more than 500 customers worldwide, particularly in USA, EU, UK, and Middle East markets.
- Facility: 2000+ square meters production area
- Workforce: 70+ employees including 20% QC staff
- R&D: Continuous quality improvement and technical support
- Production: Streamlined processes for fast delivery
- Quality: Rigorous quality control procedures
- Shipping: Efficient dispatch for accurate and timely delivery
