Polyester Low Resistance Waterproof Flexible Membrane Switches Metal Dome Membrane Switch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 066-015B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Carton with foam etc |
| Delivery Time: | 5-7 days for samples making ;10-14 days for batch goods delivery time |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 10000 +pcs +a month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Other Request | ZIF Connector: | 1.0MM |
|---|---|---|---|
| Buttons Type: | Metal Dome | Color: | Pantone , RAL , CMYK Or Based On The Samples |
| Back Adhesive: | 3M467 Or Other Request | LED: | Everlight |
| Backlighting: | LED | Thickness: | 0.125mm |
| Operating Temperature: | -40℃ To 70℃ | Printing: | Screen Printing |
| Life Expectancy: | 1 Million Cycles | Operating Current: | ≤100mA |
| Led Color: | Green/Blue/Red/Yellow/White | Actuation Force: | 160-180g |
| Highlight: | Polyester Waterproof Flexible Membrane Switches,Low Resistance Waterproof Flexible Membrane Switches,Low Resistance Metal Dome Membrane Switch |
||
Product Description

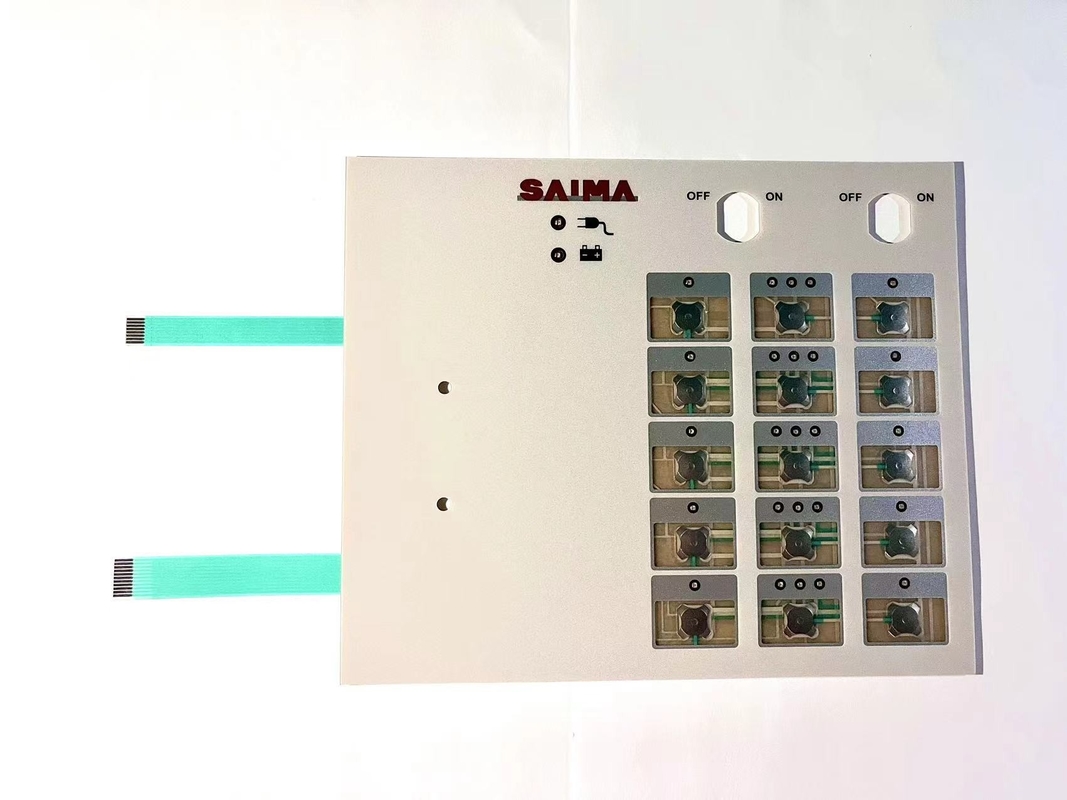

Polyester Low Resistance Waterproof Flexible Membrane Switches Metal Dome Membrane Switch
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or other request |
| ZIF connector | 1.0MM |
| Buttons type | Metal dome |
| Color | Pantone, RAL, CMYK or based on the samples |
| Back Adhesive | 3M467 or other request |
| LED | Everlight |
| Backlighting | LED |
| Thickness | 0.125mm |
| Operating Temperature | -40℃ to 70℃ |
| Printing | Screen printing |
| Life Expectancy | 1 million cycles |
| Operating Current | ≤100mA |
| Led Color | Green/Blue/Red/Yellow/White |
| Actuation Force | 160-180g |
Polyester LED Backlit Membrane Keypad Switches With Metal Click Dome Buttons
These LED membrane switches feature welded LEDs on the flexible circuit layer for reliable illumination. When multiple LEDs are integrated, they utilize 0805(0603) components with separated wiring from the lower circuit. The construction includes embossed LED windows and F200 matte PET overlay for both stability and aesthetic appeal.
Key Features:
- Ideal for industrial control applications with excellent tactile response
- Fully customizable button icons, colors, and designs
- Printed wiring with low resistance for optimal performance
- Waterproof circular structure with strong adhesive for humid environments
- Supports multiple LED colors and configurations
Construction Details
| Component | Description |
|---|---|
| Overlay Material | Polyester or Polycarbonate with various finishes |
| Embossing | Pedestal, Rim, Pillow, or Dim embossing options |
| Windows/LCD | Printed color or transparent finish options |
| Keys | Tactile (metal domes) or Non-tactile (printed silver spot) |
| LEDs | Multiple color options including white, green, red, blue, yellow |
| Cables | Screen printed conductive silver, copper plated, or PCB options |
| Connectors | ZIF (0.5MM-1.25MM pitch), Female (2.54MM pitch), or Male |
| Shielding | Waterproof gasket seals and EMI/RFI/ESD protection |
Performance Specifications
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm | |
| Switch Stroke (Tactile) | 0.6 to 1.5mm | |
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
|
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds |
