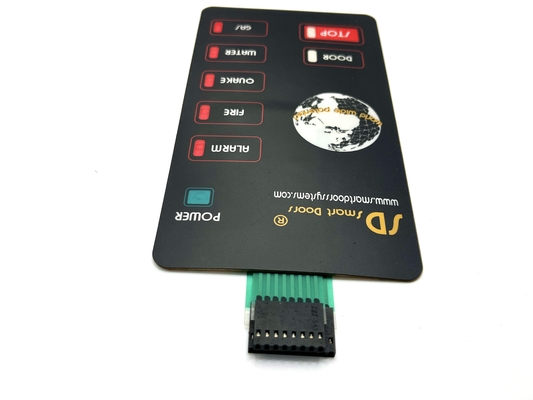

Flat Button LED Membrane Switch Semi Transparent With 2.54MM Housing
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 1014-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 9000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome , Metal Snap Dome, Flat Button | Size: | Custom Design |
| LCD Window Options: | Transparent ,tinted ,or Cutout | Printing Method: | Screen Printing,digital Printing |
| Total Thickness: | 0.4mm-1.5mm | Connector Type: | ZIF Connector , Female Or Male Connector |
| LED Type: | 0805,0603 | LED Color: | Red ,blue ,white Or Other Custom Design |
| Highlight: | Flat Button LED Membrane Switch,semi transparent LED Membrane Switch,semi transparent custom membrane keypad |
||
Product Description
Flat Button LED Membrane Switch Semi Transparent With 2.54MM Housing
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome, Metal snap dome, flat button |
| Size | Custom design |
| LCD window options | Transparent, tinted, or cutout |
| Printing Method | Screen printing, digital printing |
| Total Thickness | 0.4mm-1.5mm |
| Connector type | ZIF connector, female or male connector |
| LED type | 0805, 0603 |
| LED color | Red, blue, white or other custom design |
Product Features
- LED Integration: One or more LEDs integrated into the membrane switch assembly for backlit or edge-lit effects
- Tactile Feedback: Provides responsive "click" sensation when pressed
- Visual Feedback: Illuminated switch surface indicates activation status
- Customization: Available in various sizes, shapes, and lighting effects
Technical Specifications
Overlay material: Polyester or Polycarbonate with various surface finishes
Embossing: Multiple options including Pedestal, Rim, Pillow, and Dim embossing
Windows/LCD: Printed color windows or transparent finishes available
Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot) options
LEDs: Multiple colors including white, green, red, blue, yellow, orange
Connectors: ZIF (0.5MM-1.25MM pitch), female/male (2.54MM pitch)
Standard Tolerances: +/-0.2MM
Our Services
- 24-hour response to inquiries
- Custom design, OEM and ODM services
- Professional English support
- Engineer-designed solutions
- Quality products with short lead times

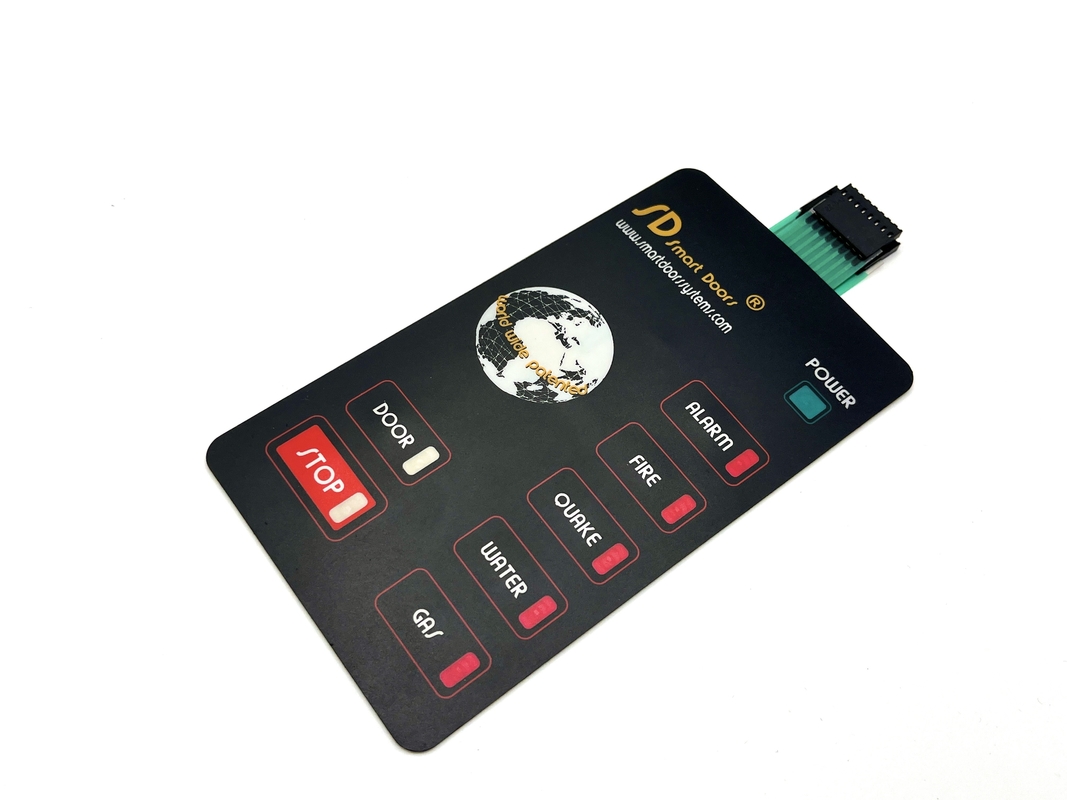

Product Images
About ShenZhen TaiDa Membrane Switch CO.,LTD
With over 15 years of experience, we specialize in designing and manufacturing membrane switches, graphic overlays, and adhesive labels for industrial, electronics, household appliances, and medical equipment applications.
Factory Strength
- 2000+ square meter facility
- 70+ employees including 20% QC/QA staff
- Dedicated R&D department
- Efficient manufacturing processes
- Global customer base
