Polyester Custom Membrane Keyboard 0.125mm Thickness With Metal Clike Dome Buttons
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 1014-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Carton with foam etc |
| Delivery Time: | 5-7 days for samples making ;10-14 days for batch goods delivery time |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 10000 +pcs +a month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Other Request | ZIF Connector: | 1.0MM |
|---|---|---|---|
| Buttons Type: | Metal Dome | Color: | Pantone , RAL , CMYK Or Based On The Samples |
| Back Adhesive: | 3M467 Or Other Request | LED: | Everlight |
| Backlighting: | LED | Thickness: | 0.125mm |
| Operating Temperature: | -40℃ To 70℃ | Printing: | Screen Printing |
| Life Expectancy: | 1 Million Cycles | Operating Current: | ≤100mA |
| Led Color: | Green/Blue/Red/Yellow/White | Actuation Force: | 160-180g |
| Highlight: | Polyester Custom Membrane Keyboard,0.125mm Thickness Custom Membrane Keyboard,0.125mm Thickness membrane switch panel |
||
Product Description

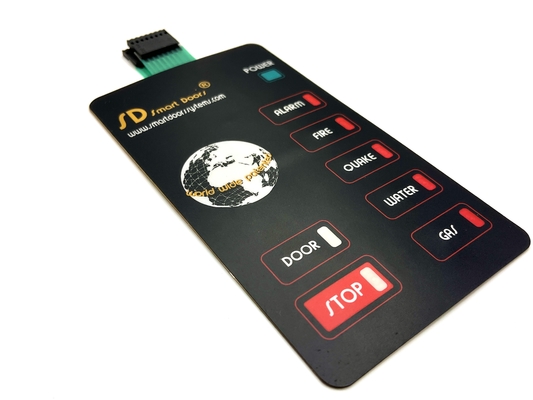

Polyester Custom Membrane Keyboard 0.125mm Thickness With Metal Clike Dome Buttons
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or other request |
| ZIF connector | 1.0MM |
| Buttons type | Metal dome |
| Color | Pantone, RAL, CMYK or based on the samples |
| Back Adhesive | 3M467 or other request |
| LED | Everlight |
| Backlighting | LED |
| Thickness | 0.125mm |
| Operating Temperature | -40℃ to 70℃ |
| Printing | Screen printing |
| Life Expectancy | 1 million cycles |
| Operating Current | ≤100mA |
| Led Color | Green/Blue/Red/Yellow/White |
| Actuation Force | 160-180g |
Polyester Female Connector LED Membrane Switches With Metal Clike Dome Buttons
LED Membrane Switches Specifications
LEDs welded on the flexible circuit layer make into the membrane switch. When several LEDs are assembled in the keypad, the LEDs should use 0805(0603) and the wiring of LED should be separated from lower circuit. The LED windows should be embossed for stable construction. Using F200 matte PET makes the overlay look graceful.
These LED keypads are widely used as industrial control keypads due to their good tactile buttons and powerful functions. The membrane switch can be customized based on customer's design including button icons and colors. Features include printed wiring, low resistance, and reliable performance.
The product can be equipped with colorful LEDs and adopts waterproof circle structure with strong adhesive, making all buttons suitable for high humidity environments.
Key Features
- Overlay material: Polyester or Polycarbonate with various benefits
- Embossing: Graphic overlay or up circuit can be embossed for tactile response
- Windows/LCD: Printed color windows or transparent finishes for display functions
- Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot) options
- LEDs: Miniature LEDs available in multiple colors
- Cables: Various options including screen printed conductive silver cable
- Connectors: Multiple types including ZIF with different pitches
- Shielding: Protection against humidity, splashes, and EMI/RFI/ESD
- Rear Adhesive: Mostly uses 3M double-side mounting glue
- Standard Tolerances: +/-0.2MM
Performance Index
| Category | Specification |
|---|---|
| Environmental |
Operating Temperature: -40°C to +80°C
Storage Temperature: -40°C to +85°C
Humidity: 40°C, 90% to 95% for 240 hours
Vibration: 20G's max.
|
| Mechanical |
Actuation Force: Non-tactile 60g to 300g / Tactile 150g to 400g
Switch Stroke: Non-tactile 0.1 to 0.5mm / Tactile 0.6 to 1.5mm
Life Expectancy: Non-tactile >5 million actuations / Tactile >1 million actuations
|
| Electrical |
Operating Voltage: 35 volts maximum
Operating Current: 10 micro amps to 100 milliamps, resistive
Operating Power: 1 watt maximum
Circuit Resistance: 10 ohms to 500 ohms
Insulation Resistance: 100M ohms at 100V DC
Dielectric Withstand: >250 VRMs (50-60Hz 1 minute)
Contact Bounce: ≤ 5 milliseconds
|
