Flexible LED Membrane Switch Energy Efficiency With Integrated Backlighting
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 250-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 50000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM , | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Connector Type: | Female Connector |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | FPC Flex Cable |
| LED Brand: | Everlight | LED Color: | Red And Green |
| Highlight: | Flexible LED Membrane Switch,Flexible custom membrane switches,Energy Efficiency LED Membrane Switch |
||
Product Description
Flexible LED Membrane Switch Energy Efficiency With Integrated Backlighting
Product Specifications
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 2.54MM |
| Adhesive | 3M467 adhesive or others |
| Button type | Metal dome |
| Connector type | Female connector |
| PN | Membrane switch, Membrane keypad, keyboard, overlay |
| Circuit options | FPC flex cable |
| LED brand | Everlight |
| LED color | Red and green |
Product Overview
FPC LED membrane switches integrate LED lighting directly into the switch assembly, offering enhanced visibility and functionality for various applications.
Key Features
- Integrated Backlighting: Embedded LEDs illuminate switch legends for improved visibility in low-light conditions
- Thin and Flexible Design: FPC construction allows for lightweight, conformable integration into various product designs
- Energy Efficiency: Low power consumption makes these switches ideal for battery-powered devices
- Reliability and Durability: Sealed construction resists environmental factors with long-lasting LED components
- Customization Options: Available in various sizes, shapes, button layouts, and LED colors
Common Applications
- Consumer electronics and appliances
- Automotive and transportation controls
- Industrial equipment and machinery
- Medical devices and instrumentation
Technical Specifications
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: -20°C to +80°C
Storage temperature: -40°C to +80°C
Life expectancy: Flat type ≥5,000,000 cycles, Tactile type ≥1,000,000 cycles
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: ±20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH

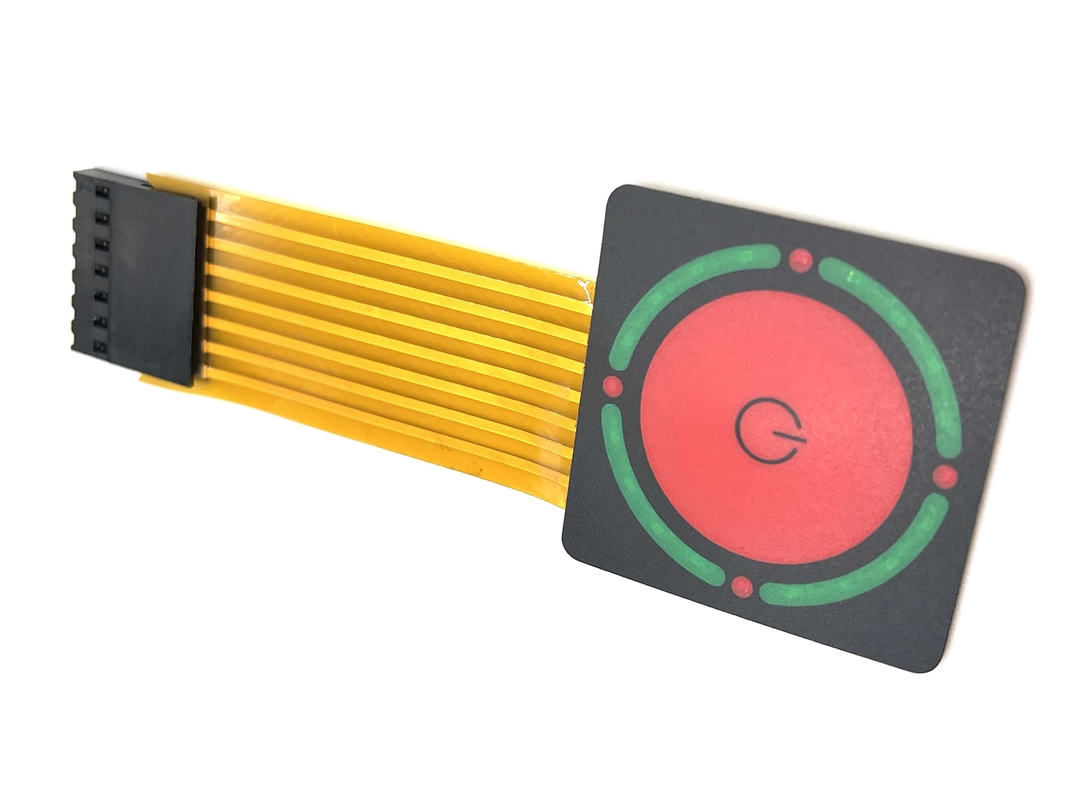

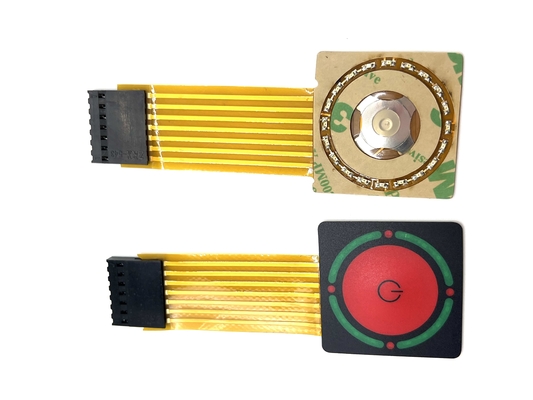

Product Images
Our Services
- 24-hour response to inquiries
- Custom design services with OEM/ODM support
- Professional engineering support and solutions
- Quality testing and short lead times
- Custom shapes, sizes, colors, and technologies
- Prototype samples and design approval before production
