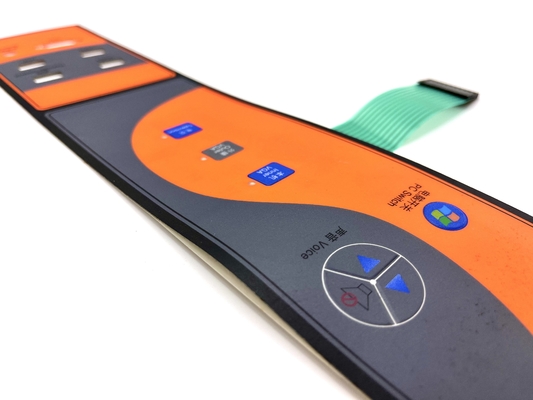

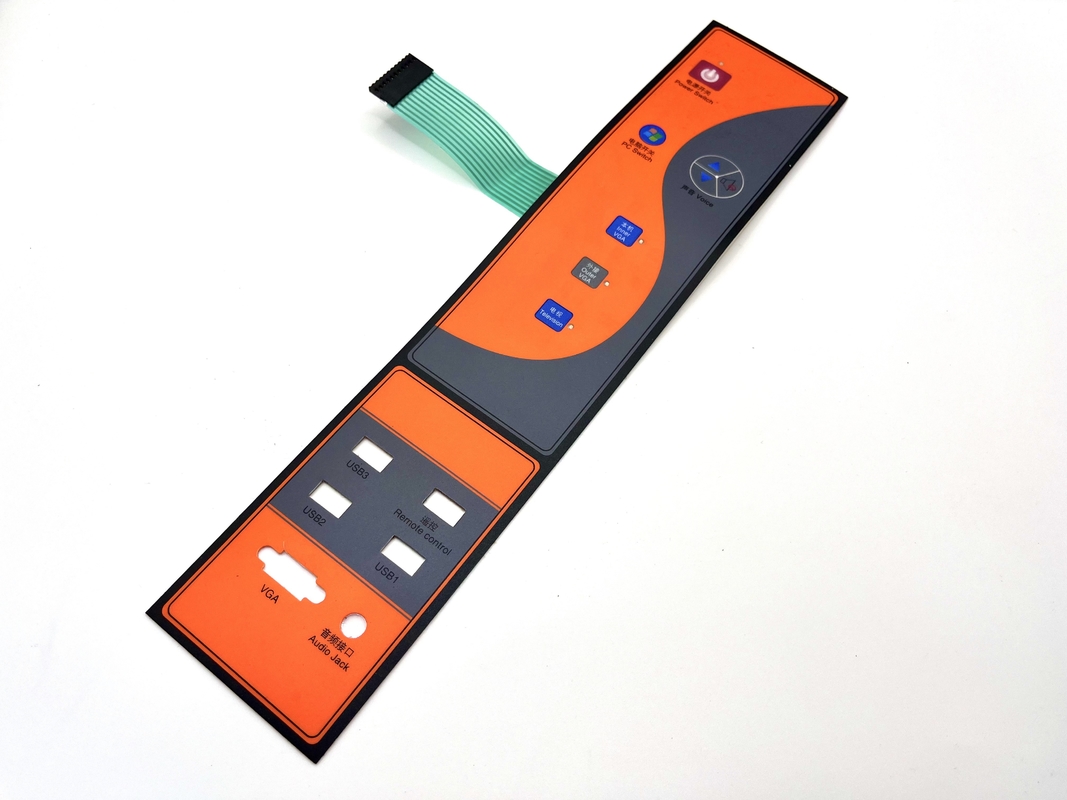

Silver Pad Domes Custom Keypad Membrane Durable Membrane Key Switch 2.54MM Pitch Connector
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 24092601-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome Or Metal Dome | Application: | Laser Instrument Or Custom Design |
| Printing Method: | Screen Printing,digital Printing | Connector Type: | ZIF Connector , Female Or Male Connector |
| Embossing Shape: | Rim Embossing ,Pollow Embosing | PN: | LED Membrane Switch |
| LED Color: | White ,bule ,red ,green Or Custom Design | LED Type: | 0603.or 0805 Or Other Request |
| Highlight: | Silver Pad Domes Custom Keypad Membrane,Durable Custom Keypad Membrane,Durable membrane key switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome or metal dome |
| Application | Laser instrument or custom design |
| Printing Method | Screen printing, digital printing |
| Connector type | ZIF connector, female or male connector |
| Embossing shape | Rim embossing, Pillow embossing |
| PN | LED membrane switch |
| LED color | White, blue, red, green or custom design |
| LED type | 0603 or 0805 or other request |
The solid printing silver pad domes membrane keypad is a high-quality input solution designed for various electronic applications. Featuring a 2.54mm pitch connector, this keypad offers seamless integration and reliable performance, making it ideal for both consumer and industrial devices.
- Solid Printing Technology: Durable graphics with high-contrast design for excellent visibility and wear resistance.
- Silver Pad Domes: Provides satisfying tactile feedback and designed for long-term durability.
- 2.54mm Pitch Connector: Standardized compatibility for easy integration with various devices and PCBs.
- Customizable Layout: Flexible key configurations and branding opportunities with custom printing.
- User-Friendly Design: Ergonomic key placement with moisture and dust resistant construction.
- Consumer Electronics: Remote controls, home appliances, gaming devices
- Industrial Equipment: Machinery control panels, operator interfaces
- Medical Devices: Hygienic and durable input solutions
- Point of Sale Systems: Retail environments requiring reliability
Polyester: Highly versatile for embossing, chemical resistant, better durability, suitable for internal/external use.
Polycarbonate: Wide range of surface finishes and thicknesses, cost-effective, suitable for internal/external use.
Graphic overlay or up circuit can be embossed to insert metal stainless steel domes for tactile feedback. Options include Pedestal, Rim, Pillow, and Dim embossing.
Available in printed color windows (red, black, etc.) or transparent finishes for display functions.
Tactile Keys: Metal domes or Poly domes with various diameters and pressure options.
Non-tactile keys: Printed silver spot on the circuit.
Miniature LEDs available in white, green, red, blue, yellow, orange and custom colors.
Screen printing conductive silver cable, Copper plated cable/Polyimide or FPC, PCB board.
Zero insertion force (ZIF) with 0.3MM, 0.5MM, 1.0MM, 1.25MM pitch; Female connector with 2.54MM pitch; Male connector.
Gasket seal/Waterproof: Protects against humidity and splashes.
EMI/RFI/ESD Shielding: Uses Aluminum foil shielding or clear ITO electrical conductive polyester.
A: To offer the exact price, we need material specifications, thickness, size, adhesive requirements, printing colors, contact details, quantity required, size and shape with artwork files.
A: Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging is available with proper authorization.
A: T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
A: Samples are completed in 5 days after engineering drawing confirmation. Mass production takes 10 days after sample approval. Exact timing depends on order specifics.
A: Yes, we can produce based on your samples or technical drawings, including building molds and fixtures.
A: We can supply samples if we have ready parts in stock, with customers covering sample and courier costs.
A: Yes, we perform 100% testing before delivery.
