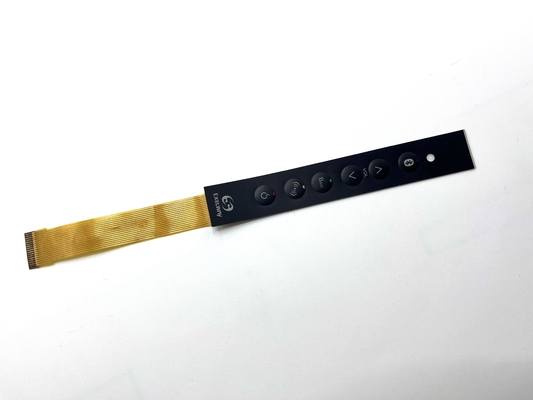

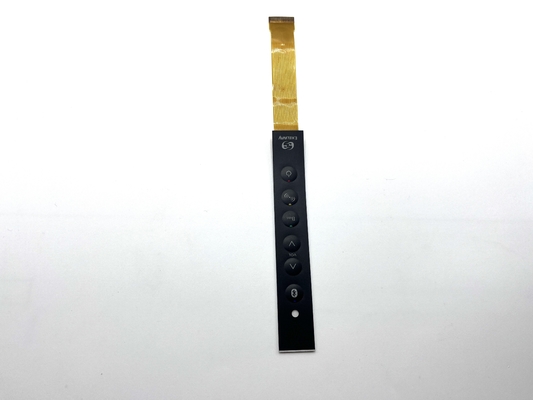

Electronics FPC Membrane Switch Long Lifespan With One Push Button
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241107-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 80000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 0.5MM ,1.0MM，1.25MM，or 2.54MM | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Circuit Options: | FPC Copper Circuit |
| Highlight: | Electronics FPC Membrane Switch,Electronics custom membrane keypad,Long Lifespan FPC Membrane Switch |
||
Product Description
Electronics FPC Membrane Switch Long Lifespan With One Push Button
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 0.5MM, 1.0MM, 1.25MM, or 2.54MM |
| Adhesive | 3M467 adhesive or others |
| Button type | metal dome |
| Circuit options | FPC copper circuit |
ZIF Contacts 0.5MM Pitch Tactile Button Switch With One Push Button
Common Applications
- Toys and Gadgets: Provides an interactive element to devices
- Consumer Electronics: Used in remote controls, keyboards, and handheld devices
- Industrial Equipment: Often found in control panels and machinery
Key Features
- Electrical Ratings: Various voltage and current ratings for different circuits
- Mounting Options: Through-hole or surface-mounted designs available
- Tactile Feedback: Distinct response enhances user experience
- Size and Shape: Multiple options to fit different applications
Technical Specifications
- Overlay Material: Polyester or Polycarbonate with various finishes
- Embossing Options: Pedestal, Rim, Pillow, or Dim embossing available
- Window Options: Printed color windows or transparent finishes
- Key Types: Tactile (metal/poly domes) or Non-tactile (printed silver spot)
- LED Options: Multiple colors including white, green, red, blue, yellow, orange
- Connector Types: ZIF (0.3-1.25MM pitch), Female (2.54MM pitch), or Male
- Standard Tolerances: +/-0.2MM
Performance Specifications
| Operating voltage | 35V DC |
| Operating current | 100mA 1W |
| Contact resistance | < 100 Ohms |
| Open circuit resistance | ≥ 10MΩ at 100V |
| Operating temperature | -20°C to +80°C |
| Life expectancy | Flat type ≥5,000,000 cycles, Tactile type ≥1,000,000 cycles |
| Switch stroke | 0.1 to 0.6mm |
| Actuation force tolerance | +/- 20 to 45g |
Shipping & Ordering Information
Shipping Options:
- FedEx/DHL/UPS/TNT for samples (Door-to-Door)
- By Air or Sea for batch goods (FCL)
- Customer-specified freight forwarders accepted
Order Process:
- Submit product drawings, specifications, or photos
- Confirm order details and approve artwork
- Receive and approve samples before mass production
- Standard lead time: 7-10 business days for mass production
Our Services
- 24-hour response time for inquiries
- Custom design services (OEM/ODM available)
- Professional engineering support and solutions
- Quality testing for all goods
- Flexible options for shapes, sizes, colors, and technologies
- Sample approval process before mass production
