Lightweight Digital Graphic Overlay High Sensitivity Membrane Switch Overlay 1.25MM Pitch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida Membrane Switches |
| Certification: | ISO9001,SGS,ROHS,REACH ,UL |
| Model Number: | 048-006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags ,Custom design Carton with foam |
| Delivery Time: | 5-7 days for sample lead time ;10-14 days for batch goods delivery time |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 13000+pcs+a month |
|
Detail Information |
|||
| Color: | Pantone ,RAL Or CMYK Or Samples | Button Type: | Embossing Metal Dome With Good Tactile |
|---|---|---|---|
| Actuation Time: | ≤10ms | Material: | Polyester Or Polycarbonate |
| Circuit Thickness: | 0.125mm PET | Contact Resistance: | ≤10Ω |
| Life Cycle: | 1 Million Actuations | Size: | Custom Design Based On Client Drawing Or Request |
| Shpe: | Custom Design | ZIF Connector Pitch: | 1.25MM |
| Highlight: | Lightweight Digital Graphic Overlay,Lightweight Membrane Switch Overlay,High Sensitivity Digital Graphic Overlay |
||
Product Description
Lightweight Digital Graphic Overlay High Sensitivity Membrane Switch Overlay
Product Specifications
| Attribute | Value |
|---|---|
| Color | Pantone, RAL, CMYK or samples |
| Button type | Embossing metal dome with good tactile |
| Actuation Time | ≤10ms |
| Material | Polyester or Polycarbonate |
| Circuit Thickness | 0.125mm PET |
| Contact Resistance | ≤10Ω |
| Life Cycle | 1 million actuations |
| Size | Custom design based on client drawing or request |
| Shape | Custom design |
| ZIF connector pitch | 1.25MM |
Medical Membrane Switch with Transparent LCD Window
A specialized membrane switch designed for medical and healthcare applications, featuring high sensitivity and durability.
Technical Details
- Overlay material: Polyester or Polycarbonate with various surface finishes
- Embossing options: Pedestal, Rim, Pillow, or Dim embossing for tactile feedback
- Display windows: Printed color or transparent finishes for LCD integration
- Key options: Tactile metal domes or non-tactile printed silver spots
- LED integration: Multiple color options available
- Circuit options: Screen printed silver, copper plated, or FPC cables
- Connector types: ZIF (0.5-1.25mm pitch) or standard 2.54mm pitch
- Shielding: Waterproof gasket seals and EMI/RFI/ESD protection
- Adhesive: 3M double-side mounting glue standard
- Back plate materials: Aluminum, Polycarbonate, Acrylic or PMMA
- Color matching: PMS, RAL, CMYK or RGB specifications
- Standard tolerances: ±0.2MM
Performance Specifications
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke | Non-tactile 0.1-0.5mm, Tactile 0.6-1.5mm | |
| Life Expectancy | Non-tactile >5M, Tactile >1M actuations | |
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10μA to 100mA, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10Ω to 500Ω (size/layout dependent) | |
| Insulation Resistance | 100MΩ at 100V DC | |
| Contact Bounce | ≤5 milliseconds |
Our Services
- 24-hour response to inquiries
- Custom design services (OEM/ODM available)
- Professional English support from experienced staff
- Engineer-designed solutions for unique requirements
- Quality testing and short lead times
- Custom shapes, sizes, colors, and technologies
- Prototype samples and design approval before production

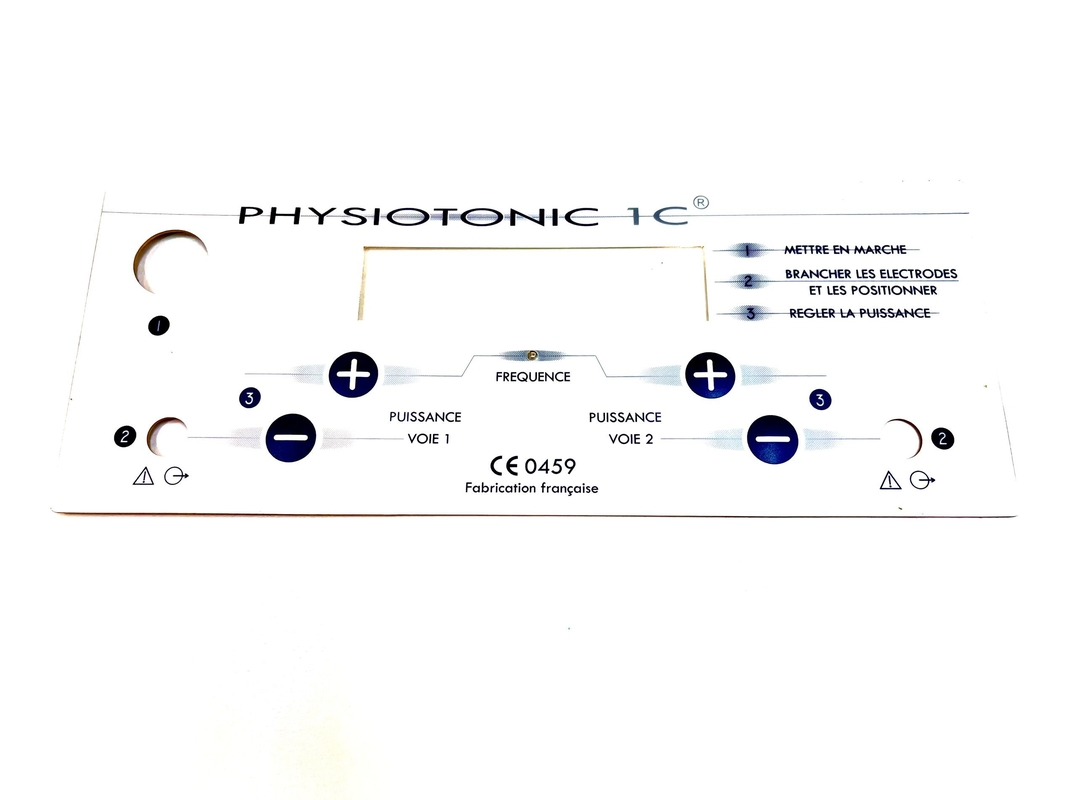

Product Images
