Metal Dome Medical Membrane Switch High Durability For Emergency Remote Controller
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241211-13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 28000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Connector Type: | ZIF Contacts |
| Highlight: | Metal Dome Medical Membrane Switch,High Durability metal dome membrane switch,High Durability Medical Membrane Switch |
||
Product Description
Metal Dome Medical Membrane Switch High Durability For Emergency Remote Controller
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 2.54MM |
| Adhesive | 3M467 adhesive or others |
| Button type | Metal dome |
| Connector type | ZIF contacts |
Product Description
Flexible Circuit 2 Membrane Switch Design For Emergency Remote Controller
Design Process Overview
- Define Requirements: Determine functionality, size and shape based on application needs
- Choose Materials: Select overlay material, adhesive, and circuit material
- Design Layout: Create graphics and optimize button placement
- Electrical Design: Develop circuit schematic and select switch type
- Prototype and Testing: Validate functionality and durability
- Finalize Production: Implement quality control for mass production
Key Components
Overlay Material
Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use
Polycarbonate: Cost-effective with various finishes, suitable for internal/external applications
Embossing Options
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
Technical Specifications
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: -20°C to +80°C
Storage temperature: -40°C to +80°C
Life expectancy: Flat type ≥5,000,000 cycles, Tactile type ≥1,000,000 cycles

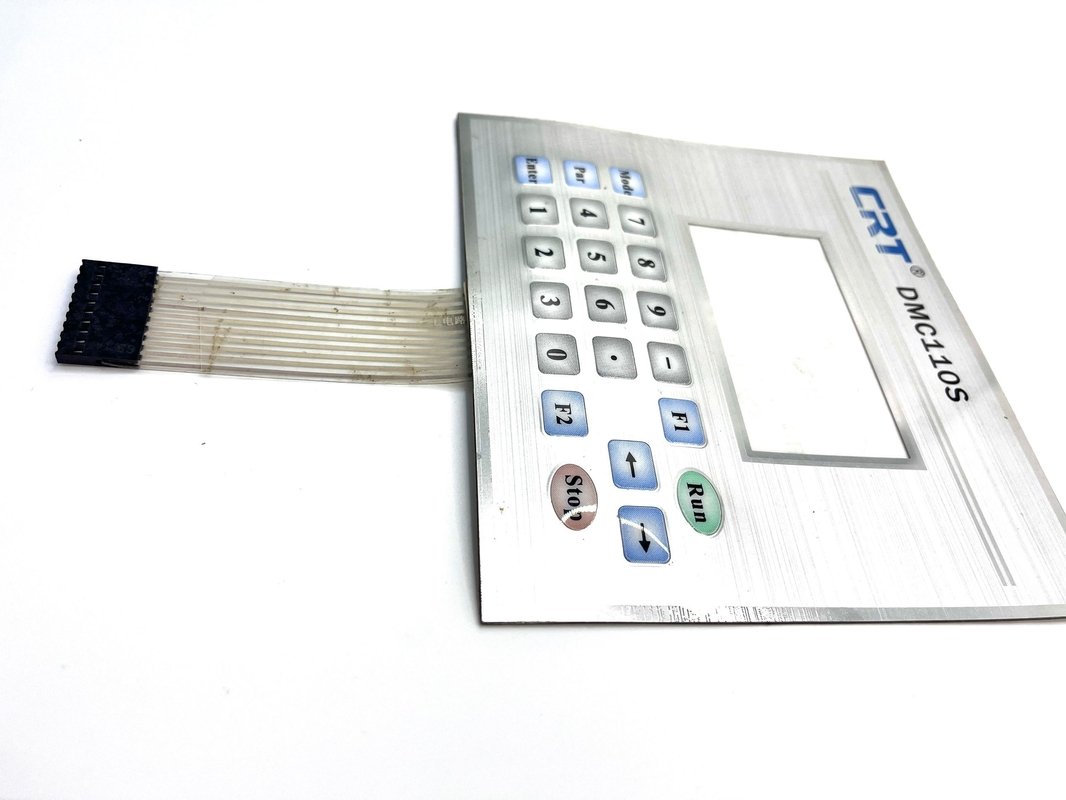

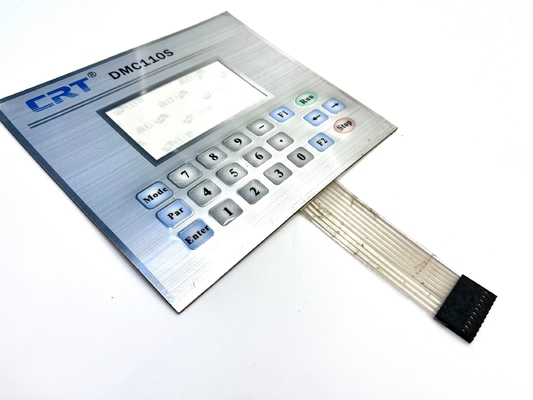

Product Images
Shipping Information
- Express shipping available via FedEx/DHL/UPS/TNT for samples
- Air or sea freight options for bulk orders
- Custom shipping arrangements available
- Delivery Time: 5-6 business days for samples; 8-13 days for bulk orders
Ordering Process
- Submit product specifications or request quotation
- Confirm order details and approve artwork
- Sample lead time: 4-5 business days
- Production lead time: 7-10 business days (depending on quantity)
