Screen Printing Medical Membrane Switch Keyboard Compact With Transparent LCD Window
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida Membrane Switches |
| Certification: | ISO9001,SGS,ROHS,REACH ,UL |
| Model Number: | 20241104-14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags ,Custom design Carton with foam |
| Delivery Time: | 5-7 days for sample lead time ;10-14 days for batch goods delivery time |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100000+pcs+a month |
|
Detail Information |
|||
| Color: | Pantone ,RAL Or CMYK Or Samples | Material: | Polyester Or Polycarbonate |
|---|---|---|---|
| Contact Resistance: | ≤10Ω | Life Cycle: | 1 Million Actuations |
| Size: | Custom Design Based On Client Drawing Or Request | Shpe: | Custom Design |
| Storage Temperature: | -40℃ To 70℃ | Max Current: | 100MA |
| Thickness: | Customized | Appition: | Healthcare Devices |
| Type: | Meet Customer's Demand | ||
| Highlight: | Compact Medical Membrane Switch Keyboard,Compact custom membrane switch panel,Screen Printing Medical Membrane Switch Keyboard |
||
Product Description
Screen Printing Medical Membrane Switch Keyboard Compact With Transparent LCD Window
Product Specifications
| Attribute | Value |
|---|---|
| Color | Pantone, RAL, CMYK or samples |
| Material | Polyester or Polycarbonate |
| Contact Resistance | ≤10Ω |
| Life Cycle | 1 million actuations |
| Size | Custom design based on client drawing or request |
| Shape | Custom design |
| Storage Temperature | -40℃ to 70℃ |
| Max Current | 100MA |
| Thickness | Customized |
| Application | Healthcare devices |
| Type | Meet Customer's Demand |
Key Features
- Compact Design: Membrane switch keyboards are thinner and lighter than traditional mechanical keyboards.
- Sealed and Durable: Protection against dust and moisture for harsh environments.
- Customizable: Graphic overlay can be tailored for specific labels and layouts.
- Quiet Operation: Provides a quieter typing experience compared to mechanical switches.
Applications
- Consumer Electronics: Remote controls, appliances, and medical devices.
- Industrial Equipment: Control panels and machinery.
- Point of Sale Systems: Cash registers and kiosks.
Advantages and Disadvantages
Advantages:
- Cost-effective for large-scale manufacturing
- Lightweight and space-efficient
- Easy to clean due to smooth surface
Disadvantages:
- Less tactile feedback compared to mechanical keyboards
- Shorter lifespan under heavy use
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm | |
| Switch Stroke (Tactile) | 0.6 to 1.5mm | |
| Life Expectancy (Non-tactile) | >5 million actuations | |
| Life Expectancy (Tactile) | >1 million actuations | |
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds |
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM welcome)
- Professional English support from experienced staff
- Unique solutions from trained engineers
- High quality products with testing and short lead times
- Custom shapes, sizes, colors, and technologies
- Samples and artwork approval before mass production

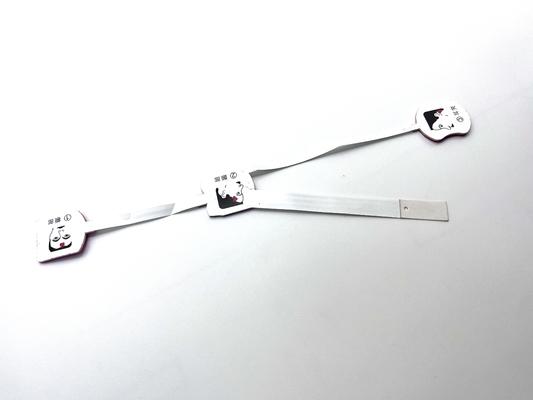

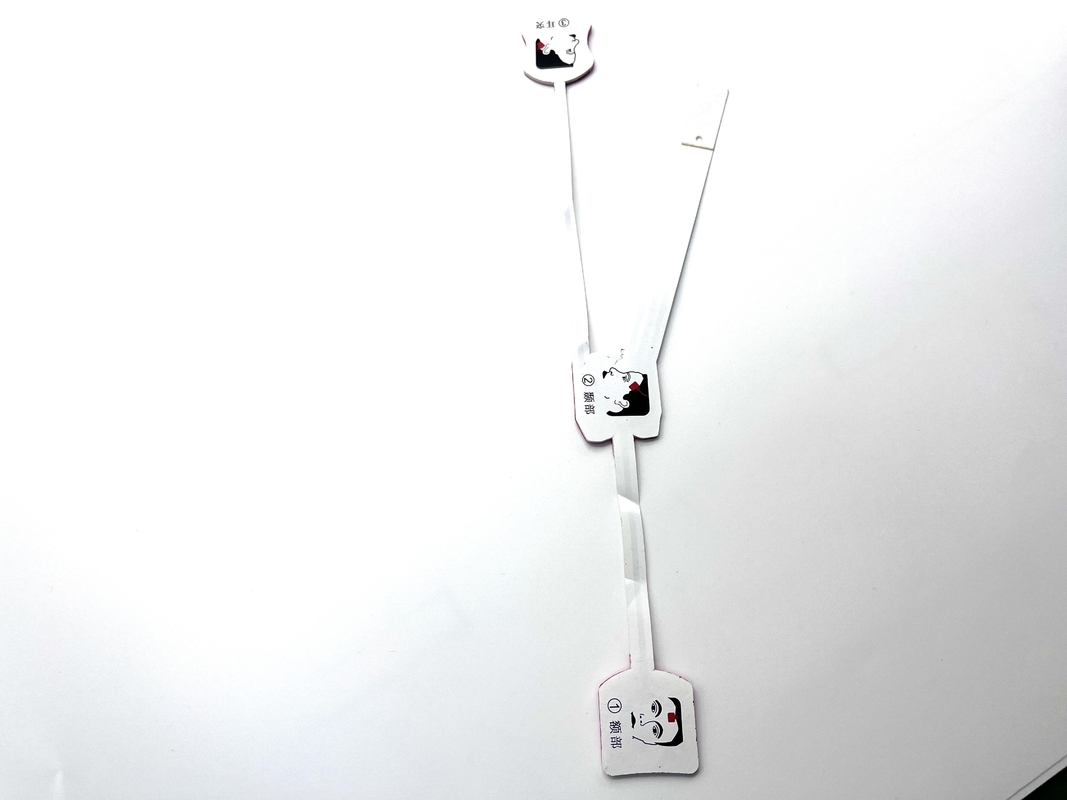

Product Images
