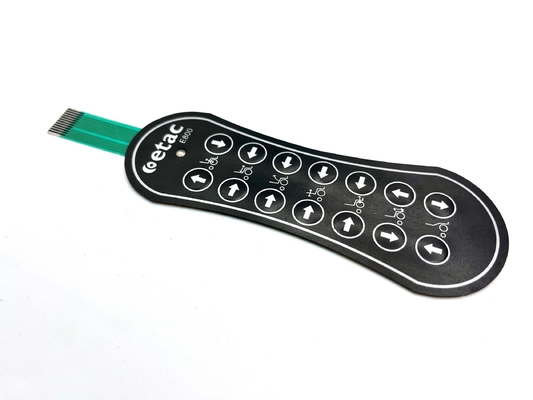

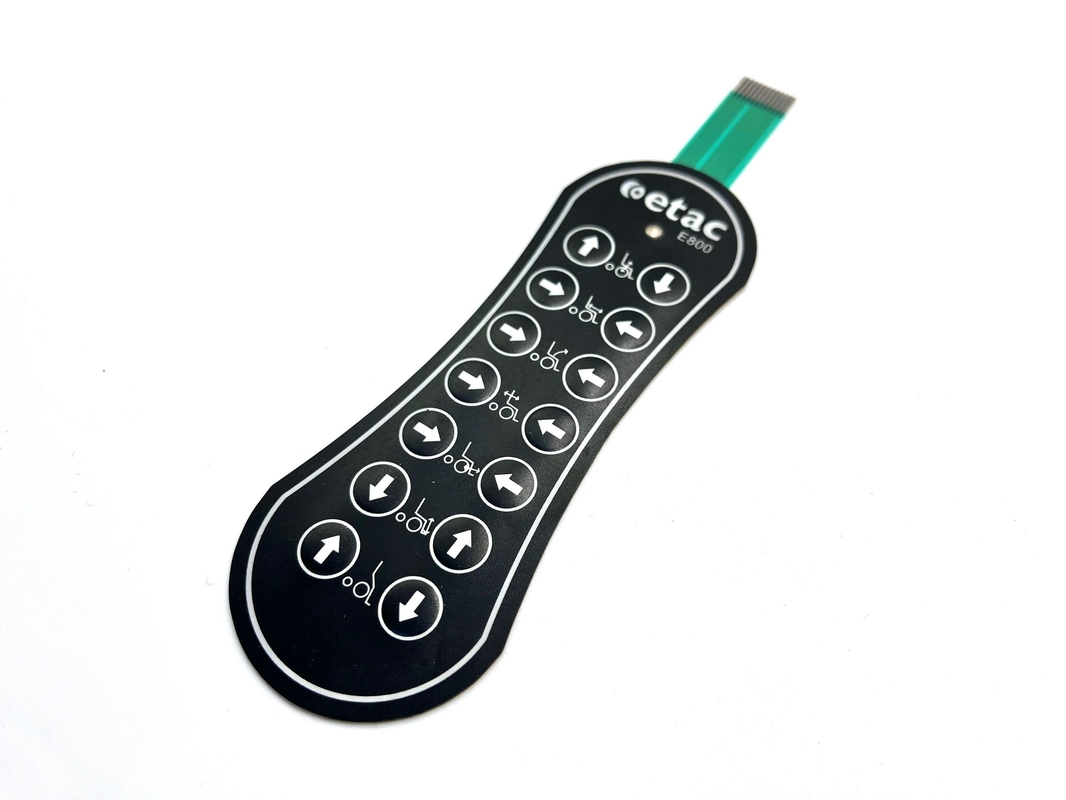

Electrical Push Button Membrane Switch Keypad Membrane Switch Professional With Flexible Cable
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241202-19 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 28000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM Or Others | Adhesive: | 3M Adheisve Or Other Reuqest |
| Printing Method: | Screen Printing,digital Printing | Circuit Option: | FFC Copper |
| Highlight: | Electrical Push Button Membrane Switch,professional Keypad Membrane Switch,professional Push Button Membrane Switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM or others |
| Adhesive | 3M adhesive or other request |
| Printing Method | Screen printing, digital printing |
| Circuit Option | FFC copper |
A tactile button switch provides noticeable feedback when pressed. Key features include:
- Mechanical Feel: Tactile switches have a "click" or bump that confirms button press
- Applications: Keyboards, remote controls, and electronic devices requiring user feedback
- Variety of Sizes: Available in multiple sizes and actuation forces for customization
- Durability: Designed for high durability with lifespan measured in thousands/millions of cycles
- Electrical Characteristics: Available in various voltage and current ratings for different circuits
Overlay Material: Polyester or Polycarbonate with distinct properties for different applications
Embossing: Graphic overlay can be embossed to insert metal stainless steel domes for tactile feedback
Windows/LCD: Available in printed colors or transparent finishes for display functions
Keys: Tactile keys with metal/poly domes or non-tactile printed silver spot options
LEDs: Miniature LEDs available in multiple colors including white, green, red, blue, yellow, orange
Cables: Screen printing conductive silver cable, copper plated cable/Polyimide or FPC, PCB board
Connectors: Zero insertion force (ZIF), female connector, or male connector options
Shielding: Gasket seal/waterproof or EMI/RFI/ESD shielding options available
Standard Tolerances: +/-0.2MM
| Property | Value |
|---|---|
| Operating voltage | ≤ 50VDC |
| Operating Current | ≤ 100mA |
| Contact resistance | 0.5 ~ 10Ω |
| Insulation resistance | ≥ 100MΩ (100VDC) |
| Substrates withstand voltage | 2kDVC |
| Rebound time | ≤ 6ms |
| Property | Value |
|---|---|
| Service life | > 1 million times |
| Closed displacement | 0.1 ~ 0.4mm (tactile) 0.4 ~ 1.0mm |
| Standard force | 15 ~ 750g force |
| Property | Value |
|---|---|
| Operating Temperature | 20°C ~ +70°C |
| Storage temperature | -40°C to +85°C at 95% ± 5% humidity |
| Gas pressure | 86 ~ 106KPa |
A: To provide an exact price, we need material specifications, thickness, size, adhesive requirements, printing colors, contact details, quantity, size and shape with artwork files.
A: We typically pack goods in neutral white boxes and brown cartons. Branded packaging is available with proper authorization.
A: 30% deposit via T/T, with 70% balance paid before delivery. We provide product and package photos before final payment.
A: Samples are completed in 5 days after drawing confirmation. Mass production takes 10 days after sample approval. Exact timing depends on order specifics.
A: Yes, we can produce based on your samples or technical drawings, including creating necessary molds and fixtures.
A: Samples are available when we have stock, with customers covering sample and courier costs.
A: Yes, we perform 100% testing before delivery.
