Flexible Medical Membrane Switch 0.5MM Pitch Easy Cleaning For Emergency Remote Controller
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241114-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 130000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 0.5MM | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Circuit Options: | Silver Flex Circuit |
| Highlight: | 0.5MM Pitch Medical Membrane Switch,0.5MM Pitch membrane touch switch,Easy Cleaning Medical Membrane Switch |
||
Product Description
Flexible Medical Membrane Switch for Emergency Remote Controller
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 0.5MM |
| Adhesive | 3M467 adhesive or others |
| Button type | metal dome |
| Circuit options | silver flex circuit |
Product Description
Flexible Circuit 2 Membrane Switch Keypad designed for emergency remote controllers, offering superior performance in demanding environments.
Applications
- Medical Devices: Equipment where hygiene and ease of use are critical.
- Consumer Electronics: Remote controls, microwaves, and other household items.
- Industrial Equipment: Control panels in manufacturing and automation systems.
Key Features
- Design Flexibility: Custom-designed in various shapes, sizes, and colors for unique branding.
- Construction: Made of polyester or polycarbonate with printed graphics and optional tactile feedback.
- Low Profile: Thin design for sleek appearance in modern devices.
- Sealing: Protection against dust and moisture for harsh environments.
- Cost-effective: More economical than traditional mechanical switches.
Product Benefits
- Easy Cleaning: Smooth surface ideal for medical and food industry applications.
- Lightweight: Perfect for portable devices.
- Durability: Resistant to wear and tear with no moving parts.
- Customization: Graphics and layouts tailored to specific applications.
Technical Specifications
Overlay Material: Polyester or Polycarbonate options
Embossing Options: Pedestal, Rim, Pillow, Dim embossing
Windows/LCD: Printed colors or transparent finishes
Keys: Tactile (metal/poly domes) or Non-tactile options
LEDs: Multiple color options available
Cables: Screen printed silver, copper plated, or PCB options
Connectors: ZIF, Female, Male types available
Shielding: Gasket seal/Waterproof or EMI/RFI/ESD options
Standard Tolerances: +/-0.2MM
Performance Specifications
Operating Temperature: -20°C to +80°C
Storage Temperature: -40°C to +80°C
Life Expectancy: Flat type ≥5,000,000 cycles, Tactile type ≥1,000,000 cycles
Switch Stroke: 0.1 to 0.6mm
Operating Voltage: 35V DC
Operating Current: 100mA 1W
Contact Resistance: < 100 Ohms
Operating Humidity: Up to 95% RH

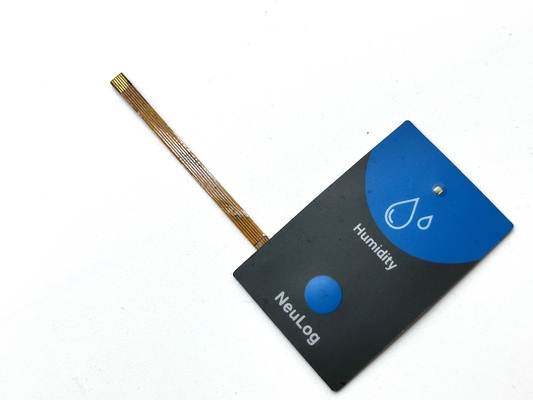

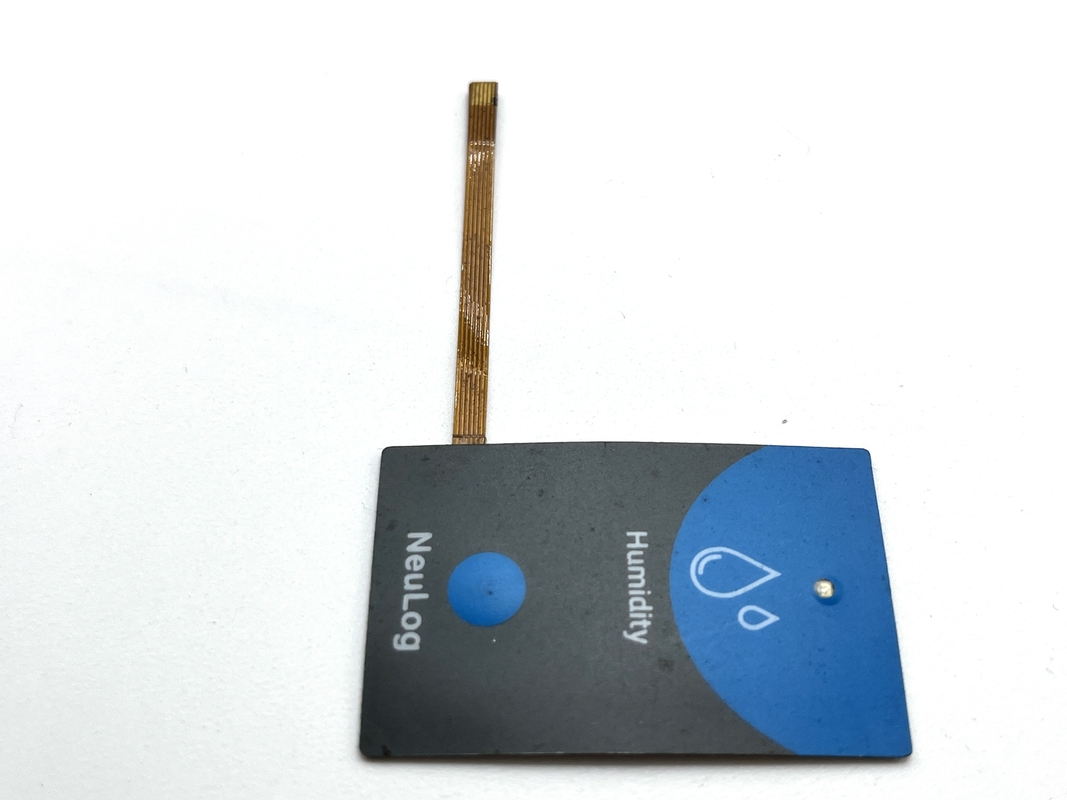

Product Images
Shipping Information
- Sample Delivery: 5-6 business days
- Batch Goods Delivery: 8-13 days
- Shipping Methods: Air, Sea (FCL), FedEx/DHL/UPS/TNT for samples
- Customer-specified freight forwarders accepted
Ordering Process
- Submit product drawings, specifications, or photos
- Confirm order details and approve artwork
- Artwork confirmation within 3 days before sampling
- Sample lead time: 4-5 business days
- Mass production: Typically 7-10 business days (varies by quantity)
