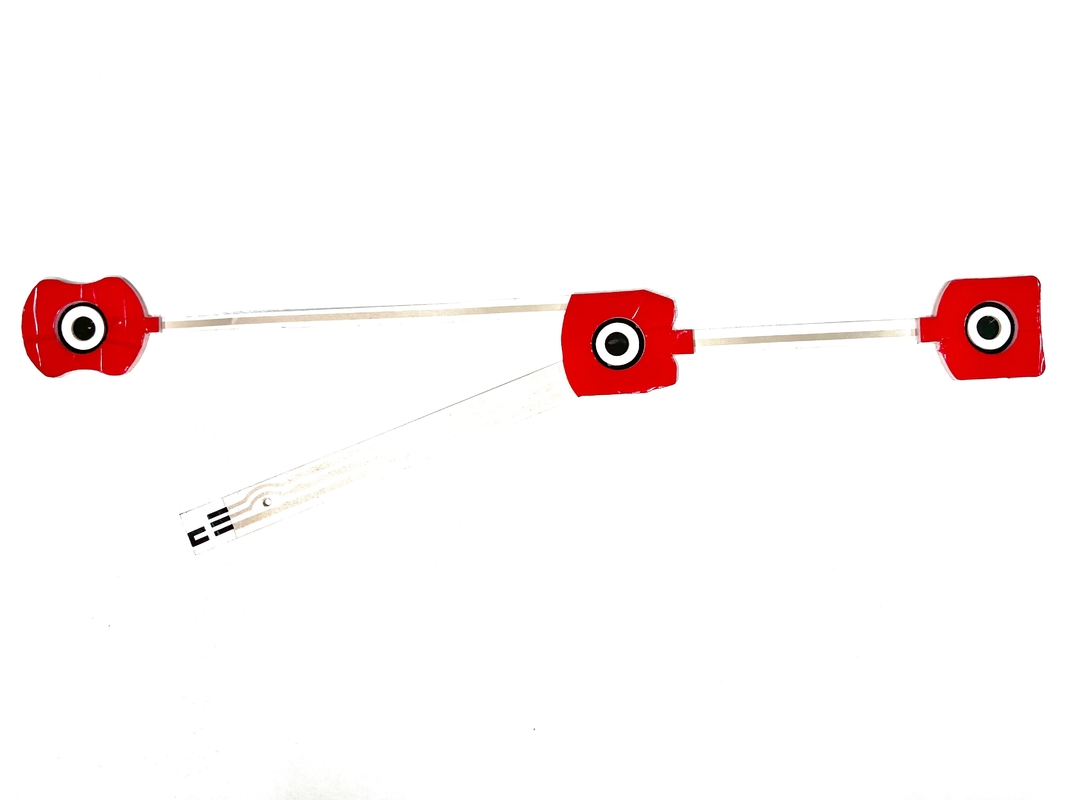

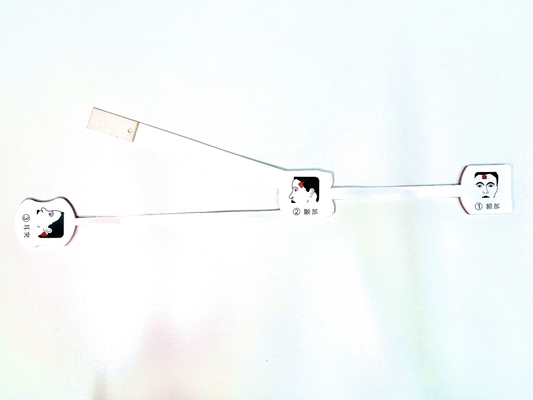

Professional Medical Membrane Switch High Performance 1.0MM Pitch With Flexible Cable
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0613-009 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 30000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Flat Dome | Printing Method: | Screen Printing,digital Printing |
| Connector Type: | ZIF Connector , Female Or Male Connector | Circuit Option: | FFC Copper |
| Highlight: | 1.0MM Pitch Medical Membrane Switch,1.0MM Pitch flexible membrane keypad,High Performance Medical Membrane Switch |
||
Product Description
Professional Medical Membrane Switch High Performance With Flexible Cable
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Flat dome |
| Printing Method | Screen printing, digital printing |
| Connector type | ZIF connector, female or male connector |
| Circuit option | FFC copper |
Medical Membrane Switch Features
- Sterility and Cleanliness: Easy to clean and sterilize to prevent cross-contamination
- Reliability: Mission-critical interfaces that withstand frequent use
- Durability: Maintains functionality after exposure to harsh cleaning agents
- Tactile Feedback: Intuitive and responsive for medical personnel
Construction Details
- Specialized Materials: Silicone rubber, polyester, and polycarbonate resistant to chemicals
- Sealed Design: Prevents ingress of liquids and dust
- Antimicrobial Coatings: Optional surface treatments to inhibit bacteria growth
Applications
- Medical Equipment: Patient monitors, infusion pumps, surgical equipment
- Hospital Environments: Nurse call stations, medication dispensing systems
- Home Healthcare: Blood pressure monitors, glucose meters
Technical Specifications
Electrical Properties
| Operating voltage | ≤ 50VDC |
| Operating Current | ≤ 100mA |
| Contact resistance | 0.5 ~ 10Ω |
| Insulation resistance | ≥ 100MΩ (100VDC) |
| The substrates withstand voltage | 2kDVC |
| Rebound time | ≤ 6ms |
Mechanical Behavior
| Reliability of service life | > 1 million times |
| Closed displacement | 0.1 ~ 0.4mm (tactile) 0.4 ~ 1.0mm |
| Kin standard for force | 15 ~ 750g force |
Environmental Performance
| Operating Temperature | 20°C ~ +70°C |
| Storage temperature | -40°C to +85°C temperature 95% ± 5% |
| Large gas pressure | 86 ~ 106KPa |
Frequently Asked Questions
Q1. What information will I have to provide for price?
A: To offer the exact price, we need material specifications, thickness, size, adhesive requirements, printing colors, contact details, quantity required, size and shape with artwork files.
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging is available with proper authorization.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
Q4. How about your delivery time?
A: Samples are completed in 5 days after drawing confirmation. Mass production takes 10 days after sample approval. Exact timing depends on order specifics.
Q5. Can you produce according to the samples?
A: Yes, we can produce based on your samples or technical drawings, including creating necessary molds and fixtures.
Q6. What is your sample policy?
A: Samples are available from stock, with customers covering sample and courier costs.
Q7. Do you test all your goods before delivery?
A: Yes, we perform 100% testing before delivery.
Q8: How do you make our business long-term and good relationship?
- We maintain good quality and competitive pricing
- We treat every customer with respect and sincerity
Want to Know more details about this product
