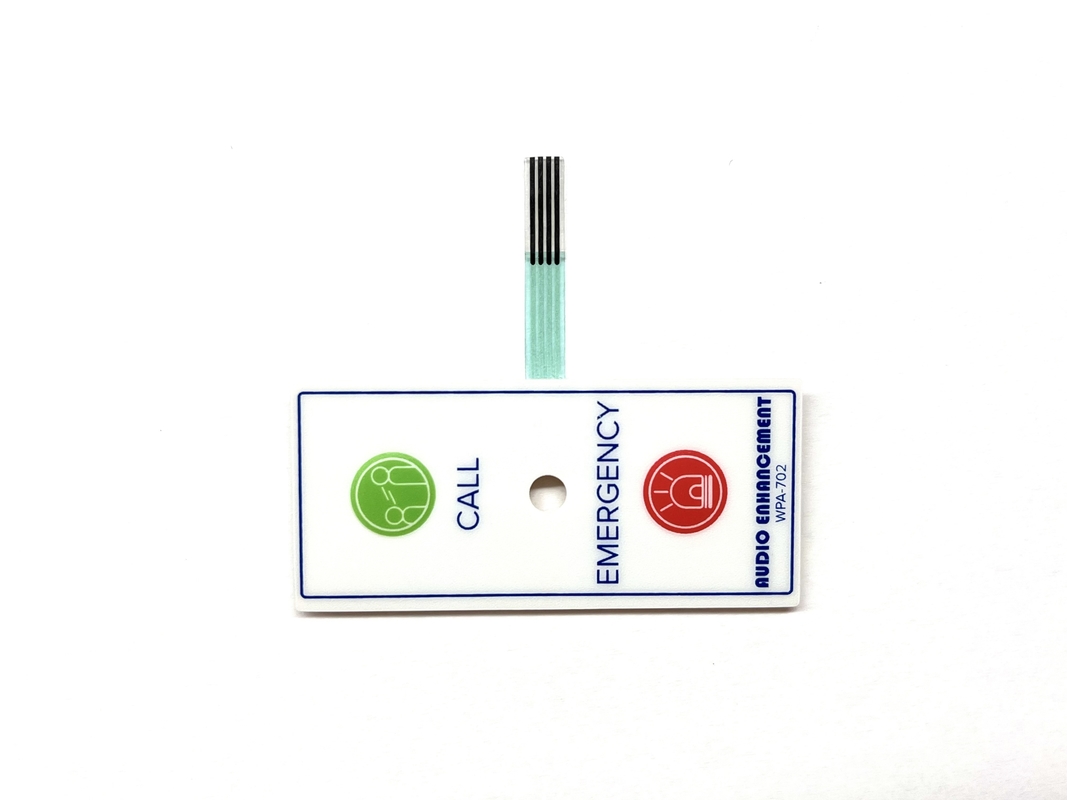

Long Lasting 2 Button Membrane Switch Environmental Resistant For Emergency Remote Controller
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 220-017 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 70000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 1.25MM , | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Connector Type: | ZIF Contacts |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit |
| Highlight: | Long Lasting 2 Button Membrane Switch,Long Lasting custom membrane switch panel,Environmental Resistant 2 Button Membrane Switch |
||
Product Description
Long Lasting 2 Button Membrane Switch Environmental Resistant For Emergency Remote Controller
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 1.25MM |
| Adhesive | 3M467 adhesive or others |
| Button type | Metal dome |
| Connector type | ZIF contacts |
| PN | Membrane switch, Membrane keypad, keyboard, overlay |
| Circuit options | Silver flex circuit |
Product Overview
This EMERGENCY Remote Controller membrane overlay switch is designed for critical emergency control and shutdown applications, featuring rugged construction and reliable operation in demanding environments.
Key Features
- Durable Overlay Design: Protective overlay made of rugged materials with cutouts for membrane switch buttons
- Emergency Functionality: Clearly labeled with emergency graphics for immediate recognition
- Tactile Feedback: Distinct "click" response confirms emergency action activation
- Environmental Resistance: Withstands moisture, dust, chemicals, and vibrations
- Customizable: Available in various sizes, shapes, and configurations
Technical Specifications
Operating Voltage: 35V DC
Operating Current: 100mA 1W
Contact Resistance: < 100 Ohms
Open Circuit Resistance: ≥ 10MΩ at 100V
Operating Temperature: -20°C to +80°C
Storage Temperature: -40°C to +80°C
Life Expectancy: Flat type ≥5,000,000 cycles, Tactile type ≥1,000,000 cycles
Switch Stroke: 0.1 to 0.6mm
Actuation Force: 20 to 45g
Operating Humidity: Up to 95% RH
Material Options
Overlay Materials:
- Polyester: Chemical resistant, durable, suitable for internal/external use
- Polycarbonate: Cost-effective, wide range of finishes, suitable for internal/external use
Product Images
Shipping Information
- Express shipping available (FedEx/DHL/UPS/TNT) for samples
- Air or Sea freight options for bulk orders
- Customer-specified freight forwarders accepted
- Delivery Time: 5-6 business days for samples; 8-13 days for bulk orders
Ordering Process
- Submit product specifications, drawings, or photos
- Confirm order details and approve artwork
- Receive sample (4-5 business days)
- Mass production (7-10 business days, depending on quantity)
