LED Backlit Membrane Switch Panel Membrane Panel Switch Versatile 1.25MM Pitch With Errows
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0613-006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 9500 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome, | Application: | Industrial Machinery Or Other Custom Design |
| Printing Method: | Screen Printing,digital Printing | Connector Type: | ZIF Connector , Female Or Male Connector |
| LED Type: | 0805,0603 | LED Color: | Red ,blue ,white Or Other Custom Design |
| Highlight: | 1.25MM Pitch Backlit Membrane Switch Panel,1.25MM Pitch Membrane Panel Switch,Versatile Backlit Membrane Switch Panel |
||
Product Description
LED Backlit Membrane Switch Panel
Versatile membrane panel switch with LED backlighting and arrow indicators, designed for industrial applications.
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester, Polycarbonate, Silicone or custom materials |
| Color | Pantone, RAL, CMYK, RGB or custom color matching |
| Pitch of Connect | 0.3mm, 0.5mm, 1.0mm, 1.25mm, 2.54mm |
| Adhesive | 3M adhesive or custom options |
| Button type | Metal dome |
| Application | Industrial machinery or custom designs |
| Printing Method | Screen printing, digital printing |
| Connector type | ZIF connector, female or male connector |
| LED type | 0805, 0603 |
| LED color | Red, blue, white or custom colors |
Product Features
LED Embedded Backlight Matrix FFC Keypad Membrane
- LED Integration: Miniature LEDs embedded in PCB layer for backlit or edge-lit illumination
- Tactile Feedback: Metal domes provide positive click sensation for user confirmation
- Customization: Fully customizable size, shape, graphics and lighting effects
- Durability: Long lifespan design with robust membrane construction
Key Applications
- Industrial equipment control panels
- Medical device interfaces
- Home appliance keypads
- Automotive dashboards
- Consumer electronics
- Custom input solutions
Technical Specifications
Overlay Material:
Polyester: Chemical resistant, durable, suitable for internal/external use
Polycarbonate: Cost-effective, various finishes, suitable for internal/external use
Embossing Options:
Pedestal, Rim, Pillow, or Dim embossing for tactile feedback
Display Windows:
Colored printed windows or transparent finishes for LCD displays
Key Types:
Tactile (metal/poly domes) or Non-tactile (printed silver spot)
LED Options:
Miniature LEDs in white, green, red, blue, yellow, orange or custom colors
Cable Options:
Screen printed conductive silver, copper plated, polyimide FPC, or PCB board
Connectors:
ZIF (0.3-1.25mm pitch), Female (2.54mm pitch), or Male connectors
Shielding:
Gasket seal for waterproofing or EMI/RFI/ESD shielding options
Standard Tolerances:
±0.2mm

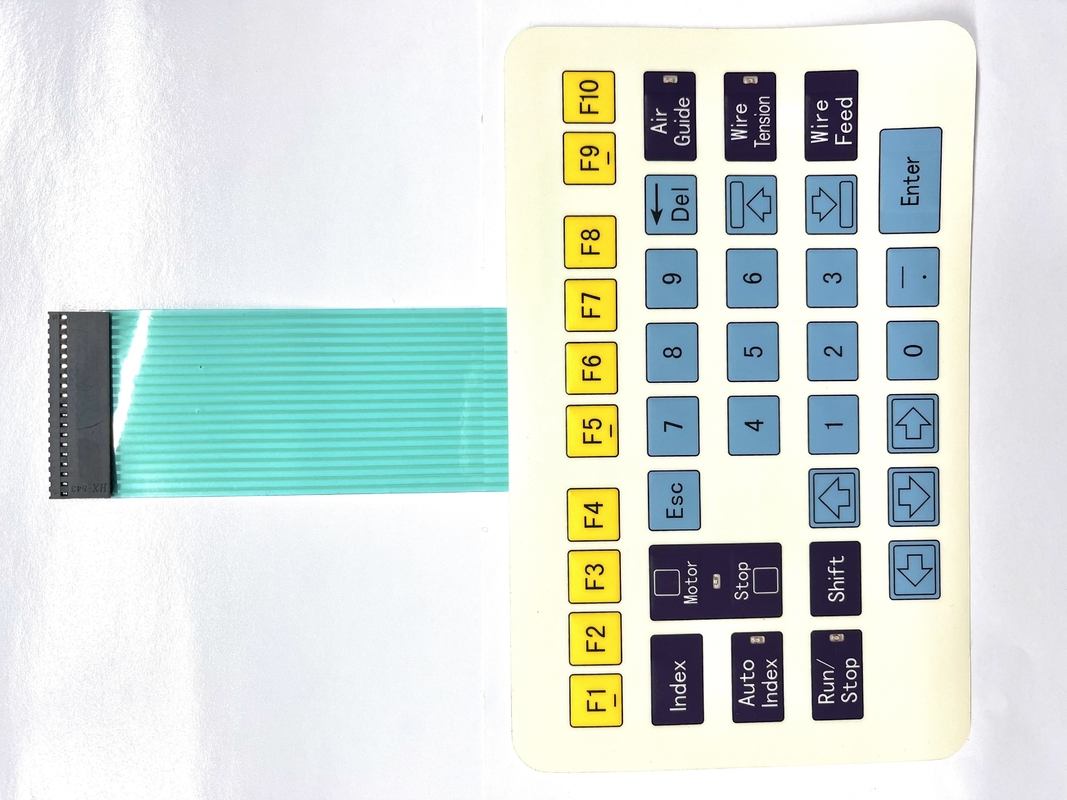

Product Images
Frequently Asked Questions
Q1. What information is needed for pricing?
A: Please provide material specifications, thickness, size, adhesive requirements, printing colors, contact details, quantity, size/shape, and artwork files.
Q2. What are your packing terms?
A: Standard packing is neutral white boxes/brown cartons. Branded packaging available with authorization.
Q3. What are your payment terms?
A: 30% deposit by T/T, 70% balance before delivery with product photos provided.
Q4. What is your delivery time?
A: Samples in 5 days after drawing confirmation, mass production in 10 days after sample approval.
Q5. Can you produce according to samples?
A: Yes, we can produce from samples or technical drawings, including mold creation.
Q6. What is your sample policy?
A: Samples available from stock with payment of sample and courier costs.
Q7. Do you test all goods before delivery?
A: Yes, we perform 100% testing before shipment.
Q8. How do you maintain long-term relationships?
A: We ensure quality and competitive pricing while treating every customer as a valued partner.
