Waterproof LED Membrane Switch Industrial Membrane Switch For Laser Instrument
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 016-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 11000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome | Application: | Laser Instrument Or Custom Design |
| Printing Method: | Screen Printing,digital Printing | Connector Type: | ZIF Connector , Female Or Male Connector |
| Embossing Shape: | Rim Embossing ,Pollow Embosing | LCD Window: | Clear ,Tinted ,Punching Or PMMA , |
| Highlight: | Waterproof LED Membrane Switch,Waterproof industrial membrane switch,Laser Instrument LED Membrane Switch |
||
Product Description
Waterproof LED Membrane Switch for Laser Instruments
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester, Polycarbonate, Silicone or custom materials |
| Color | Pantone, RAL, CMYK, RGB or custom samples |
| Pitch of Connect | 0.3mm, 0.5mm, 1.0mm, 1.25mm, 2.54mm |
| Adhesive | 3M adhesive or custom requirements |
| Button Type | Poly dome |
| Application | Laser instruments or custom designs |
| Printing Method | Screen printing, digital printing |
| Connector Type | ZIF connector, female or male connector |
| Embossing Shape | Rim embossing, Pillow embossing |
| LCD Window | Clear, Tinted, Punching or PMMA |
Waterproof LED Membrane Switch Features
Waterproof Construction
- Specialized sealing layers made of silicone rubber or polyurethane
- Gaskets and sealants around button cutouts for waterproof protection
- Typically rated to IP65 or higher for protection against water and dust
LED Illumination
- Integrated LED lights under button legends or around edges
- Backlighting for improved visibility in low-light conditions
- Available in single-color or multi-color options
Key Benefits
- Protection from water, moisture, and dust for harsh environments
- Enhanced visibility and usability with LED backlighting
- Durable construction using robust materials for long service life
Technical Specifications
Overlay Material
Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use
Polycarbonate: Cost-effective with wide range of surface finishes, suitable for internal/external use
Polycarbonate: Cost-effective with wide range of surface finishes, suitable for internal/external use
Embossing Options
Pedestal embossing, Rim embossing, Pillow embossing, Dim embossing
Windows/LCD Options
Printed color windows or transparent finishes
Key Types
Tactile keys with metal/poly domes or non-tactile printed silver spots
LED Options
Miniature LEDs available in white, green, red, blue, yellow, orange and custom colors
Additional Features
EL lighting, sensors, inductors, various cable types (silver, copper, FPC), multiple connector options
Shielding & Protection
Gasket seal for waterproofing, EMI/RFI/ESD shielding with aluminum foil or ITO polyester
Standard Tolerances
+/-0.2mm
Product Structure

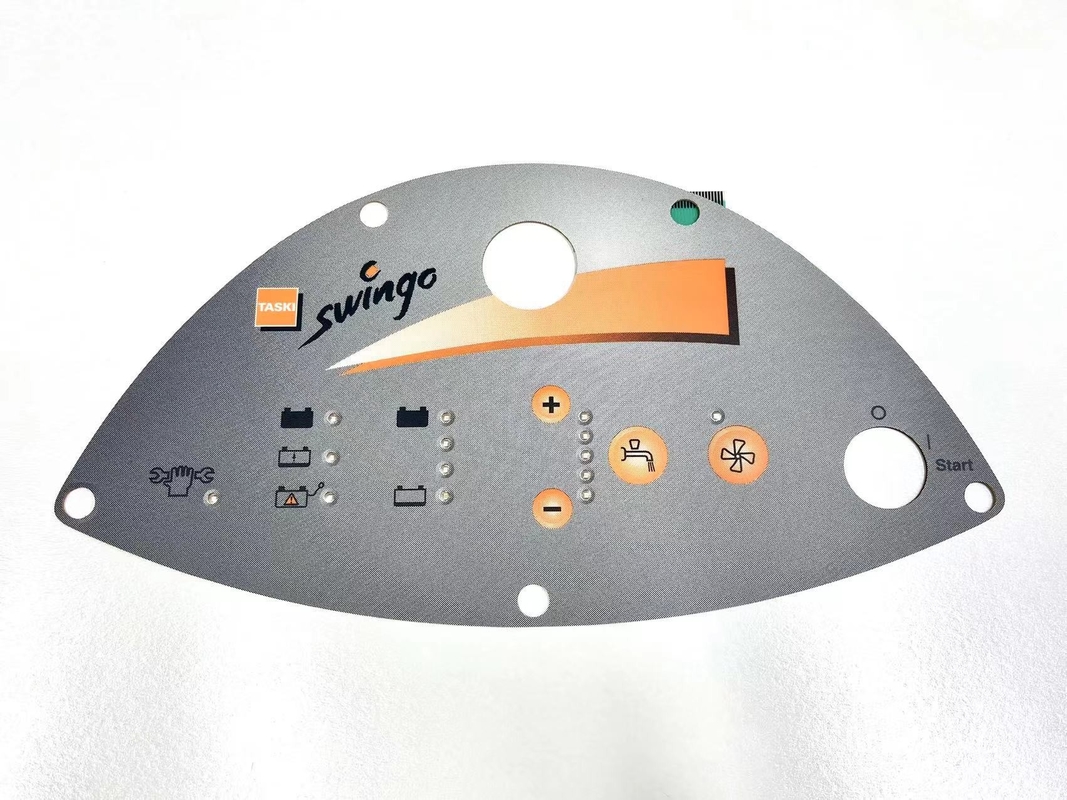

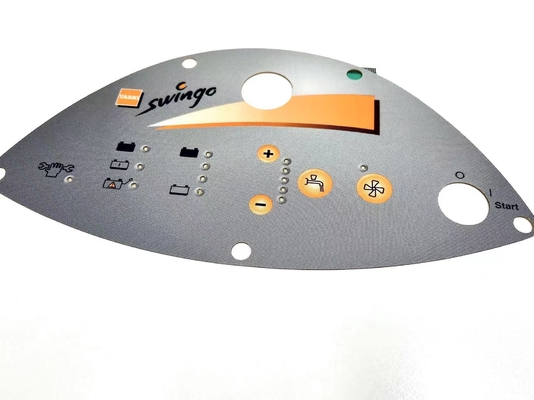

Product Images
Frequently Asked Questions
Q1. What information is needed for pricing?
To provide an exact price, please specify material, thickness, size, adhesive requirements, printing colors, contact details, quantity, size and shape with artwork files.
Q2. What are your packing terms?
Standard packing includes neutral white boxes and brown cartons. Branded packaging available with proper authorization.
Q3. What are your payment terms?
30% deposit via T/T, with 70% balance paid before delivery. Product photos provided before final payment.
Q4. What is your delivery time?
Samples completed in 5 days after drawing confirmation. Mass production completed in 10 days after sample approval. Exact timing depends on order specifics.
Q5. Can you produce according to samples?
Yes, we can produce based on your samples or technical drawings, including creating necessary molds and fixtures.
Q6. What is your sample policy?
Samples available from stock, with customer responsible for sample costs and courier fees.
Q7. Do you test all goods before delivery?
Yes, we perform 100% testing before shipment.
Q8. How do you maintain long-term business relationships?
- Maintain high quality and competitive pricing
- Treat every customer with respect and sincerity
Want to Know more details about this product
