Half Tone Color Printing Membrane Touch Panel Professional 0603 LED Custom Membrane Switches
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 072-009 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Texture F200 | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM | Adhesive: | 3M Adheisve |
| Button Type: | Tactile Buttons | Printing Method: | Half-tone Screen Printing |
| Connector Type: | ZIF Connector , F | Embossing Shape: | Rim Embossing |
| LCD Window: | Clear ,Tinted ,Punching Or PMMA , | LED Color: | Red ,Yellow ,Green Or Custom Design |
| LED Type: | 0603 Or 0805 | LED Brand: | Everlight |
| Structure: | 8 Layer | ||
| Highlight: | Professional Membrane Touch Panel,Professional Custom Membrane Switches,OEM Membrane Touch Panel |
||
Product Description
Half Tone Color Printing Membrane Touch Panel Professional OEM Custom Membrane Switches
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester Texture F200 |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM |
| Adhesive | 3M adhesive |
| Button type | Tactile buttons |
| Printing Method | Half-tone screen printing |
| Connector type | ZIF connector |
| Embossing shape | Rim embossing |
| LCD window | Clear, Tinted, Punching or PMMA |
| LED color | Red, Yellow, Green or custom design |
| LED type | 0603 or 0805 |
| LED brand | Everlight |
| Structure | 8 layer |
About Half-Tone Color Printing
Half-tone color printing is a professional printing technique that uses tiny dots of varying sizes to create continuous-tone images. This method allows for high-quality color reproduction of photographs and complex graphics on printed materials.
How Half-Tone Printing Works
The original image is converted into a pattern of microscopic dots using a screen or raster. By precisely controlling the size and spacing of these dots, the printer can simulate a full range of colors and tones. Smaller dots create lighter areas, while larger dots produce darker tones.
Key Advantages
- Cost-effective solution for high-quality color printing
- Excellent resolution and detail reproduction
- Compatible with various printing presses and substrates
- Industry-standard method for commercial printing
Technical Specifications
- Material: Polyester or Polycarbonate options with different properties
- Embossing: Multiple options including rim, pillow, and dim embossing
- Windows: Customizable display windows with various finishes
- Keys/Buttons: Tactile or non-tactile options available
- Embedded LEDs: Multiple color options with miniature LED components
- Connectors: ZIF, female, or male connector types
- Shielding: EMI/RFI/ESD protection options
- Adhesive: 3M double-sided tape standard
- Backplate: Aluminum, polycarbonate or acrylic options

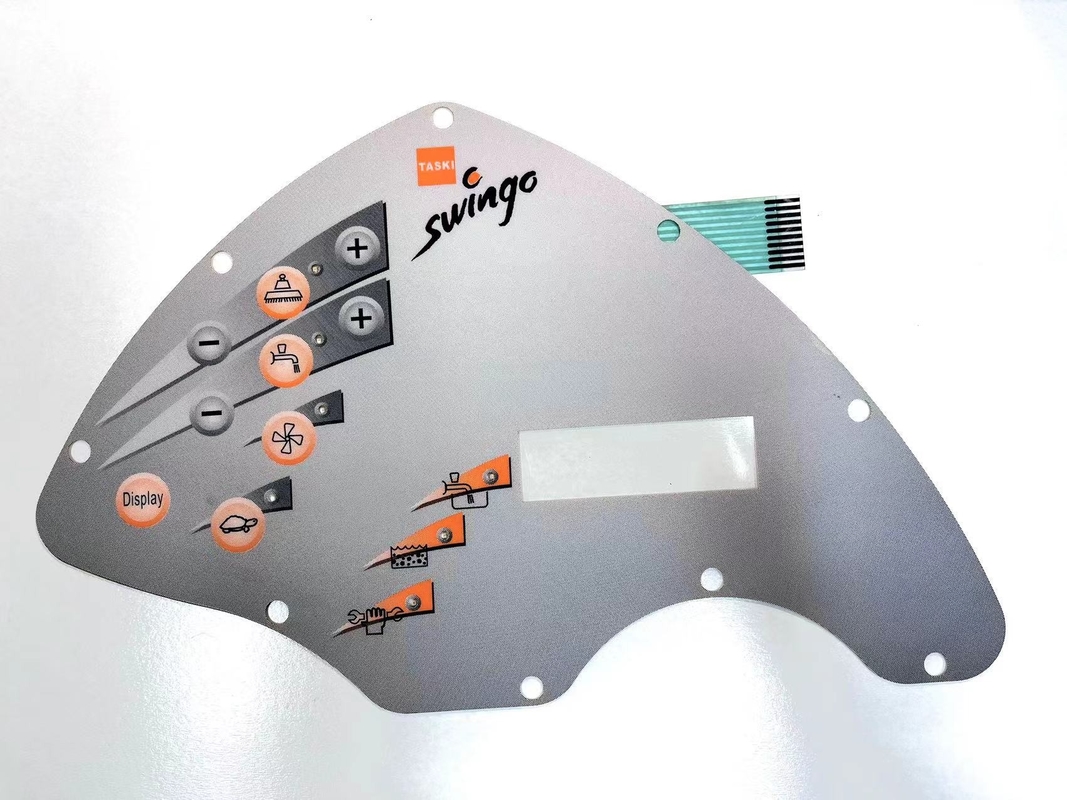

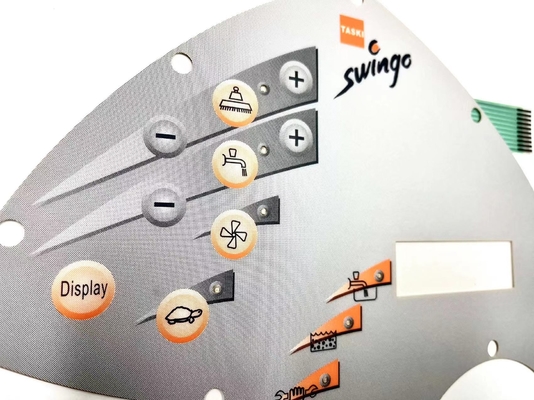

Product Images
Frequently Asked Questions
Q1. What information will I have to provide for price?
To provide an accurate quote, we require details about material, thickness, size, adhesive requirements, number of printing colors, contact details, quantity, size and shape specifications, and artwork files.
Q2. What is your terms of packing?
Standard packaging includes neutral white boxes and brown cartons. Branded packaging is available with proper authorization.
Q3. What is your terms of payment?
30% deposit via T/T with 70% balance paid before delivery. Product photos will be provided before final payment.
Q4. How about your delivery time?
Samples are completed within 5 days after drawing confirmation. Mass production typically completes within 10 days after sample approval.
Q5. Can you produce according to the samples?
Yes, we can manufacture based on your samples or technical drawings, including creating necessary molds and fixtures.
Q6. What is your sample policy?
Samples are available for in-stock items with payment of sample cost and shipping fees.
Q7. Do you test all your goods before delivery?
Yes, we perform 100% quality testing before shipment.
Q8: How do you make our business long-term and good relationship?
- Maintain high quality standards with competitive pricing
- Treat every customer with respect and sincerity
Want to Know more details about this product
