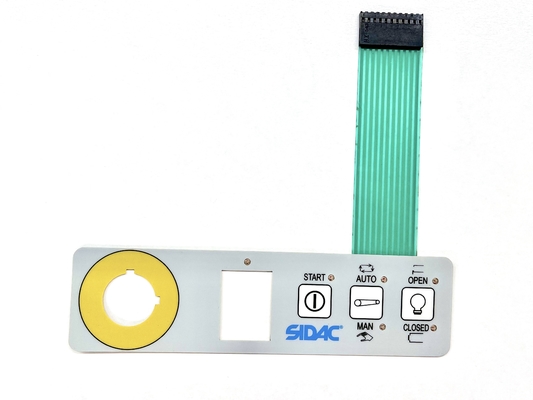

2.54MM Connector LED Membrane Switch Long Lifespan High Performance
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | SIDAC |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 066-030 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 9000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM , | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Falt With Silver Spot | Connector Type: | Female Connector |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit |
| Appition: | Super Market Device | LED Color: | Orange Or Others |
| Highlight: | High Performance LED Membrane Switch,Long Lifespan LED Membrane Switch,Long Lifespan membrane switch module arduino |
||
Product Description
2.54MM Connector LED Membrane Switch Long Lifespan High Performance
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 2.54MM |
| Adhesive | 3M467 adhesive or others |
| Button type | Flat with silver spot |
| Connector type | Female connector |
| PN | Membrane switch, Membrane keypad, keyboard, overlay |
| Circuit options | Silver flex circuit |
| Application | Super Market Device |
| LED color | Orange or others |
Custom Reverse Printing LED Membrane Graphic Switch
About LED Membrane Graphic Switches
Design and Construction
- Combines flat, low-profile membrane keyboard design with LED backlighting
- Features thin, flexible membrane layer with translucent plastic overlay
- LED light sources embedded within membrane for uniform backlighting
Backlighting and Illumination
- Enhances key visibility in low-light conditions
- Customizable colors, patterns, and effects to match device aesthetics
- Provides visual feedback for key activation status
Graphic Design Capabilities
- High degree of customization for overlays and keycaps
- Supports custom graphics, logos, icons, and key legends
- Enables specialized keyboard layouts for specific applications
Durability and Reliability
- Longer lifespan than traditional mechanical keyboards
- Sealed membrane design protects against dust and spills
- LEDs rated for thousands of hours of continuous use
Applications
- Industrial control panels and manufacturing equipment
- Medical devices and healthcare equipment
- Specialized control panels and kiosks
- Gaming peripherals and esports equipment
Technical Details
Materials
Polyester
- Highly versatile for embossing
- Excellent chemical resistance
- Superior durability for internal and external use
Polycarbonate
- Wide range of surface finishes and thicknesses
- Cost-effective solution
- Suitable for both internal and external applications
Key Features
- Embossing Options: Rim, pillow, dim, and pedestal embossing
- Display Windows: Printed color windows and transparent finishes
- Key Types: Tactile (metal/poly dome) and non-tactile (silver printing spot)
- Embedded LEDs: Miniature LEDs in white, yellow, orange, green, red
- Cable: Printed circuit extension for device communication
- Connectors: ZIF, female, and male connector options
- Shielding: Aluminum foil or clear ITO polyester for EMI/RFI/ESD protection
- Adhesive: 3M double-sided glue standard
- Backplate: Aluminum, polycarbonate, or acrylic options
Product Images
Ordering Process
- Submit drawings, specifications, or photos of your product requirements
- Confirm order details and approve artwork before sample production
- Review and approve production sample before mass production
- Standard lead time: 4-5 business days for samples, 7-10 business days for mass production
Our Services
- 24-hour response time for inquiries
- Custom design services with OEM/ODM support
- Professional English-speaking technical support
- Unique engineering solutions from experienced staff
- Quality testing and short lead times for all products
- Custom shapes, sizes, colors, and technologies including LED and sensor integration
- Artwork approval and sample review process to ensure quality before mass production
