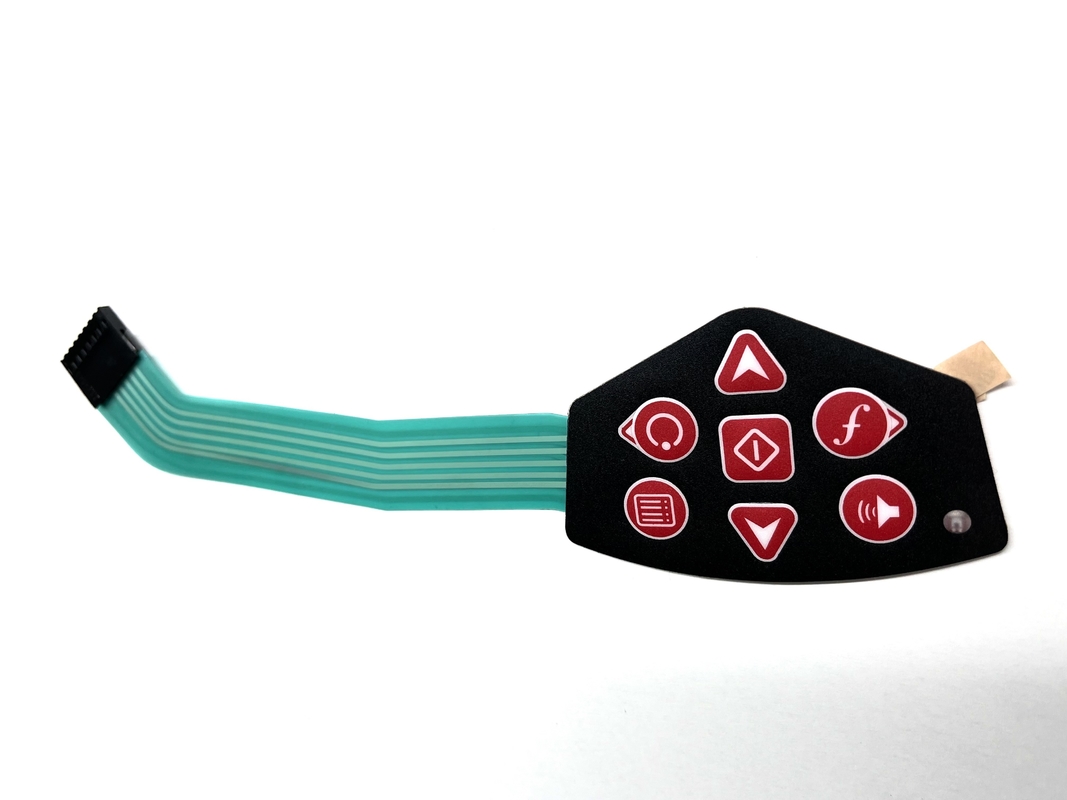

Household Waterproof Membrane Switch 2.54MM Pitch Customizable OEM With Sensor
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 231-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 20000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM , | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Embossing Metal Dome | Connector Type: | Female Connector |
| Embossing Shape: | Pollow Embosing | Circuit Options: | Silver Conductive Printing Circuit |
| Appition: | Monitors | Export Country: | USA |
| Connector Option: | Nicmatic | Sensor Options: | 0805 Or Others |
| Highlight: | Household Waterproof Membrane Switch,2.54MM Pitch industrial membrane switch,2.54MM Pitch Waterproof Membrane Switch |
||
Product Description
Household Waterproof Membrane Switch Customizable OEM With Sensor
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 2.54MM |
| Adhesive | 3M467 adhesive or others |
| Button type | Embossing metal dome |
| Connector type | Female connector |
| Embossing shape | Pillow embossing |
| Circuit options | Silver conductive printing circuit |
| Application | Monitors |
| Export country | USA |
| Connector option | Nicmatic |
| Sensor options | 0805 or others |
Product Description
OEM China Direct Factory Waterproof Custom Membrane Switches With Sensor for various industrial and consumer applications.
Common Applications
- Industrial and Outdoor Equipment: Control panels for pumps, valves, construction machinery, and marine vessels
- Medical Devices: Surgical equipment, medical monitors, and rehabilitation devices
- Household Products: Kitchen appliances, bathroom accessories, and outdoor remote controls
- Electronics: Waterproof remote controls, rugged smartphones, and underwater camera controls
- Automotive: Marine vehicles, construction machinery, and emergency equipment
Technical Specifications
| Overlay Material: |
Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use Polycarbonate: Cost-effective with various surface finishes, suitable for internal/external use |
| Embossing: | Pedestal, Rim, Pillow, or Dim embossing options for tactile feedback |
| Windows/LCD: | Printed color windows or transparent finishes for display functions |
| Keys: | Tactile (metal/poly domes) or Non-tactile (printed silver spot) options |
| LEDs: | Miniature LEDs available in multiple colors (white, green, red, blue, yellow, orange) |
Additional Features
- Cables: Screen printed conductive silver, copper plated, or FPC options
- Connectors: ZIF (0.5MM, 1.0MM, 1.25MM pitch), Female (2.54MM pitch), or Male types
- Shielding: Gasket seal for waterproofing or EMI/RFI/ESD protection options
- Adhesive: 3M double-side mounting glue standard
- Back Plate: Aluminum, Polycarbonate, Acrylic or PMMA options
- Color Matching: PMS or RAL preferred, CMYK/RGB acceptable
- Standard Tolerances: +/-0.2MM
Product Structure
Product Images
Application Examples
Frequently Asked Questions
Q1. What information will I have to provide for price?
A: To provide an exact quote, we need material specifications, thickness, size, adhesive requirements, printing colors, contact details, quantity, size, shape, and artwork files.
Q2. What is your terms of packing?
A: Standard packing includes neutral white boxes and brown cartons. Branded packaging available with proper authorization.
Q3. What is your terms of payment?
A: 30% deposit via T/T, with 70% balance paid before delivery. Product photos provided before final payment.
Q4. How about your delivery time?
A: Samples completed in 5 days after drawing confirmation. Mass production completed in 10 days after sample approval. Exact timing depends on order specifics.
Q5. Can you produce according to the samples?
A: Yes, we can produce based on your samples or technical drawings, including creating necessary molds and fixtures.
Q6. What is your sample policy?
A: Samples available from stock, with customer responsible for sample cost and courier fees.
Q7. Do you test all your goods before delivery?
A: Yes, we conduct 100% testing before delivery to ensure quality standards.
Want to Know more details about this product
