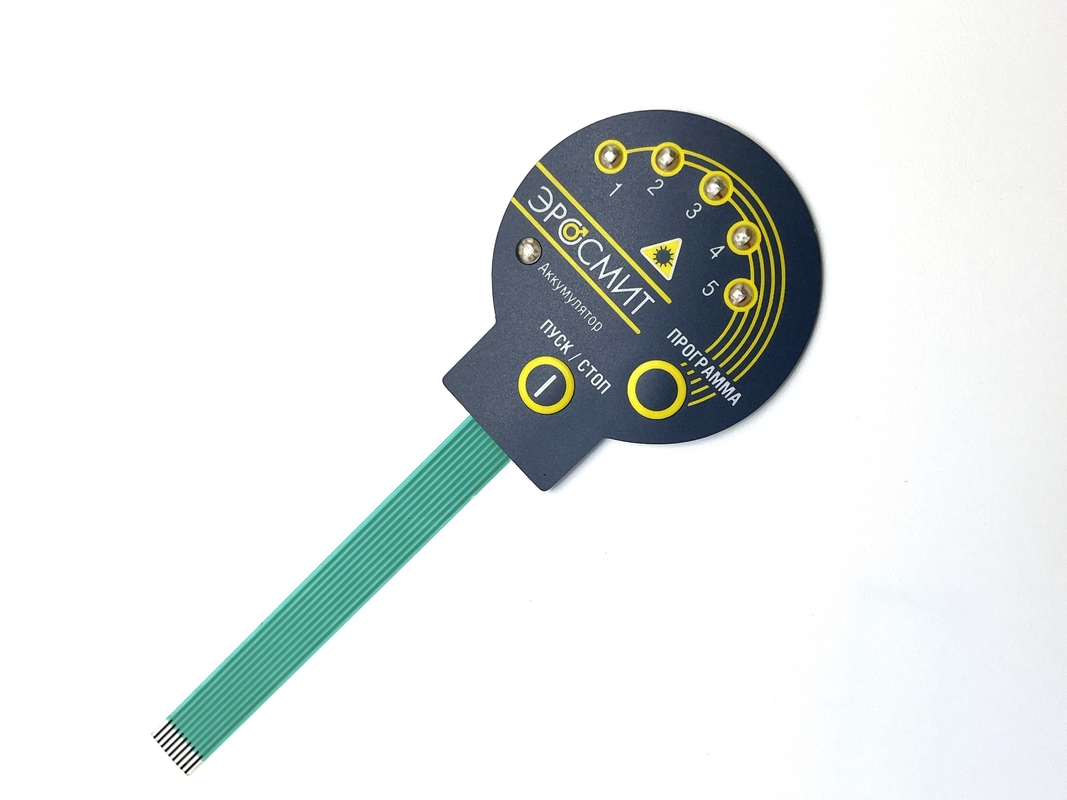

Embossed Type Waterproof Membrane Switch Durable 0.88MM Thickness For Testing Controller
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0704-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 150 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Button Type: | Embossing Poly Dome Button | Adhesive: | 3M Adheisve Or Others |
| Embossing Shape: | Pillow Embosing | Circuit Options: | Silver Circuit |
| Pitch Of Contact: | 1.0MM Or Other Request | Application: | Testing Controller |
| LED Color: | Yellow | Total Thickness: | 0.88MM |
| Highlight: | 0.88MM thickness Waterproof Membrane Switch,Durable Waterproof Membrane Switch,0.88MM thickness industrial membrane switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Button type | Embossing poly dome button |
| Adhesive | 3M adhesive or others |
| Embossing shape | Pillow embossing |
| Circuit options | Silver circuit |
| Pitch of contact | 1.0MM or other request |
| Application | Testing controller |
| LED color | Yellow |
| Total thickness | 0.88MM |
Key testing considerations for industrial controller membrane switches:
- Validate electrical performance including contact resistance, electrical life, and dielectric strength
- Use specialized test equipment like multimeters, LCR meters, and high-voltage testers
- Evaluate tactile feedback characteristics including actuation force and travel distance
- Use custom test fixtures with force gauges for precise measurements
- Subject to temperature cycling, humidity exposure, and chemical resistance tests
- Validate ingress protection (IP) rating requirements
- Perform lifecycle testing with automated equipment
- Monitor for contact degradation and mechanical failure
- Visual inspection of components and assembly
- Review manufacturing records and test data for compliance
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force | Non-tactile 60g to 300g (2oz to 10oz) Tactile 150g to 400g (6oz to 14oz) |
| Switch Stroke | Non-tactile 0.1 to 0.5mm Tactile 0.6 to 1.5mm |
|
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
|
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Contact Bounce | ≤ 5 milliseconds | |
- Material for front/face overlay:
- Polyester: Highly versatile for embossing, chemical resistant, durable
- Polycarbonate: Wide range of surface finishes, cost-effective
- Embossing: Rim embossing, pillow embossing, dim embossing
- Windows for display function: Print colors windows, transparent finishes windows
- Keys/buttons: Tactile keys with metal/poly dome or non-tactile silver printing spot
- Embedded LEDs: Miniature LED in white, yellow, orange, green, red
- Cable: Printed circuit extension for device communication
- Connector types: ZIF, female, male connectors
- EMI/RFI/ESD Shielding: Aluminum foil or clear ITO conductive polyester
- Adhesive: Mostly 3M double-side glue
- Backplate: Aluminum, polycarbonate or acrylic
