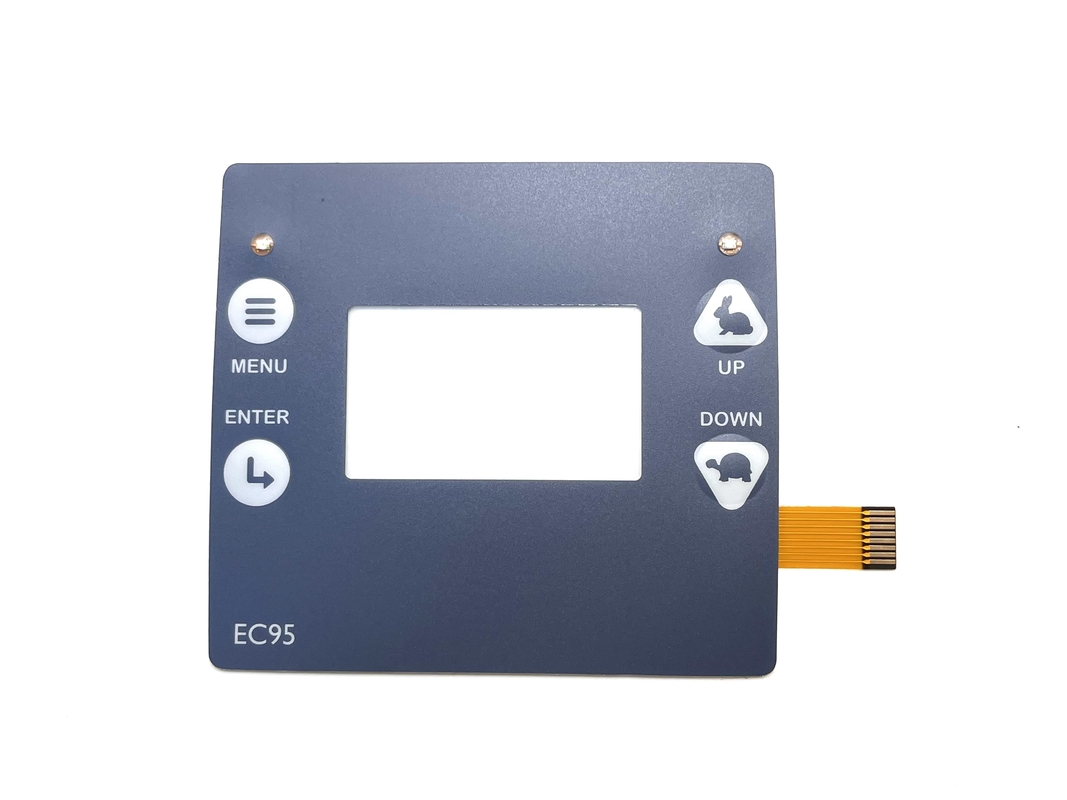

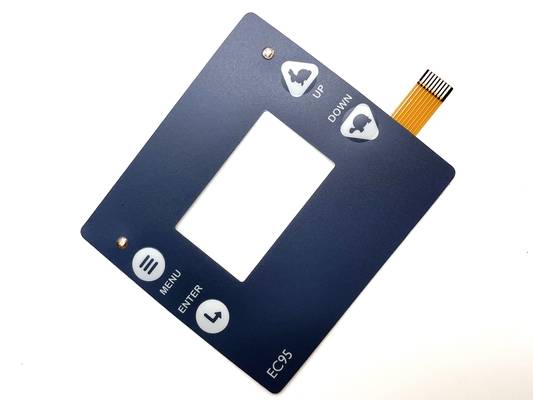

UV Resistant Waterproof Membrane Switch High Flexibility 1.0MM Pitch For Outdoor Controller
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0704-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 40000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Button Type: | Flat Button | Adhesive: | 3M Adheisve Or Others |
| Embossing Shape: | Pillow Embosing | Circuit Options: | Copper Circuit |
| Pitch Of Contact: | 1.0MM Or Other Request | Application: | Industry Controller |
| Highlight: | 1.0MM Pitch Waterproof Membrane,1.0MM Pitch flexible membrane keypad,High Flexibility Waterproof Membrane |
||
Product Description
UV Resistant Waterproof Membrane Switch High Flexibility For Outdoor Controller
Product Specifications
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Button type | Flat button |
| Adhesive | 3M adhesive or others |
| Embossing shape | Pillow embossing |
| Circuit options | Copper circuit |
| Pitch of contact | 1.0MM or other request |
| Application | Industry controller |
Ultraviolet-Proof Waterproof Membrane Switch Keyboard
Key design considerations for UV-proof membrane switches:
- Material Selection: UV-resistant materials like polycarbonate, polyester, and silicone-based films
- UV Protection: Specialized UV-blocking layers and coatings to protect internal components
- Optical Clarity: Maintains visibility while blocking harmful UV light
- Durability: Designed to withstand long-term UV exposure without performance degradation
- Environmental Resistance: Protects against temperature, humidity, and chemical exposure
- Quality Assurance: Manufactured in ISO-compliant facilities with complete documentation
Performance Specifications
| Environmental | |
|---|---|
| Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) |
| Humidity | 40°C, 90% to 95% for 240 hours |
| Vibration | 20G's max. |
| Mechanical | |
| Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm |
| Life Expectancy (Non-tactile) | >5 million actuations |
| Life Expectancy (Tactile) | >1 million actuations |
| Electrical | |
| Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive |
| Operating Power | 1 watt maximum |
| Circuit Resistance | 10 ohms to 500 ohms |
Technical Details
Overlay Material:
- Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use
- Polycarbonate: Cost-effective, wide range of finishes, suitable for internal/external use
Embossing Options:
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
Display Options:
- Printed color windows (red, black, etc.)
- Transparent finish windows
About ShenZhen TaiDa Membrane Switch CO.,LTD
Taida is an OEM professional specializing in designing and manufacturing membrane switches, graphic overlays, and adhesive stickers/labels with over 15 years of experience. Our products are widely used in industrial, electronics, household appliance, and medical equipment applications.
Factory Strength:
- Factory Area: Over 2000 Square meters
- Employees: >70
Our Capabilities:
- Continued quality improvement and professional technical support
- Strong productivity with unified production processes
- 20% of workforce dedicated to QC/QA
- Efficient dispatch department for accurate and speedy shipping
- Comprehensive sales and after-sales service
