Waterproof Sealed Membrane Switch Membrane Switch Keypad Energy Saving For Ocean Power Battery
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | GC Technology |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 231-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 20000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM , | Adhesive: | 3M467 And 3m468 Adheisve Or Others |
| Button Type: | Tactile Metal Dome | Embossing Type: | Rim Emboss |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit |
| Highlight: | Waterproof Sealed Membrane Switch,Waterproof Membrane Switch Keypad,Energy Saving Sealed Membrane Switch |
||
Product Description

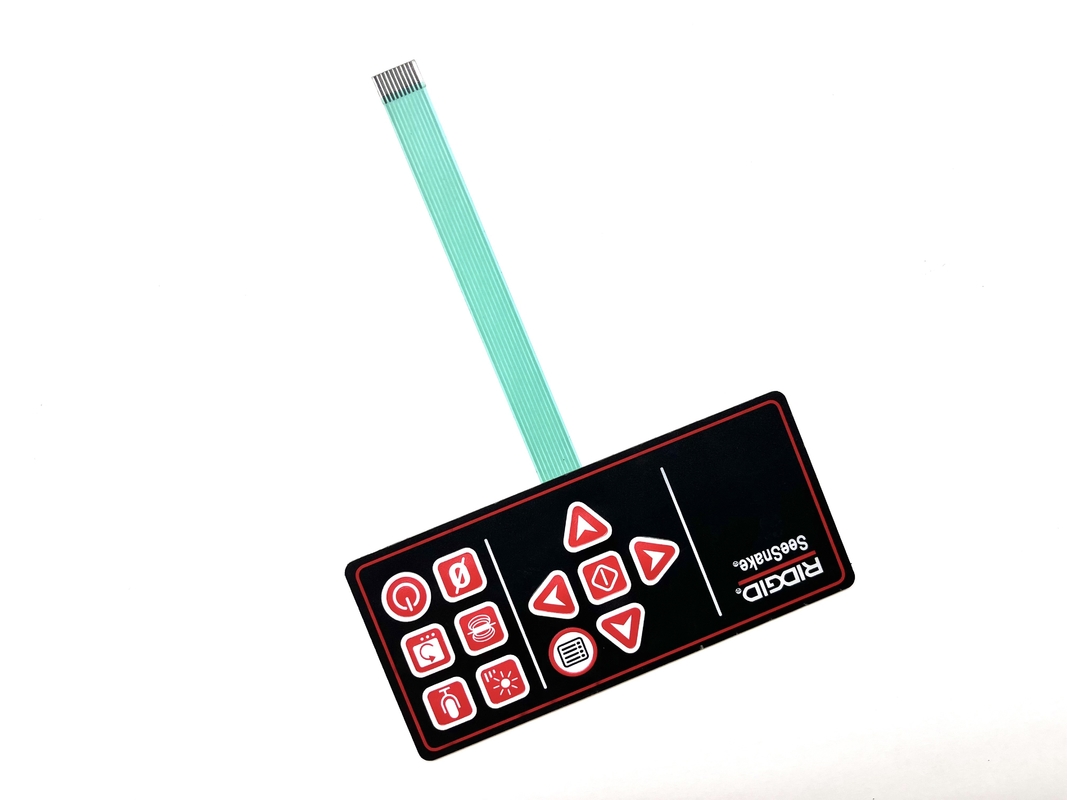

Waterproof Sealed Membrane Switch Keypad for Ocean Power Battery
Product Attributes
| Attribute | Value |
|---|---|
| Material | Polyester, Polycarbonate or others |
| Color | Pantone, RAL, CMYK, RGB |
| Pitch of Connect | 1.0MM |
| Adhesive | 3M467 and 3M468 adhesive or others |
| Button type | Tactile metal dome |
| Embossing type | Rim emboss |
| PN | Membrane switch, Membrane keypad, Keyboard, Overlay |
| Circuit options | Silver flex circuit |
Product Description
Custom gasket sealed adhesive keypad membranes designed specifically for marine and harsh aquatic environments in ocean power battery applications.
Key Features
- Gasket Sealing: Durable rubber/silicone perimeter seal provides water-resistant and weatherproof protection
- Adhesive Attachment: Pressure-sensitive backing for secure bonding to equipment surfaces
- Durable Materials: Polyester or silicone membrane withstands UV exposure and repeated flexing
- Tactile Feedback: Responsive button press feel suitable for gloved operation
- Full Customization: Available in custom sizes, shapes, button layouts, and graphics
Technical Specifications
Overlay Material: Polyester or Polycarbonate with various finishes
Embossing Options: Pedestal, Rim, Pillow, or Dim embossing
Display Windows: Printed color or transparent LCD windows
Key Types: Tactile (metal/poly domes) or non-tactile (silver spot)
LED Options: Multiple colors including white, green, red, blue, yellow
Connectors: ZIF (0.5-1.25mm pitch), Female (2.54mm), or Male types
Standard Tolerance: ±0.2mm
Performance Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 35V DC |
| Operating Current | 100mA 1W |
| Contact Resistance | < 100 Ohms |
| Operating Temperature | -20°C to +80°C |
| Life Expectancy | Flat type ≥5,000,000 cycles, Tactile ≥1,000,000 cycles |
| Operating Humidity | Up to 95% RH |
Product Structure
Product Images
