Electronic Membrane Switch Graphic Overlay Highly Versatile 0.5MM Pitch With Ip67
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 072-019 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T, PAYPAL |
| Supply Ability: | 5000+ pcs +A Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone ,RAL Or CMYK Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome Or Embossing Dome | Size: | Custom Design Any Size Or Shape Based On Client Requetment |
| Storage Temperature: | -40℃ To 70℃ | Life Cycle: | 1 Million Times |
| Printing: | Digital And Screen Printing | Type: | Flexible |
| Conductor: | Copper | Circuit Type: | FPC |
| Waterproof Grade: | IP67 | Button Type: | Gold Plated Metal Dome |
| Highlight: | Electronic Membrane Switch Graphic Overlay,Electronic membrane control panel,0.5MM Pitch Membrane Switch Graphic Overlay |
||
Product Description

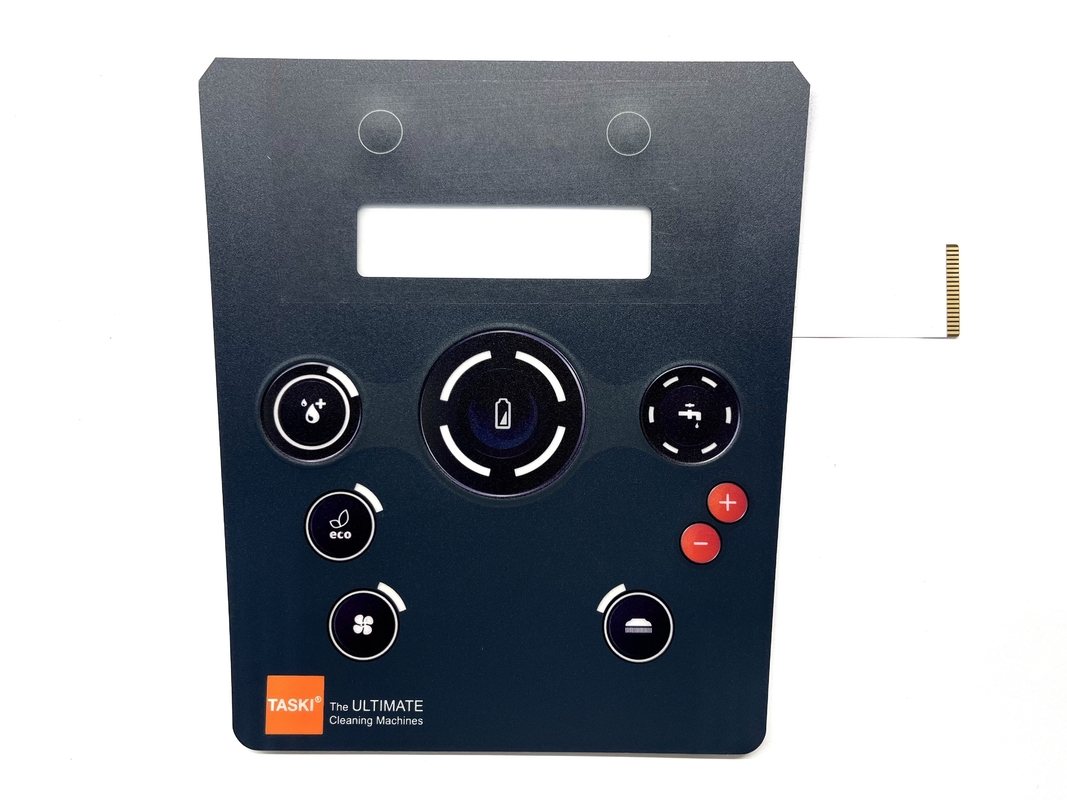

Electronic Membrane Switch Graphic Overlay Highly Versatile With IP67
Product Specifications
| Material | PET or PC |
| Color | Pantone, RAL, CMYK or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
| Adhesive | 3M adhesive or other request |
| Button Type | Metal dome or Embossing dome |
| Size | Custom design any size or shape based on client requirement |
| Storage Temperature | -40℃ to 70℃ |
| Life Cycle | 1 million times |
| Printing | Digital and Screen Printing |
| Type | Flexible |
| Conductor | Copper |
| Circuit Type | FPC |
| Waterproof Grade | IP67 |
| Button Type | Gold plated metal dome |
Highly Versatile Electronic Component Membrane Switches
Our membrane switches are ideal for both internal and external applications with IP67 waterproof rating. These components are commonly used in electronic devices and consumer electronics, offering reliable performance and durability.
Key Features
- Simple structure: Consists of thin film layers including conductive films, insulating layers, and protective layers
- Thin profile: Typically 0.5-2mm thick for compact device designs
- Cost-effective: Simple manufacturing process enables economical mass production
- High reliability: No mechanical contact parts ensures long lifespan (millions of operations)
- Excellent tactile feedback: Optimized membrane structure provides satisfying press response
- Environmental protection: Sealed surface resists water and dust ingress
- Design flexibility: Available in various shapes and patterns to meet diverse requirements
- Integrated functionality: Can incorporate additional features like sensors and LED indicators
Technical Specifications
Performance Index
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm | |
| Switch Stroke (Tactile) | 0.6 to 1.5mm | |
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
|
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds |
