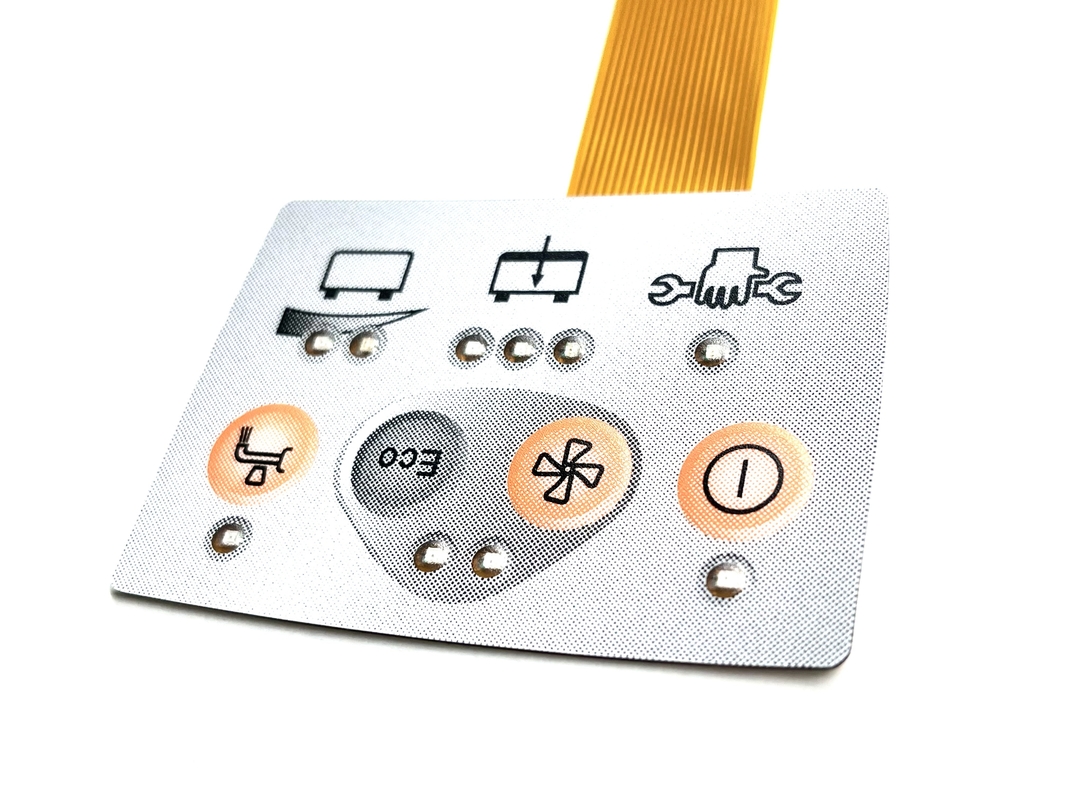

Versatile Membrane Graphic Overlay Dust Proof With LED Sealed Gradient Printing
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 256-007 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 15000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM , | Adhesive: | 3M9448A Adheisve Or Others |
| Button Type: | Embossing Metal Dome | Connector Type: | Female Connector |
| Embossing Shape: | Pillow Embosing | Circuit Options: | Silver Flex Circuit |
| Overlay Printing Option: | Gradient Printing | LED Color: | Orange Or Others |
| LED Brand: | Everlight Or Other Request | LED Type: | 0603 |
| Highlight: | Versatile Membrane Graphic Overlay,Versatile membrane touch panel,Dust Proof Membrane Graphic Overlay |
||
Product Description
Versatile Membrane Graphic Overlay Dust Proof With LED Sealed Gradient Printing
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 2.54MM |
| Adhesive | 3M9448A adhesive or others |
| Button type | Embossing metal dome |
| Connector type | Female connector |
| Embossing shape | Pillow embossing |
| Circuit options | Silver flex circuit |
| Overlay printing option | Gradient printing |
| LED color | Orange or others |
| LED brand | Everlight or other request |
| LED type | 0603 |
Product Description
Polyimide Copper Flex Circuit Membrane Keypad Panel With LED Sealed And Gradient Printing
Key Features:
- Material (Front Overlay): Polyester - Highly versatile for embossing, chemical resistant, durable for internal/external use
- Embossing Options: Rim embossing, pillow embossing, dim embossing, pedestal embossing
- Display Windows: Tinted windows or transparent finishes
- Keys/Buttons: Tactile keys with metal dome or poly dome, non-tactile silver printing spot
- Embedded LEDs: Miniature LEDs available in white, yellow, orange, green, red, etc.
- Cable: Printed circuit extension for device communication
- Connector Types: Zero insertion force (ZIF), female connector, male connector
- EMI/RFI/ESD Shielding: Aluminum foil shielding or clear ITO electrical conductive polyester
- Adhesive: Primarily 3M double-side glue
Common Membrane Keypad Structure:

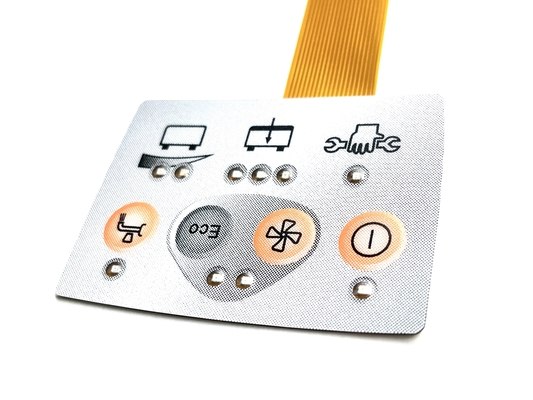

Product Images:
Frequently Asked Questions
Q1. What information will I have to provide for price?
A: To provide an exact price, we need material specifications (thickness, size), adhesive requirements, printing colors, contact details, quantity, size/shape, and artwork files.
Q2. What is your terms of payment?
A: T/T 50% deposit, 50% before delivery. We provide product and package photos before final payment.
Q3. How about your delivery time?
A: Samples completed in 5 days after drawing confirmation. Mass production completed in 10 days after sample approval. Exact timing depends on order specifics.
Q4. Can you produce according to the samples?
A: Yes, we can produce from samples or technical drawings, including creating necessary molds and fixtures.
Q5. What is your sample policy?
A: We provide samples from stock, with customer responsible for sample cost and courier fees.
Q6. Do you test all your goods before delivery?
A: Yes, we perform 100% testing before delivery.
Q7: How do you make our business long-term and good relationship?
A: 1. We maintain quality and competitive pricing. 2. We value every customer relationship, treating all business partners with respect and sincerity.
