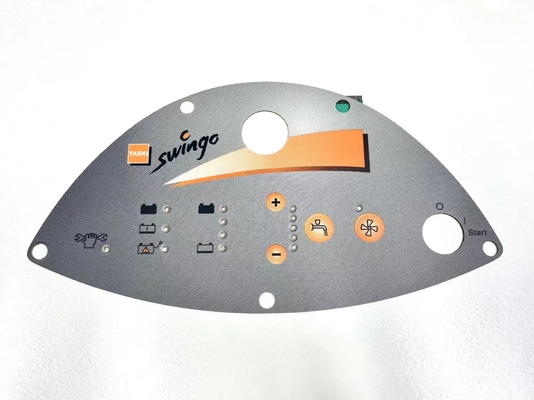

Glossy Surface Custom Membrane Switch Panel 0.8mm Thickness With LED Pillow Embossed
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 072-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 12000 +pcs +a Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome Or Embossing Dome | Size: | Custom Design |
| Operating Temperature: | -20°C To 70°C | Waterproof Grade: | IP67 |
| Life Expectancy: | 1 Million To 5 Million Cycles | Storage Temperature: | -40°C To 85°C |
| Printing Method: | Gradient Dot Printing | Total Thickness: | 0.8mm-1.0mm |
| Highlight: | Glossy Surface custom membrane switch panel,0.8mm Thickness custom membrane switch panel,0.8mm Thickness membrane touch switch |
||
Product Description
Glossy Surface Custom Membrane Switch Panel Standard With LED Pillow Embossed
Product Specifications
| Attribute | Value |
|---|---|
| Material | PET or PC |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
| Adhesive | 3M adhesive or other request |
| Button type | Metal dome or Embossing dome |
| Size | Custom design |
| Operating Temperature | -20°C to 70°C |
| Waterproof Grade | IP67 |
| Life Expectancy | 1 million to 5 million cycles |
| Storage Temperature | -40°C to 85°C |
| Printing Method | Gradient dot printing |
| Total Thickness | 0.8mm-1.0mm |
Product Description
Digital Printing Custom Membrane Keyboards With LED And Pillow Embossed
A Gradient Dot Printing Membrane Keypad is a type of membrane switch that features a unique printing technique to create a visual gradient effect on the keypad surface. The gradient dot printing process can be integrated into the existing membrane switch manufacturing workflows, allowing for cost-effective production of customized gradient-printed keypads.
Detailed Specifications
- Overlay Materials: Polyester (PET) - 1,000,000 cycles life expectancy or Polycarbonate (PC) - 40,000 cycles life expectancy
- Rear Adhesive: 3M 467MP, 3M 468MP, 3M9448MP, Lohmann adhesive etc.
- Color Matching: Pantone and RAL color matching system
- Surface Finish: Glossy, semi-glossy or matt
- Key Effect: Non-tactile, poly dome, metal dome or silicone rubber
- Tactile Feedback Options: Metal dome for crisp feedback or polyester dome with emboss
- Window Options: Transparent LCD window or tinted window, die cutting cutouts
- LED Options: Embedded LEDs for backlight
- Standard Tolerances: ±0.010 inch (±0.2mm)
Performance Index
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm | |
| Switch Stroke (Tactile) | 0.6 to 1.5mm | |
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
|
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds |
Ordering Process
- Send us drawings, specifications or photos of your product
- Confirm order details and approve artwork before sample production
- Confirm sample before mass production
- Standard sample lead time: 7 business days
- Mass production lead time: 7-10 business days (depending on production schedule and order quantity)
Our Services
- 24-hour response to inquiries
- Custom design available (OEM and ODM welcome)
- Professional English support from experienced staff
- Unique solutions from trained engineers
- High quality products with testing and short lead times
- Custom shapes, sizes, colors, and technologies (buttons, LEDs, sensors, etc.)
- Sample approval before mass production to reduce costs
