Flexible Touch Screen Membrane Membrane Graphic Overlay Water Resistant With LED Illuminated
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0611-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome Or Metal Snap Dome | Size: | Custom Design |
| Application: | Medical Equipment | Printing Method: | Screen Printing ,digital Printing Or Gradient Dot Printing |
| Total Thickness: | 0.8mm-1.5mm | LED Color: | Blue ,white ,red Or Other Request |
| LED Type: | 0805 ,0603 Or Other | LED Window: | Semi-transparent White Or Clear |
| Connector Type: | ZIF Connector Or Female Connector | ||
| Highlight: | Flexible Touch Screen Membrane,Flexible Membrane Graphic Overlay,Water Resistant Touch Screen Membrane |
||
Product Description

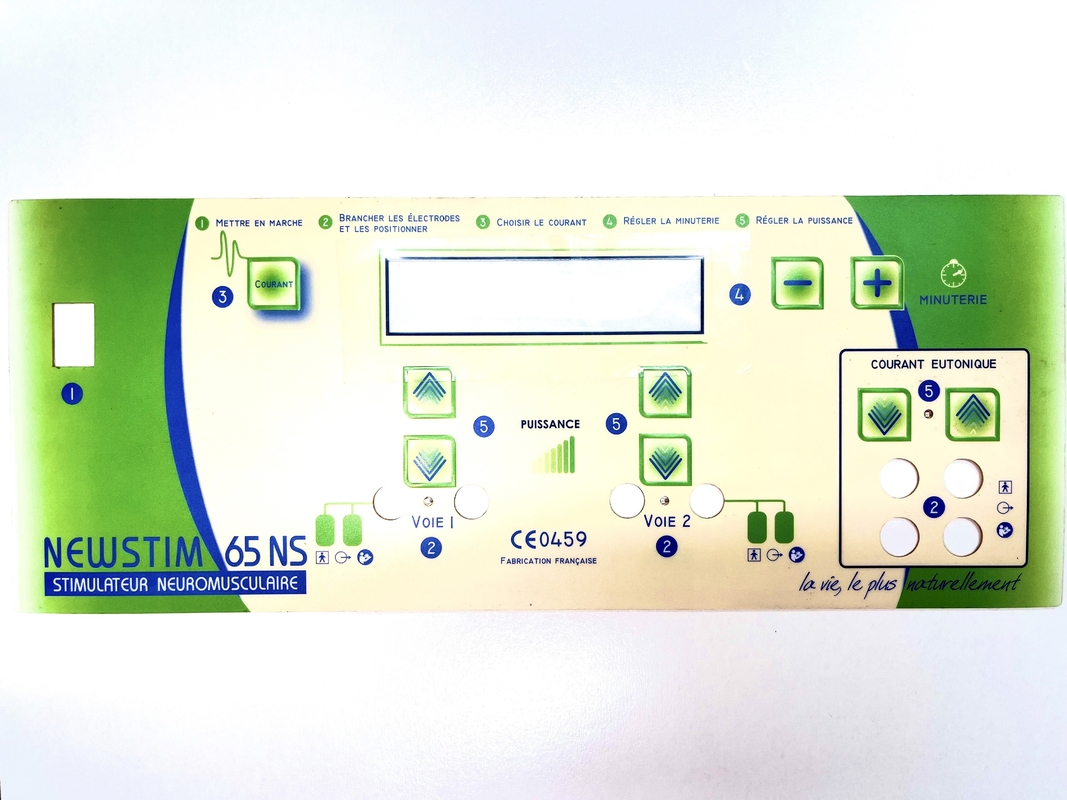

Flexible Touch Screen Membrane Graphic Overlay Water Resistant With LED Illuminated
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome or Metal snap dome |
| Size | Custom design |
| Application | Medical equipment |
| Printing Method | Screen printing, digital printing or gradient dot printing |
| Total Thickness | 0.8mm-1.5mm |
| LED color | Blue, white, red or other request |
| LED type | 0805, 0603 or other |
| LED window | Semi-transparent white or clear |
| Connector type | ZIF connector or female connector |
Four-Color Digital Printing Matte Surface Membrane Tactile Button Switches With LED Illuminated
Printing Process Comparison
Digital Printing
- Uses electronic files and digital technology to transfer images directly
- High flexibility for small-run jobs and customized designs
- Excellent color accuracy and detail with high resolution
- Supports various ink types for diverse substrates
Screen Printing
- Uses physical stencils to push ink through onto substrate
- More cost-effective for longer print runs
- Better for larger, simpler designs with fewer gradients
- Uses thicker, more opaque inks suitable for fabrics and rigid materials
Detailed Specifications
- Material: Polyester (chemical resistant, durable) or Polycarbonate (cost-effective, various finishes)
- Embossing: Rim, pillow, dim or pedestal embossing for tactile feedback
- Windows: Printed color or transparent finishes for display functions
- Keys/Buttons: Tactile (metal/poly dome) or non-tactile (silver printing spot)
- Embedded LEDs: Miniature LEDs in white, yellow, orange, green, red, etc.
- Cable: Printed circuit extension for device communication
- Connectors: ZIF, female or male connector options
- Shielding: Aluminum foil or clear ITO conductive polyester for EMI/RFI/ESD protection
- Adhesive: Primarily 3M double-sided glue
- Backplate: Aluminum, polycarbonate or acrylic options
Performance Index
| Category | Specification |
|---|---|
| Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) |
| Humidity | 40°C, 90% to 95% for 240 hours |
| Vibration | 20G's max. |
| Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm |
| Life Expectancy (Non-tactile) | >5 million actuations |
| Life Expectancy (Tactile) | >1 million actuations |
| Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive |
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM welcome)
- Professional English support from experienced staff
- Unique solutions from trained engineers
- High quality products with testing and short lead times
