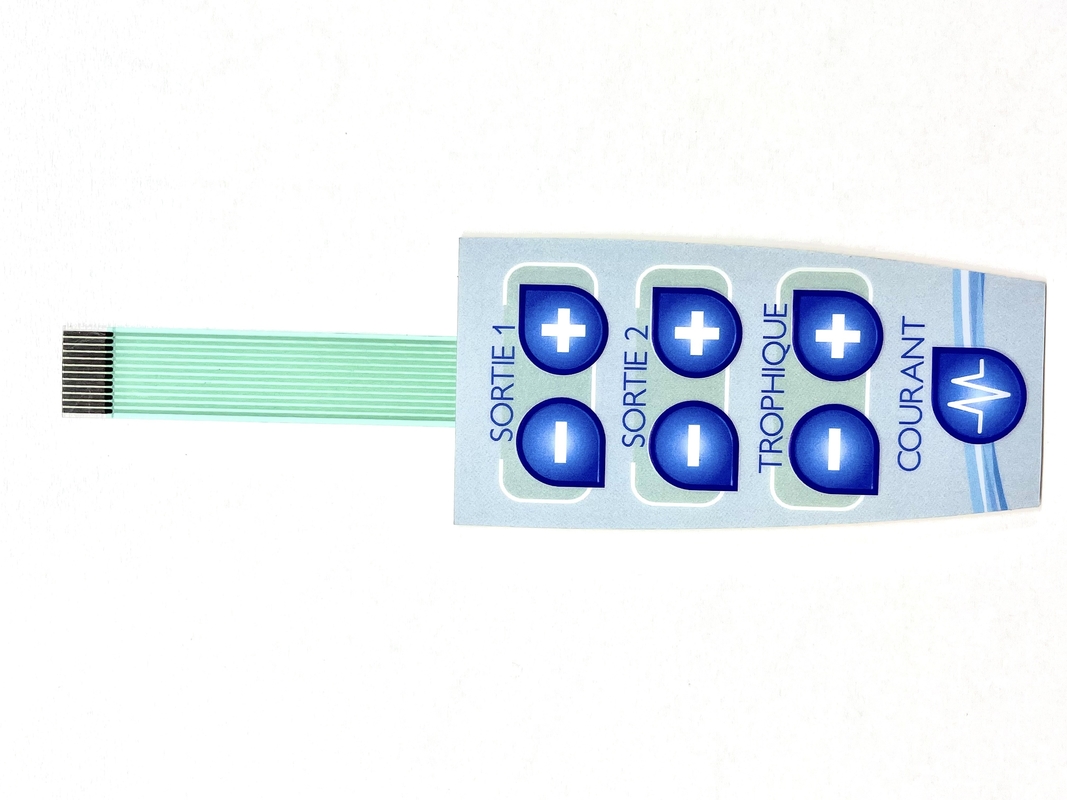

Durable Membrane Panel Switch Digital Printed Overlays Waterproof For Magnetic Therapy Device
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | GC Technology |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 048-034 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 50000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 1.25MM , | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Connector Type: | Zif Connector |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit |
| Highlight: | Durable Membrane Panel Switch,Durable Digital Printed Overlays,Waterproof Digital Printed Overlays |
||
Product Description
Durable Membrane Panel Switch Digital Printed Overlays Waterproof For Magnetic Therapy Device
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 1.25MM |
| Adhesive | 3M467 adhesive or others |
| Button type | metal dome |
| Connector type | zif connector |
| PN | Membrane switch, Membrane keypad, keyboard, overlay |
| Circuit options | silver flex circuit |
Key Features
- Waterproof and Durable Design: Resistant to fluids, dust, and environmental factors for reliable performance in moist environments.
- Easy Cleaning and Disinfection: Smooth, seamless surface allows for simple cleaning and prevents bacterial accumulation.
- Tactile Feedback: Provides clear "click" sensation for user confirmation, especially beneficial for elderly or vision-impaired users.
- Customizable Button Layout: Tailored interface to match specific functions and controls of magnetic therapy devices.
- Optional Backlit Illumination: Improves visibility in low-light environments with customizable lighting options.
- Glove-Compatible Operation: Designed to be responsive when used with medical or protective gloves.
Technical Specifications
Operating voltage:
35V DC
Operating current:
100mA 1W
Contact resistance:
< 100 Ohms
Open circuit resistance:
≥ 10MΩ at 100V
Operating temperature:
Flat/Metal dome: -20°C to +80°C
Storage temperature:
Flat/Metal dome: -40°C to +80°C
Life expectancy:
Flat type ≥5,000,000 times, Tactile type ≥1,000,000 times
Switch stroke:
0.1 to 0.6mm
Contact bounce:
5 to 30ms
Actuation force tolerance:
+/- 20 to 45g
Tactile ratio:
FC > 40%
Operating humidity:
up to 95% RH
Shipping Information
- FedEx/DHL/UPS/TNT for samples (Door-to-Door)
- By Air or by Sea for batch goods (FCL; Airport/Port receiving)
- Customers may specify freight forwarders or negotiable shipping methods
- Delivery Time: 5-7 business days for samples; 8-13 days for batch goods
Ordering Process
- Send drawings, specifications or photos of your product
- Confirm order details and approve artwork before sample production
- Artwork confirmation within 3 days before sample making
- Sample lead time: 4-5 business days
- Mass production lead time: 7-10 business days (depending on production schedule and order quantity)
Product Images
