Glossy Surface Custom Membrane Keypad 0.5MM Pitch Versatile For Ventilation Fan Control
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 240705-224 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 20000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL, CMYK , |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM ,1.0MM ,1.25MM ,0.5MM | Adhesive: | 3M Adheisve Or Others |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit Or FPC Etching Circuit |
| Surface Finish: | Velvet Texture Or Glossy | Connector Brand: | ZIF Connector Or Female Connector |
| LCD Type: | Transparent Window | Connetor Option: | Female Connector |
| Highlight: | 0.5MM Pitch Custom Membrane Keypad,0.5MM Pitch custom membrane switches,Glossy Surface Custom Membrane Keypad |
||
Product Description
Glossy Surface Custom Membrane Keypad for Ventilation Fan Control
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL, CMYK |
| Pitch of Connect | 2.54MM, 1.0MM, 1.25MM, 0.5MM |
| Adhesive | 3M adhesive or others |
| Circuit Options | Silver flex circuit or FPC etching circuit |
| Surface Finish | Velvet texture or glossy |
| Connector Brand | ZIF connector or Female connector |
Product Description
Glossy Polyester Solid Printing Membrane Switch Keypad designed specifically for ventilation fan control applications, offering durability and aesthetic appeal.
Key Features
- Material: Durable polyester with smooth, glossy finish
- Solid Printing: Graphics printed directly onto surface for longevity
- Tactile Feedback: Optional tactile elements for improved user interaction
- Customization: Tailored icons, colors, and layouts available
Technical Specifications
- Operating Voltage: ≤ 50VDC
- Working Current: ≤ 100mA
- Contact Resistance: 0.5 ~ 5Ω
- Insulation Resistance: ≥ 100MΩ (100VDC)
- Substrate Voltage: 2kDVC
- Spring Time: ≤ 6ms
- Loop Resistance: 60Ω
- Insulation Ink Voltage: 100VDC
Construction Options
Overlay Material
Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use
Polycarbonate: Cost-effective with wide range of surface finishes, suitable for internal/external use
Embossing Types
Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing
Display Options
Transparent, tinted, or printed color windows available for LCD displays
Applications
- Ventilation fan control systems
- HVAC equipment operation
- Home appliances requiring user interfaces
- Industrial control panels
Our Services
- 24-hour response to inquiries
- Custom OEM/ODM solutions
- Professional engineering support
- Prototype samples before production
- Flexible design options for shapes, sizes, and colors
- Quality testing and short lead times

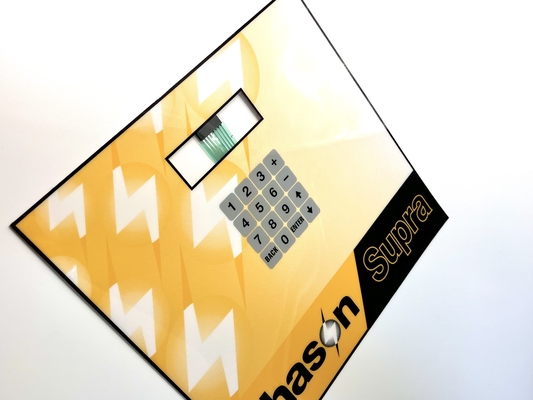

Product Images
