Waterproof Matrix Membrane Keypad Custom Keypad Membrane Compact For Marine Electronics
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | TASKI |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 1014-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 12000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome Or Metal Dome | LED Color: | Custom Design |
| Printing Method: | Screen Printing,digital Printing | Connector Type: | ZIF , Female Or Male Connector |
| Embossing Shape: | Rim Embossing ,Pollow Embosing | LCD Window: | Clear ,Tinted ,Punching Or PMMA , |
| Circuit Options: | FPC ,silver Plate ,or PCB Board | LED Type: | Everlight |
| Highlight: | Waterproof Matrix Membrane Keypad,Waterproof Custom Keypad Membrane,Compact Matrix Membrane Keypad |
||
Product Description
Waterproof Matrix Membrane Keypad Custom Keypad Membrane Compact For Marine Electronics
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome or metal dome |
| LED color | Custom design |
| Printing Method | Screen printing, digital printing |
| Connector type | ZIF, female or male connector |
| Embossing shape | Rim embossing, Pillow embossing |
| LCD window | Clear, Tinted, Punching or PMMA |
| Circuit options | FPC, silver plate, or PCB board |
| LED type | Everlight |
Product Description
Flexible And Waterproof SMD Matrix Membrane Keypad For Marine Electronics And Navigation
Construction
- Multi-layer membrane switch design
- Top graphic overlay for branding and visual aesthetics
- Flexible waterproof and contaminant-resistant barrier
- Conductive switch elements with printed circuit patterns
- PCB attachment layer for direct surface mounting
- Total assembly thickness typically less than 1mm
Mounting and Integration
- Designed for direct soldering or adhesion onto PCB surfaces
- Compact, integrated solution that becomes part of electronic assembly
- Compatible with standard SMT (Surface Mount Technology) equipment
Applications
- Handheld medical devices
- Industrial automation and control panels
- Automotive infotainment and control systems
- Marine electronics
- Consumer electronics and home appliances
Technical Specifications
Overlay material: Polyester or Polycarbonate with various properties
Embossing: Graphic overlay or up circuit can be embossed for tactile feedback
Windows/LCD: Printed colors or transparent finishes
Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot)
LEDs: Miniature LEDs in various colors
Cables: Screen printed conductive silver, copper plated, or FPC
Connectors: ZIF, female, or male types with various pitches
Shielding: Gasket seal/Waterproof or EMI/RFI/ESD protection
Operating temperature: -20°C to +80°C
Storage temperature: -40°C to +80°C
Life expectancy: Flat type ≥5,000,000 cycles, Tactile type ≥1,000,000 cycles
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM welcome)
- Professional English support
- Engineer-provided unique solutions
- Quality testing and short lead times
FAQ
Q1. What information will I have to provide for price?
A: Material, specification, thickness, size, adhesive requirements, printing colors, contact details, quantity, size and shape with artwork files.
Q2. What is your terms of packing?
A: Neutral white boxes and brown cartons standard; branded packaging available with authorization.
Q3. What is your terms of payment?
A: 30% deposit by T/T, 70% balance before delivery with product photos.
Q4. How about your delivery time?
A: Samples in 5 days after drawing confirmation, mass production in 10 days after sample approval.
Q5. Can you produce according to the samples?
A: Yes, we can produce from samples or technical drawings, including mold creation.
Q6. What is your sample policy?
A: Samples available from stock with payment of sample and courier costs.
Q7. Do you test all your goods before delivery?
A: Yes, we perform 100% testing before delivery.
Q8: How do you make our business long-term and good relationship?
1. Maintain quality and competitive pricing
2. Treat every customer as a friend with sincere business practices
2. Treat every customer as a friend with sincere business practices

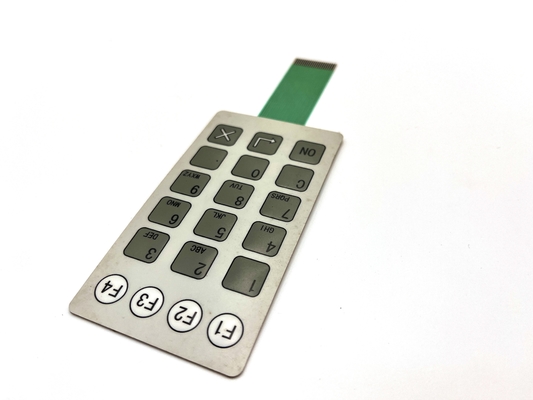

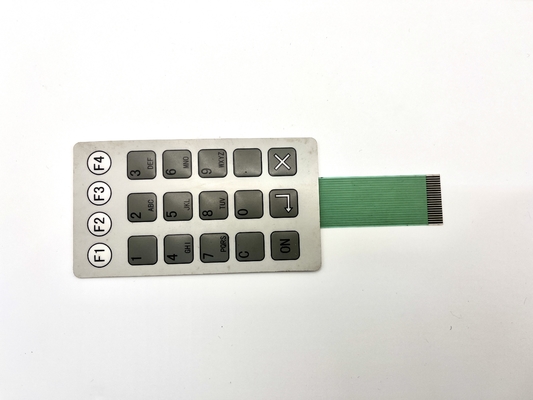

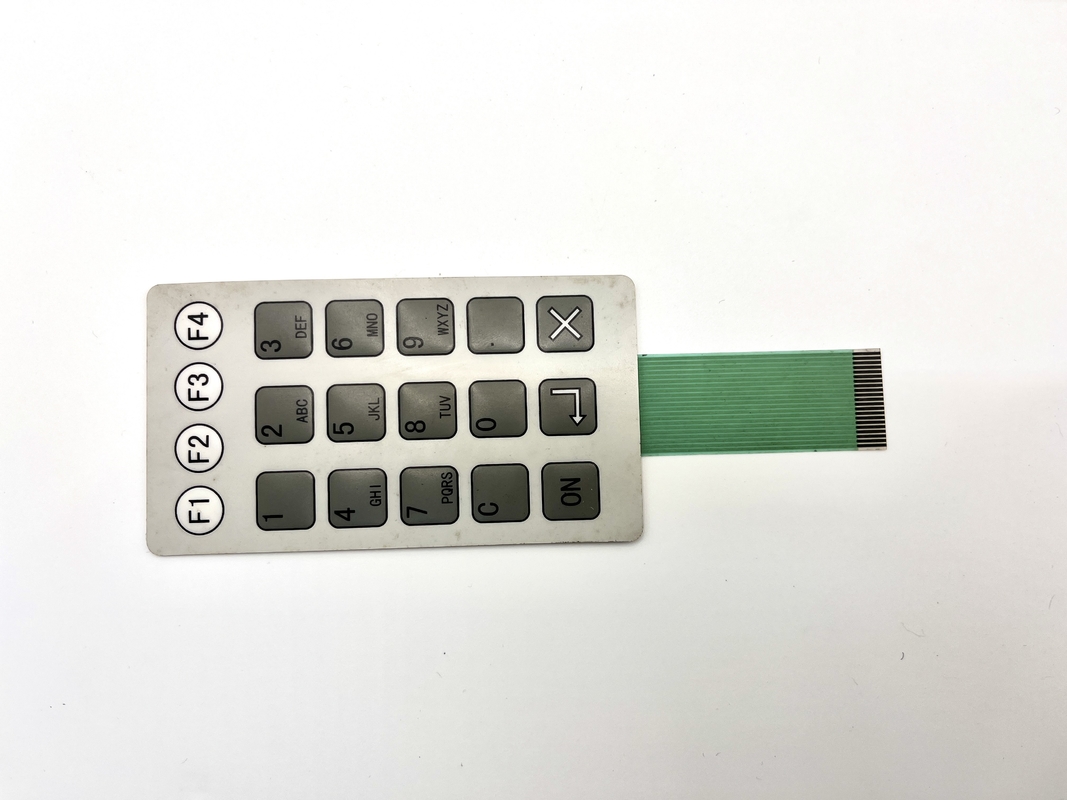

Product Images
