Automatic Printing Matrix Membrane Switch Embeded Flexible Prototype 2.54MM Pitch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241026-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 80000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM Male Connector | Adhesive: | 3M Adheisve Or Other |
| Button Type: | Metal Snap Dome | Circuit Option: | PET Circuit Flexible |
| Printing Method: | Screen Printing , | Shape: | Custom Design |
| Highlight: | 2.54MM Pitch Matrix Membrane Switch,2.54MM Pitch diy membrane switch,Embeded Matrix Membrane Switch |
||
Product Description
Automatic Printing Matrix Membrane Switch Embedded Flexible Prototype
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 2.54MM male connector |
| Adhesive | 3M adhesive or other |
| Button type | Metal snap dome |
| Circuit option | PET circuit flexible |
| Printing Method | Screen printing |
| Shape | Custom design |
Key Features
- Quiet Operation: Suitable for office environments or shared spaces with minimal noise
- Durability: Rated for millions of keystrokes with long lifespan
- Cost-Effective: Affordable solution compared to mechanical keyboards
- Multi-Layer Construction: Includes printed symbol layer, conductive traces layer, and support layer
- Tactile Feedback: Provides noticeable actuation point with slight resistance when pressed
Technical Specifications
Electrical Properties
| Operating voltage | ≤ 50VDC |
| Operating Current | ≤ 100mA |
| Contact resistance | 0.5 ~ 10Ω |
| Insulation resistance | ≥ 100MΩ (100VDC) |
| Substrates withstand voltage | 2kDVC |
| Rebound time | ≤ 6ms |
Mechanical Behavior
| Service life | > 1 million times |
| Closed displacement | 0.1 ~ 0.4mm (tactile) 0.4 ~ 1.0mm |
| Standard force | 15 ~ 750g force |
Environmental Performance
| Operating Temperature | 20°C ~ +70°C |
| Storage temperature | -40°C to +85°C at 95% ± 5% humidity |
| Gas pressure | 86 ~ 106KPa |
Our Services
- Custom design available (OEM and ODM welcome)
- Professional support from experienced staff
- Unique solutions provided by trained engineers
- Quick response within 24 working hours
- High quality products with thorough testing and short lead times

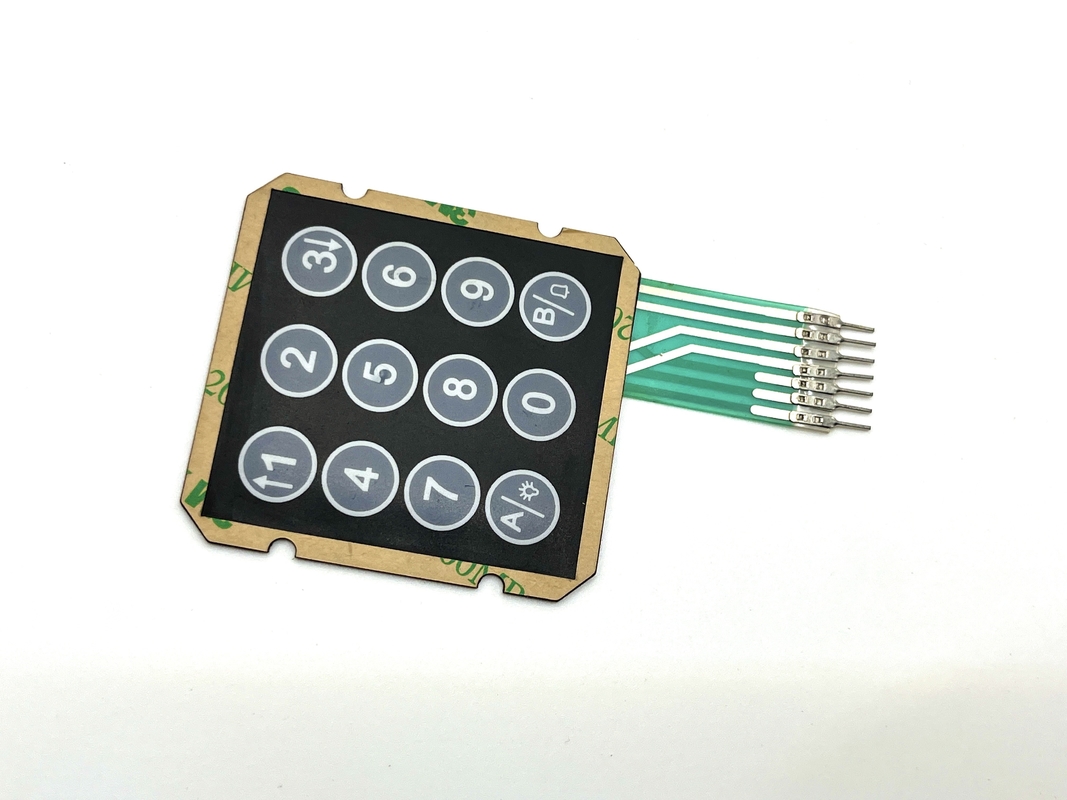

Product Images
