Industrial Flat Membrane Switch 1.25MM Pitch Durable Construction For Metal Detector
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241031-06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 30000 +pcs + a Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone , RAL , CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM ,2.54MM Or 0.5MM | Adhesive: | 3M Adheisve |
| Size: | Custom Design Any Size Or Shape Based On Client Requetment | Contact Fingers: | Silver And Carbon |
| Life Cycle: | 1 Million Times | Printing: | Silk Screen Printing |
| Highlight: | Industrial Flat Membrane Switch,1.25MM Pitch Flat Membrane Switch,1.25MM Pitch membrane switch button |
||
Product Description
Industrial Flat Membrane Switch Durable Construction For Metal Detector
Product Specifications
| Attribute | Value |
|---|---|
| Material | PET or PC |
| Color | Pantone, RAL, CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
| Adhesive | 3M adhesive |
| Size | Custom design any size or shape based on client requirement |
| Contact Fingers | Silver and Carbon |
| Life Cycle | 1 million times |
| Printing | Silk Screen Printing |
Product Features
- Customizability - Can be printed with custom graphics, colors, and textures. Layouts can be tailored to specific user needs.
- Thin Profile - Provides a sleek and compact design, making them ideal for tight spaces.
- Sealed Design - Often water and dust-resistant, enhancing durability in various environments.
- Construction - Made of layers of flexible material, often with a graphic overlay. Typically includes a spacer layer that separates the circuit layers when not pressed.
- Switching Mechanism - When a key is pressed, the top layer makes contact with the circuit below, completing the electrical circuit.
Detailed Specifications
Overlay material: Polyester or Polycarbonate with different characteristics for various applications.
Embossing: Graphic overlay or up circuit can be embossed to insert metal stainless steel domes for tactile feedback.
Windows/LCD: Available in printed colors or transparent finishes for display functions.
Keys: Tactile keys with metal domes or non-tactile keys with printed silver spot on circuit.
LEDs: Miniature LEDs available in multiple colors including white, green, red, blue, yellow, orange.
Cables: Screen printing conductive silver cable, copper plated cable/Polyimide or FPC, PCB cable.
Connectors: Zero insertion force (ZIF), female connector, or male connector options.
Shielding: Gasket seal/waterproof protection or EMI/RFI/ESD shielding options.
Standard Tolerances: +/-0.2MM
Performance Index
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force | Non-tactile 60g to 300g (2oz to 10oz) Tactile 150g to 400g (6oz to 14oz) |
| Switch Stroke | Non-tactile 0.1 to 0.5mm Tactile 0.6 to 1.5mm |
|
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
|
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds | |
Our Services
- Reply to your inquiry within 24 working hours
- Custom design available - OEM and ODM welcome
- Experienced staff available to answer all questions in professional English
- Unique solutions provided by our well-trained engineers
- High quality products with thorough testing and short lead times
- Custom shapes, sizes, colors, and technologies available
- Samples provided for approval before mass production

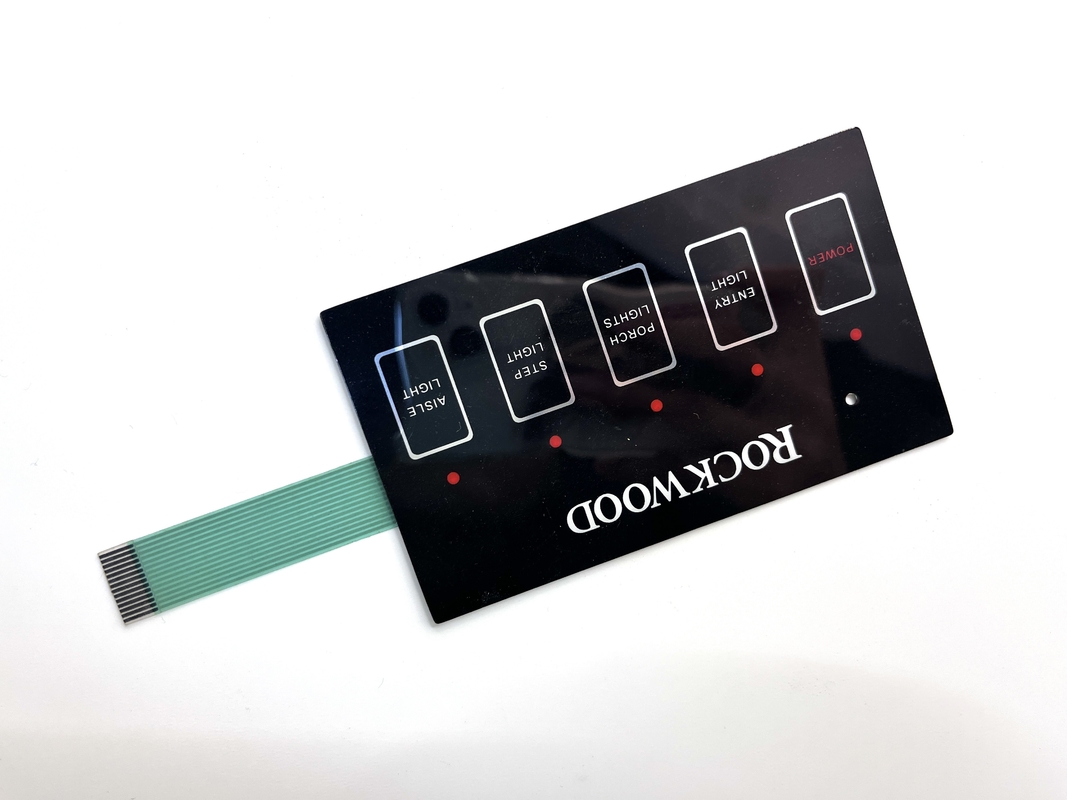

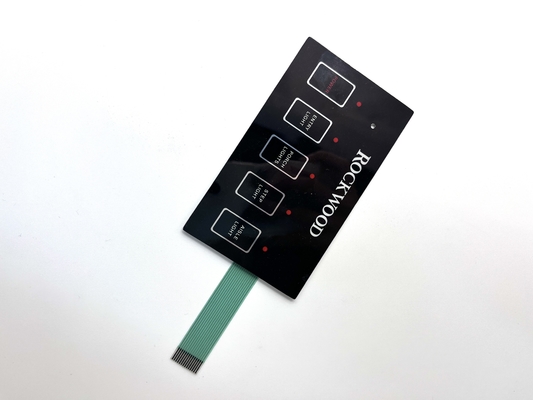

Product Images
