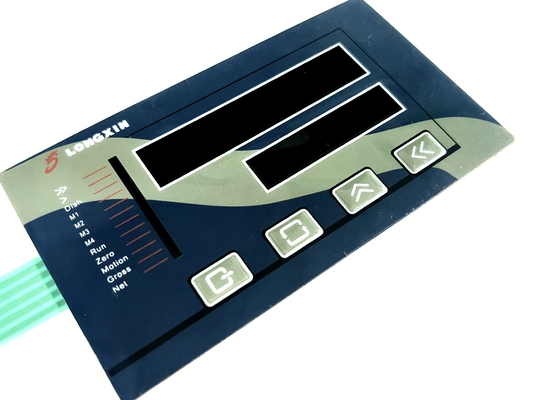

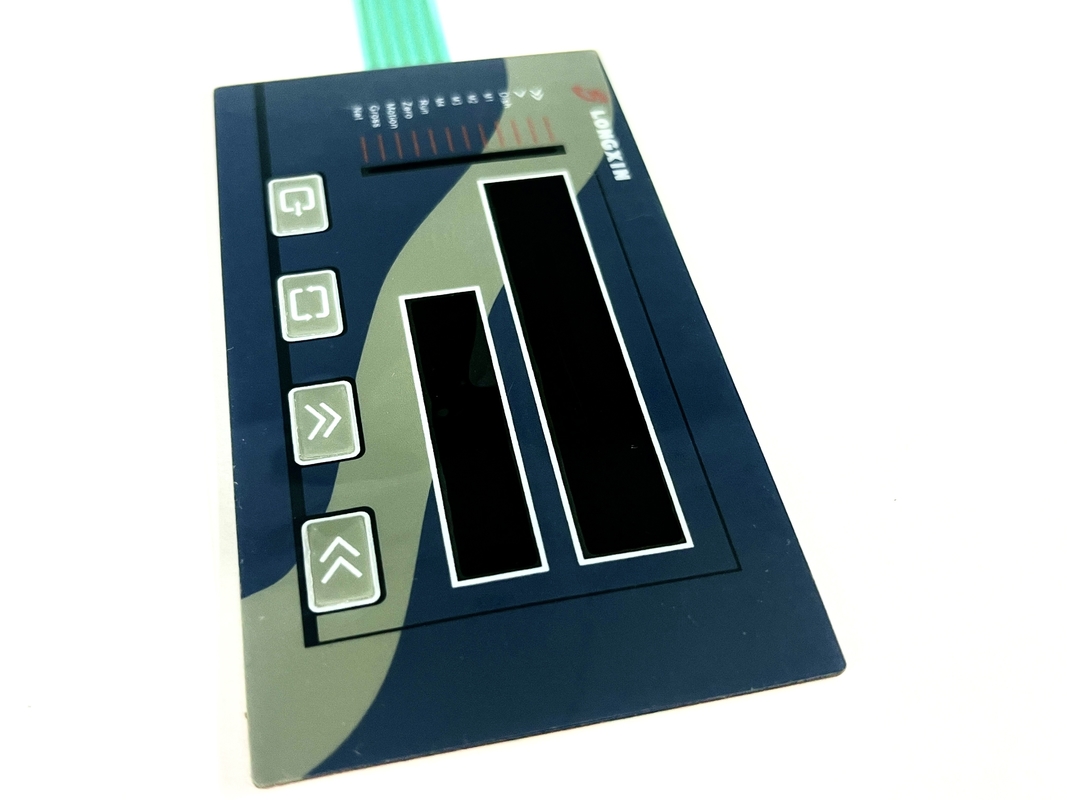

Polycarbonate Standard Membrane Switch Low Profile Lightweight
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0703-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 50000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM ,single-row Crimp Housing | Adhesive: | Scotch 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Connector Type: | Female Connector |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit |
| Highlight: | Polycarbonate Standard Membrane Switch,Lightweight keypad membrane switch,Lightweight Standard Membrane Switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 2.54MM, single-row crimp housing |
| Adhesive | scotch 3M467 adhesive or others |
| Button type | metal dome |
| Connector type | female connector |
| PN | Membrane switch, Membrane keypad, keyboard, overlay |
| circuit options | silver flex circuit |
Polyester dome tactile switches are mechanical switches commonly used in keyboards, keypads, and other input devices. These switches offer reliable performance and tactile feedback for various applications.
- Tactile Feedback: Distinct "click" sensation when pressed
- Dome Structure: Polyester dome collapses to create feedback
- Durability: 5-10 million keystroke lifespan
- Low Profile: Ideal for thin, compact devices
- Cost-Effective: Economical manufacturing solution
- Actuation Force: 50-60 gram range
Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use
Polycarbonate: Wide range of finishes and thicknesses, cost-effective, suitable for internal/external use
Graphic overlay or circuit can be embossed to accommodate metal stainless steel domes for enhanced tactile response:
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
Windows/LCD: Printed color windows (red, black, etc.) or transparent finishes
Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot)
LEDs: Miniature LEDs available in white, green, red, blue, yellow, orange
EL & Sensors: EL lighting and sensor integration options
- Screen printed conductive silver cable
- Copper plated cable/Polyimide or FPC
- PCB cable
- Zero insertion force (ZIF) with 0.5MM, 1.0MM, 1.25MM pitch
- Female connector with 2.54MM pitch
- Male connector
Shielding: Gasket seal/waterproof protection or EMI/RFI/ESD shielding with aluminum foil/clear ITO conductive polyester
Rear Adhesive: 3M double-side mounting glue standard (other brands available)
Back Plate: Aluminum, Polycarbonate, Acrylic or PMMA options
Color Matching: PMS or RAL preferred (CMYK/RGB acceptable)
Standard Tolerances: +/-0.2MM
- Submit drawings, specifications, or photos (or complete our quotation form)
- Confirm order details and approve artwork before sampling
- Artwork confirmation within 3 days, samples delivered in 4-5 business days
- Production lead time typically 7-10 business days (varies by quantity/complexity)
- 24-hour response to inquiries
- Custom design, OEM and ODM services
- Professional English support from experienced staff
- Engineer-developed solutions for unique requirements
- Quality testing and short lead times
- Flexible options for buttons, LEDs, sensors, and other components
- Artwork approval and sample review before production
