Customizable Tactile Membrane Keyboard Membrane Switch Keypad Compact With Adhesive Layer
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241102-14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 20000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Adhesive: | Scotch 3M467 Adheisve Or Others | Button Type: | Metal Dome |
| Connector Type: | Female Connector | Circuit Options: | Silver Flex Circuit |
| Overlay Printing Option: | Monochrome Screen Printing | Tail Length: | Customizable |
| Lcd Options: | Transparent Window | Insulation Resistance: | ≥ 100MΩ |
| Embossing Shape: | Rim Embosing | Storage Temperature: | -40℃ To 85℃ |
| Highlight: | Compact Tactile Membrane Keyboard,Compact Membrane Switch Keypad,Customizable Membrane Switch Keypad |
||
Product Description
Customizable Tactile Membrane Keyboard Membrane Switch Keypad Compact With Adhesive Layer
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Adhesive | scotch 3M467 adhesive or others |
| Button type | metal dome |
| Connector type | female connector |
| Circuit options | silver flex circuit |
| Overlay Printing Option | Monochrome screen printing |
| Tail Length | Customizable |
| Lcd Options | Transparent window |
| Insulation Resistance | ≥ 100MΩ |
| Embossing Shape | Rim embossing |
| Storage Temperature | -40℃ to 85℃ |
Product Description
Back Tinted LCD Window Polyester SMT Tactile Switch With Adhesive Layer
Key Features
- Electrical Characteristics:
- Contact Ratings: 50mA to 100mA at 12V to 24V
- Low Operating Force: Minimal activation force for user-friendly operation
- Durability:
- Lifespan: Hundreds of thousands to millions of cycles
- Environmental Resistance: Dust and moisture resistant for various applications
- Design:
- Compact Size: Surface-mounted design saves PCB space
- Low Profile: Suitable for space-constrained devices
- Actuation:
- Tactile Feedback: Noticeable click confirms activation
- Momentary Action: Completes circuit only while pressed
Detailed Specifications
Overlay Material (Front/Face)
Polyester | Polycarbonate
- Highly versatile for embossing
- Highly resistant to chemicals
- Excellent durability
- Suitable for internal and external use
Embossing
Graphic overlay or up circuit can be embossed to insert stainless steel domes for tactile feedback. Options include:
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
Windows/LCD
For display functions:
- Printed color windows (red, black, etc.)
- Transparent finish windows
Keys
- Tactile Keys: Metal domes or poly domes with various diameters and pressure options
- Non-tactile keys: Printed silver spot on circuit
LEDs
Miniature LEDs available in white, green, red, blue, yellow, orange and other colors
EL and Sensors/Inductors
EL can illuminate any desired area, and sensors can function like LEDs
Cables
Circuit extension for device communication:
- Screen printing conductive silver cable
- Copper plated cable/Polyimide or FPC
- PCB cable
Connector Types
- Zero insertion force (ZIF) with 0.5MM, 1.0MM, 1.25MM pitch
- Female connector with 2.54MM pitch
- Male connector
Shielding
Protection functions:
- Gasket seal/Waterproof: Protects against humidity and splashes
- EMI/RFI/ESD Shielding: Uses Aluminum foil or clear ITO conductive polyester
Rear Adhesive
Primarily uses 3M double-side mounting glue (USA brand), also accepts Lohmann and others
Back Plate
Available in Aluminum, Polycarbonate, Acrylic or PMMA
Matching Color
PMS or RAL preferred, CMYK or RGB acceptable if PMS/RAL is provided
Standard Tolerances
+/-0.2MM
Technical Specifications
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome: -20°C to +80°C
Storage temperature: Flat/Metal dome: -40°C to +80°C
Life expectancy: Flat type ≥5,000,000 cycles, Tactile type ≥1,000,000 cycles
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH

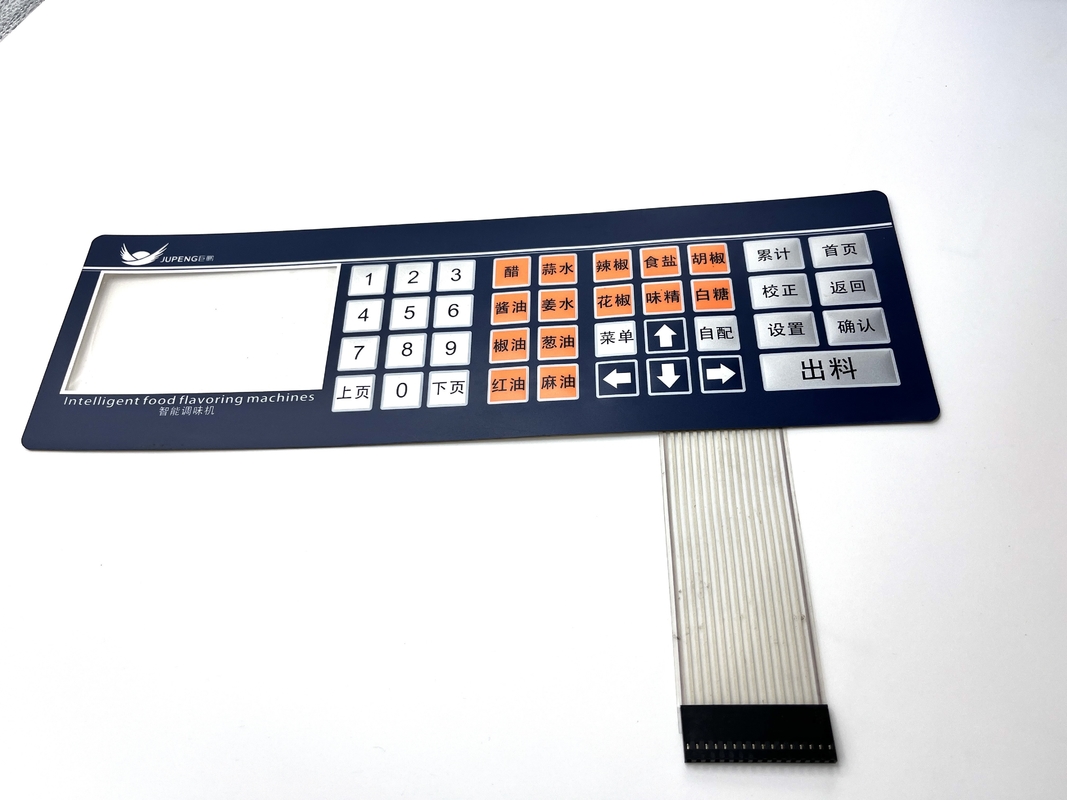

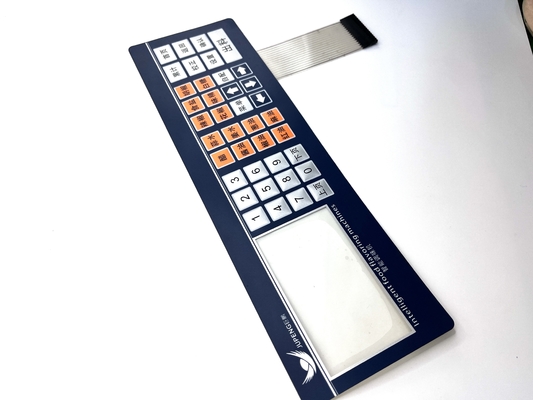

Product Images
Ordering Process
- Send drawings, specifications or photos of your product or complete our quotation form
- Confirm order details and approve artwork before sampling
- We provide artwork confirmation within 3 days before sample production
- Standard sample lead time: 4-5 business days
- Mass production lead time: Typically 7-10 business days (varies by production schedule and order quantity)
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM welcome)
- Professional English support from experienced staff
- Unique solutions from trained engineers
- Quality testing and short lead times
- Custom shapes, sizes, colors, and technologies (buttons, LEDs, sensors, etc.)
- Pre-production samples and artwork approval to reduce costs
