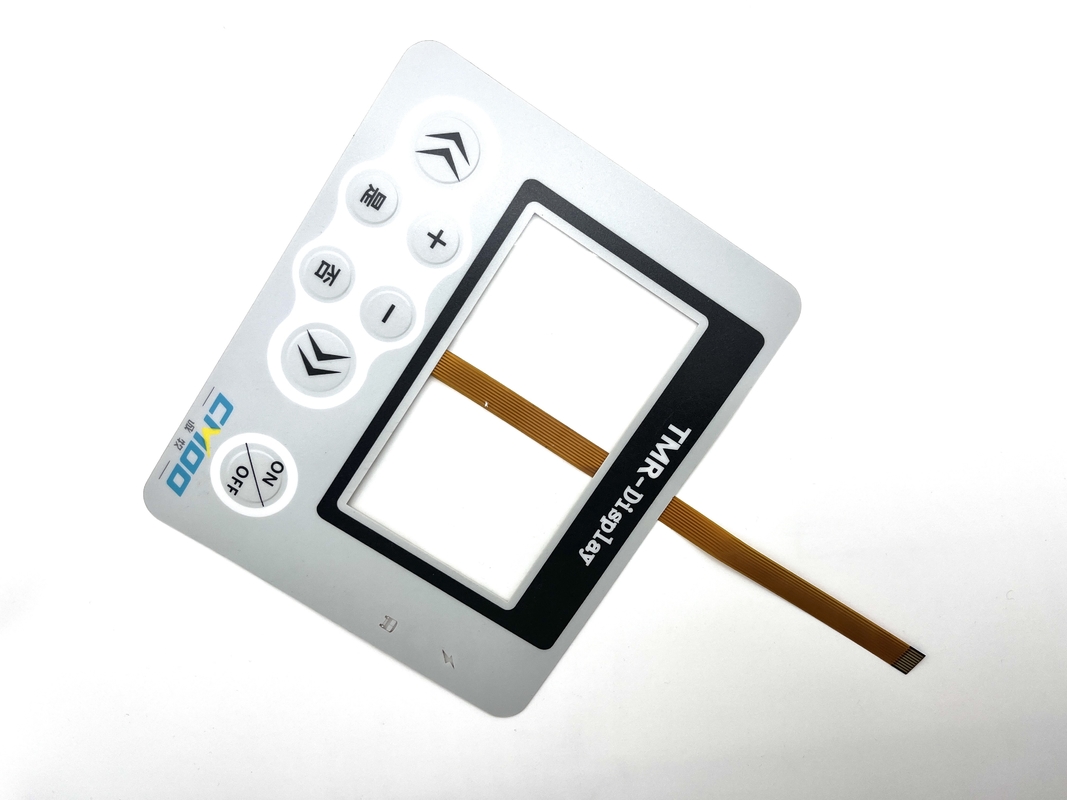

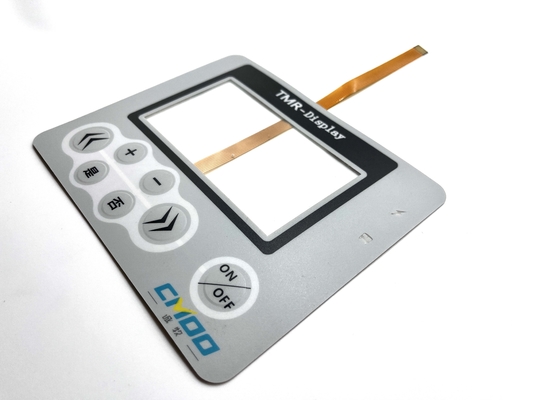

User Friendly Standard Membrane Switch UV Resistant 0.175MM Thickness With Metal Dome
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241108-06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 42000 +pcs +a Month |
|
Detail Information |
|||
| Overlay Material: | Polyester Or Polycarbonate ,silicone Or Custom Design | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Adhesive: | 3M Adheisve,Sony Or Others | Button Type: | Poly Dome ,flat,metal Dome Or Silicone |
| Embossing Shape: | Rim Or Pollow Embosing | Total Thickness: | 0.175MM-1.0MM |
| LCD Options: | Transparent ,Tinted ,Cutout | Pitch Of Connector: | 1.0MM ,1.25MM ,2.54MM Or 0.5MM |
| Highlight: | 0.175MM Thickness Standard Membrane Switch,0.175MM Thickness membrane keypad with led,UV Resistant Standard Membrane Switch |
||
Product Description
| Attribute | Value |
|---|---|
| Overlay Material | Polyester or Polycarbonate, silicone or custom design |
| Color | Pantone, RAL CMYK, RGB or samples |
| Adhesive | 3M adhesive, Sony or others |
| Button type | Poly dome, flat, metal dome or silicone |
| Embossing shape | Rim or Pillow embossing |
| Total thickness | 0.175MM-1.0MM |
| LCD options | Transparent, Tinted, Cutout |
| Pitch of connector | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
- Characteristics: Similar to linear or tactile switches but designed to minimize noise
- Example: Cherry MX Silent Red, Gateron Silent Brown
- Use Case: Ideal for quiet environments or shared workspaces
- Characteristics: Unique designs that may combine features or offer different actuation points
- Examples:
- Optical Switches: Use light-based actuation for faster response times
- Low-profile Switches: Designed for slim keyboards, providing a shorter travel distance
- Characteristics: Smooth keystroke with no tactile bump or audible click
- Example: Cherry MX Red, Gateron Red
- Use Case: Preferred by gamers for fast, uninterrupted key presses
- Characteristics: Tactile bump along with an audible click sound when the key is pressed
- Example: Cherry MX Blue, Gateron Blue
- Use Case: Favored by typists who enjoy the sound and feel of a click
- Characteristics: A noticeable bump in the middle of the keystroke, providing feedback without an audible click
- Example: Cherry MX Brown, Gateron Brown
- Use Case: Good for typists who prefer some feedback without noise
| Environmental | Operating Temperature: -40°C to +80°C (-40°to 176°F) Storage Temperature: -40°C to +85°C (-40°to 185°F) Humidity: 40°C, 90% to 95% for 240 hours Vibration: 20G's max. |
|---|---|
| Mechanical | Actuation Force: Non-tactile 60g to 300g (2oz to 10oz) Tactile 150g to 400g (6oz to 14oz) Switch Stroke: Non-tactile 0.1 to 0.5mm Tactile 0.6 to 1.5mm Life Expectancy: Non-tactile >5 million actuations Tactile >1 million actuations |
- Highly versatile for embossing
- Highly resistant to chemicals
- Better durability
- For internal and external use
- Wide range of surface finishes and thicknesses
- More cost-effective
- For internal and external use
- Rim embossing
- Pillow embossing
- Dim embossing
- Pedestal embossing
Graphic overlays can be embossed to insert domes (tactile), leave space for mechanical keys and provide tactile indications.
- Print colors windows
- Transparent finishes windows
- Tactile keys: with metal dome or poly dome
- Non-tactile: silver printing spot
- Miniature LED
- LED colors: white, yellow, orange, green, red, etc.
An extension of the printed circuit used to communicate with your device
- Zero insertion force (ZIF) connector
- Female connector
- Male connector
Uses aluminum foil shielding or clear ITO electrical conductive polyester
Mostly used are 3M-double-side glue
Available in aluminum, polycarbonate or acrylic
Taida is an OEM professional specializing in designing and manufacturing membrane switches, graphic overlays and adhesive stickers/labels with more than 15 years experience in Shenzhen, China. Our products are widely used in industrial, electronics, household appliance, and medical equipment applications.
We serve more than 500 different customers worldwide, with most coming from USA, EU, UK, Middle East and other global markets. Taida can supply different kinds of membrane switches based on each client's specific requirements.
- Factory Area: Over 2000 Square meters
- Employees: >70
Continued quality improvement, professional technical support and latest design from our R&D department for customers' demand or samples.
Strong productivity and unified producing process to ensure the fastest delivery time.
20% of employees are QC/QA workers, ensuring guaranteed quality.
Powerful dispatch ability to ensure shipping accuracy and speed.
