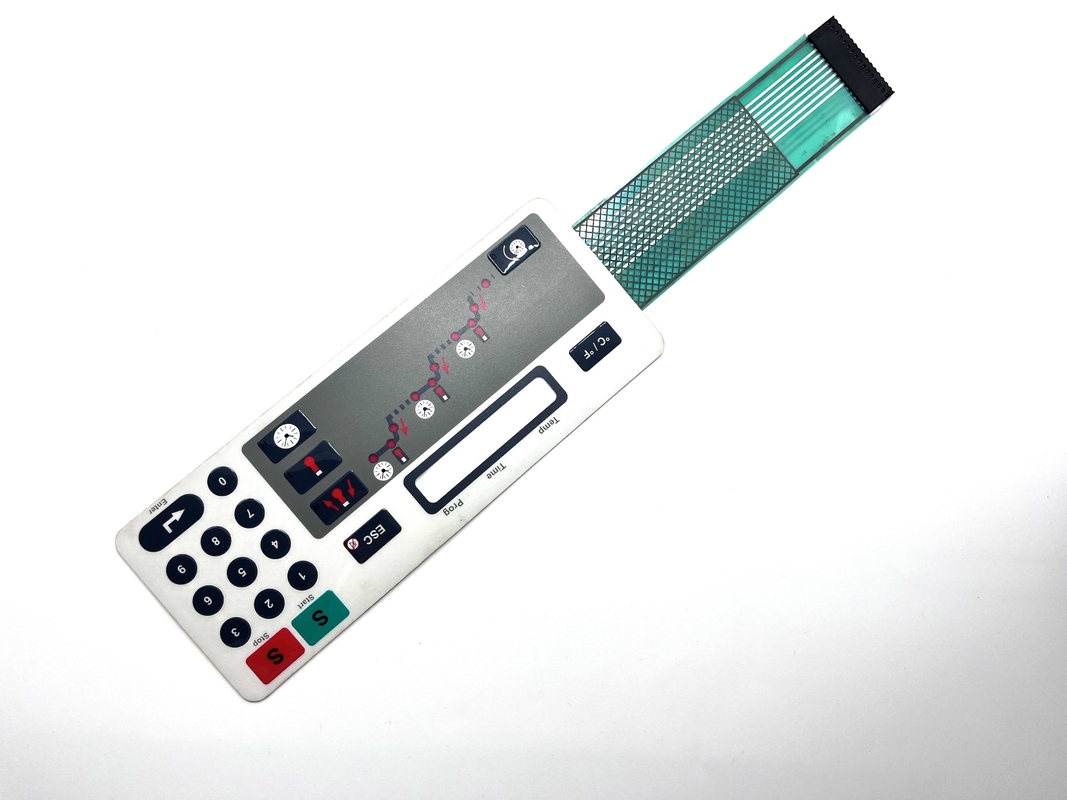

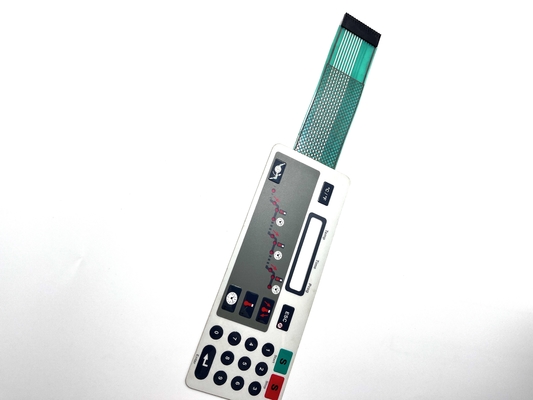

Tactile Keypad Membrane Switch Keypad Dome Switch Hygienic Customizable 0603 LED
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241106-17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 30000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Pitch Of Connect: | 2.54MM Or Others |
|---|---|---|---|
| Button Type: | Poly Dome | LCD Options: | Transparent Window |
| Circuit Options: | Silver Flex Circuit | Storage Temperature: | -40℃ To 85℃ |
| Life Cycle: | 1 Million Times | Led Type: | 0805 Or 0603 |
| Highlight: | Tactile keypad membrane switch,Tactile Keypad Dome Switch,Hygienic keypad membrane switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Pitch of Connect | 2.54MM or others |
| Button type | poly dome |
| LCD options | Transparent window |
| Circuit options | silver flex circuit |
| Storage Temperature | -40℃ to 85℃ |
| Life Cycle | 1 million times |
| Led Type | 0805 or 0603 |
- Normally Closed (NC): Allows current to flow until the button is pressed, which interrupts the flow.
- Normally Open (NO): Allows current to flow only when the button is pressed.
- Voltage Ratings: Designed to handle various voltages depending on application
- Tactile Feedback: Provides noticeable click or feel when pressed
- Variety of Styles: Available in different shapes, sizes, and materials (plastic, metal)
- Industrial Equipment: Emergency stops or control functions
- Automotive: Horn activation or window controls
- Consumer Electronics: Keyboards and remote controls
Polyester - Highly versatile for embossing, resistant to chemicals, better durability, suitable for internal and external use
Polycarbonate - Wide range of surface finishes and thicknesses, cost-effective, suitable for internal and external use
Graphic overlay or up circuit can be embossed to insert metal stainless steel domes for tactile feedback when pressed. Options include:
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
Available with printed color windows (red, black, etc.) or transparent finishes for display functions
Tactile Keys: Metal domes or Poly domes with various diameters and pressure options
Non-tactile keys: Printed silver spot on the circuit
Miniature LEDs available in white, green, red, blue, yellow, orange and other colors
- Spring time: ≤ 6ms
- Working current: ≤ 100mA
- Contact resistance: 0.5 ~ 5Ω
- Operating voltage: ≤ 50VDC
- Substrate voltage: 2kDVC
- Insulation ink voltage: 100VDC
- Loop resistance: 60Ω
- Custom shapes, sizes, colors, and technologies including buttons, LED mounting, and sensors
- OEM and ODM services available with custom designs
- 24-hour response time for inquiries
- Professional engineering support for unique solutions
- Quality testing and short lead times
- Sample approval process before mass production
- Artwork confirmation before proofing
A: Generally packed in neutral white boxes and brown cartons. Branded packaging available with authorization.
A: 50% deposit via T/T, 50% balance before delivery with product photos.
A: EXW, FOB options available.
A: Typically 10-15 days after receiving deposit, depending on order specifics.
A: Yes, we can produce based on samples or technical drawings, including mold creation.
A: Samples available for stock items with payment of sample and courier costs.
A: Yes, we perform 100% testing before delivery.
A: We maintain quality and competitive pricing while treating every customer as a valued partner.
