High Effective LED Membrane Switch Flexible Membrane Switch Industrial With 3M Rear Adhesive
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 072-021 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 8000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome Or Metal Snap Dome | Size: | Custom Design |
| Operating Temperature: | -20°C To 120°C | Printing Method: | Screen Printing ,digital Printing Or Others |
| Total Thickness: | 0.8mm-1.5mm | LED Color: | Blue ,white ,red Or Other Request |
| LED Type: | 0805 ,0603 Or Other | LED Window: | Semi-transparent White Or Clear |
| Connector Type: | ZIF Connector Or Female Connector | Shape: | Custom Design |
| Highlight: | High Effective LED Membrane Switch,High Effective lexible Membrane Switch,Industrial LED Membrane Switch |
||
Product Description
High Effective LED Membrane Switch Flexible Membrane Switch Industrial With 3M Rear Adhesive
Product Specifications
| Material | Polyester or Polycarbonate or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome or Metal snap dome |
| Size | Custom design |
| Operating Temperature | -20°C to 120°C |
| Printing Method | Screen printing, digital printing or others |
| Total Thickness | 0.8mm-1.5mm |
| LED color | Blue, white, red or other request |
| LED type | 0805, 0603 or other |
| LED window | Semi-transparent white or clear |
| Connector type | ZIF connector or female connector |
| Shape | Custom design |
Product Description
Waterproof LED Backlight Custom Membrane Control Panel Label With 3M Rear Adhesive
Control panel labels are essential components for various equipment and applications requiring user-facing control interfaces. Common applications include:
Industrial Applications
- Manufacturing equipment (CNC machines, assembly lines, packaging machines)
- Process control panels (chemical processing, power generation, water treatment)
- Automation and robotics control interfaces
Building Management
- HVAC control panels
- Electrical distribution panels and switchgear
- Building automation and security control systems
Medical Equipment
- Medical imaging devices (X-ray, MRI, CT scanners)
- Diagnostic equipment (patient monitors, laboratory analyzers)
- Surgical and therapeutic devices
Membrane Switch Specifications
Material Options
Polyester:
- Highly versatile for embossing
- Highly resistant to chemicals
- Superior durability
- Suitable for internal and external use
Polycarbonate:
- Wide range of surface finishes and thicknesses
- More cost-effective
- Suitable for internal and external use
Key Features
- Embossing: Rim embossing, pillow embossing, dim embossing, pedestal embossing
- Windows: Print colors windows, transparent finishes windows
- Keys/Buttons: Tactile keys (metal dome or poly dome), Non-tactile (silver printing spot)
- Embedded LEDs: Miniature LED in various colors (white, yellow, orange, green, red, etc.)
- Cable: Printed circuit extension for device communication
- Connector Types: ZIF connector, female connector, male connector
- EMI/RFI/ESD Shielding: Aluminum foil shielding or clear ITO electrical conductive polyester
- Adhesive: Primarily 3M double-side glue
- Backplate: Available in aluminum, polycarbonate or acrylic
Performance Index
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm | |
| Switch Stroke (Tactile) | 0.6 to 1.5mm | |
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
|
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds |
Our Services
- Response to inquiries within 24 working hours
- Custom design available - OEM and ODM welcome
- Professional support from experienced English-speaking staff
- Unique solutions provided by trained engineers
- High quality products with thorough testing and short lead times

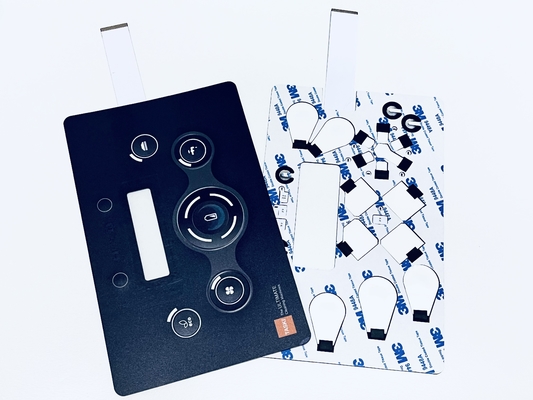

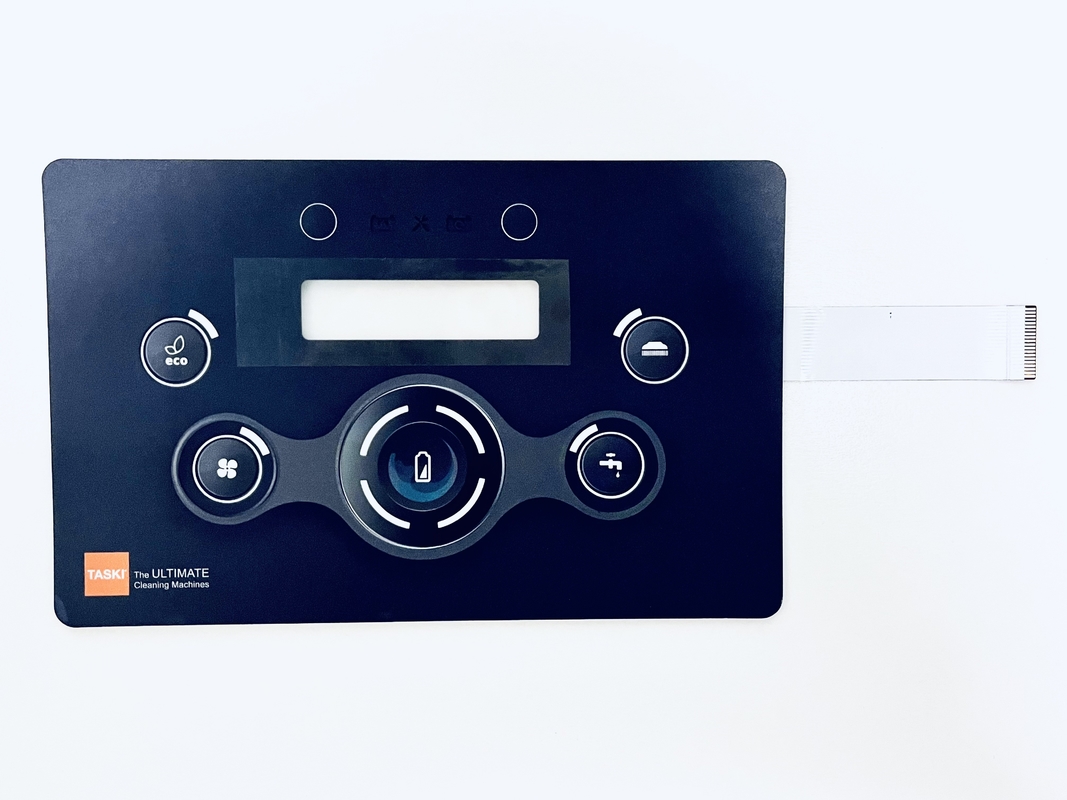

Product Images
