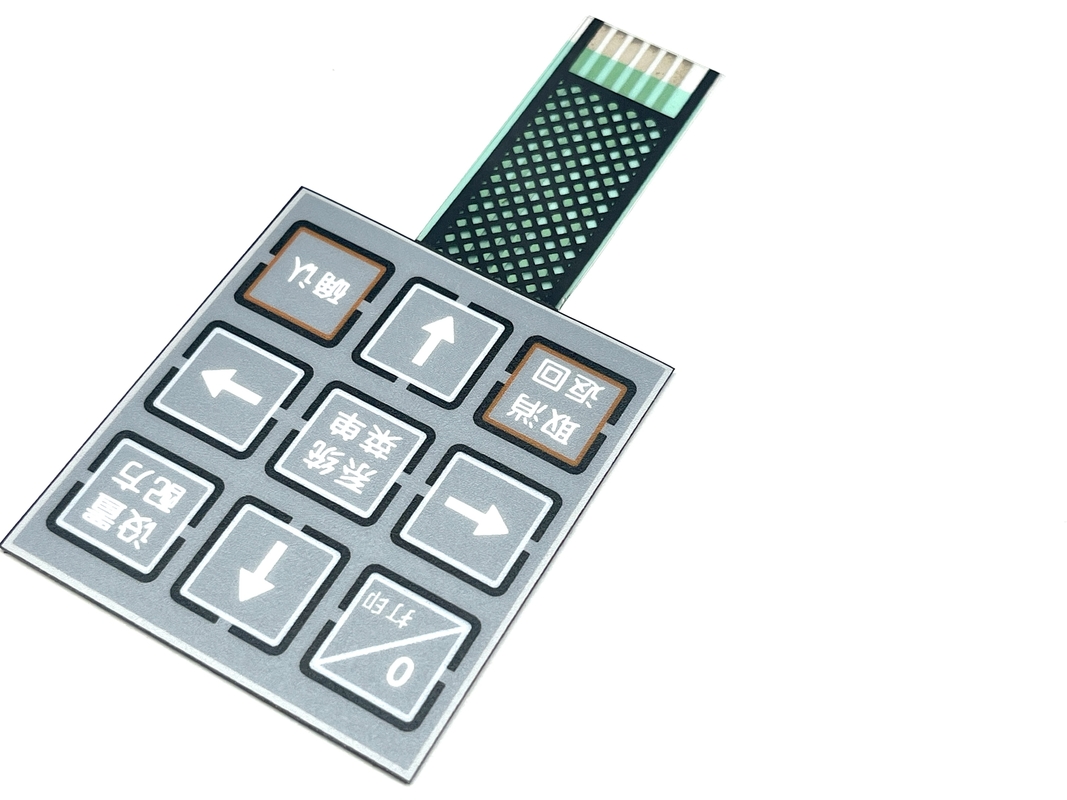

Lightweight Membrane Touch Control Panel Durable Long Lasting 2.54MM Pitch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0625-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 90000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK , |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM , | Adhesive: | 3M Adheisve Or Others |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit |
| Surface Finish: | Velvet Texture | Connector Brand: | NICOMATIC Female |
| Highlight: | 2.54MM Pitch Membrane Touch Control Panel,2.54MM Pitch membrane keypad custom,Long Lasting Membrane Touch Control Panel |
||
Product Description
Lightweight Membrane Touch Control Panel Durable Long Lasting
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK |
| Pitch of Connect | 2.54MM |
| Adhesive | 3M adhesive or others |
| PN | Membrane switch, Membrane keypad, keyboard, overlay |
| Circuit options | Silver flex circuit |
| Surface finish | Velvet texture |
| Connector brand | NICOMATIC Female |
Custom Rear Surface Printing ESD Shielding Membrane Switch Button With Flat Keys
ESD (Electrostatic Discharge) shielding protects sensitive electronic components from static electricity damage. Our membrane switches incorporate specialized ESD shielding layers made from conductive materials like metallized polyester or conductive fabric, with proper grounding for safe static dissipation.
Key Features
- Overlay Material: Polyester or Polycarbonate options with various finishes
- Embossing Options: Pedestal, Rim, Pillow, or Dim embossing for tactile response
- Display Windows: Printed color or transparent finishes for LCDs
- Key Types: Tactile (metal/poly domes) or Non-tactile (printed silver spot)
- LED Integration: Multiple color options available
- Cable Options: Screen printed silver, copper plated, or PCB cables
- Shielding: Gasket seal for waterproofing and EMI/RFI/ESD protection
Technical Specifications
- Operating voltage: ≤ 50VDC
- Working current: ≤ 100mA
- Contact resistance: 0.5 ~ 5Ω
- Insulation resistance: ≥ 100MΩ (100VDC)
- Substrate voltage: 2kDVC
- Spring time: ≤ 6ms
- Loop resistance: 60Ω
- Insulation ink voltage: 100VDC
- Standard Tolerances: +/-0.2MM
Product Images
Our Services
- 24-hour response to inquiries
- Custom design, OEM and ODM services
- Professional engineering support
- Quality testing and short lead times
- Prototype samples before mass production
- Flexible solutions for any shape, size, or technology requirements
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging available with authorization.
Q2. What is your terms of payment?
A: 50% deposit, 50% before delivery with product photos provided.
Q3. What is your terms of delivery?
A: EXW, FOB options available.
Q4. How about your delivery time?
A: Typically 10-15 days after deposit, depending on order specifics.
Q5. Can you produce according to samples?
A: Yes, we can produce from samples or technical drawings, including mold creation.
Q6. What is your sample policy?
A: Samples available for stock items with customer covering costs.
Q7. Do you test all goods before delivery?
A: Yes, we perform 100% testing before shipment.
Q8. How do you maintain long-term relationships?
A: Through quality products, competitive pricing, and treating every customer as a valued partner.
