Easy Cleaning Membrane Switch Overlay High Durability For Computer Keyboard
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20250303-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 11000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM ,1.0MM Or Other | Adhesive: | 3M467 Adheisve Or Others |
| Circuit Options: | Silver Flex Circuit | Surface Finish: | Velvet Texture |
| Highlight: | Easy Cleaning Membrane Switch Overlay,Easy Cleaning custom membrane keypad,High Durability Membrane Switch Overlay |
||
Product Description

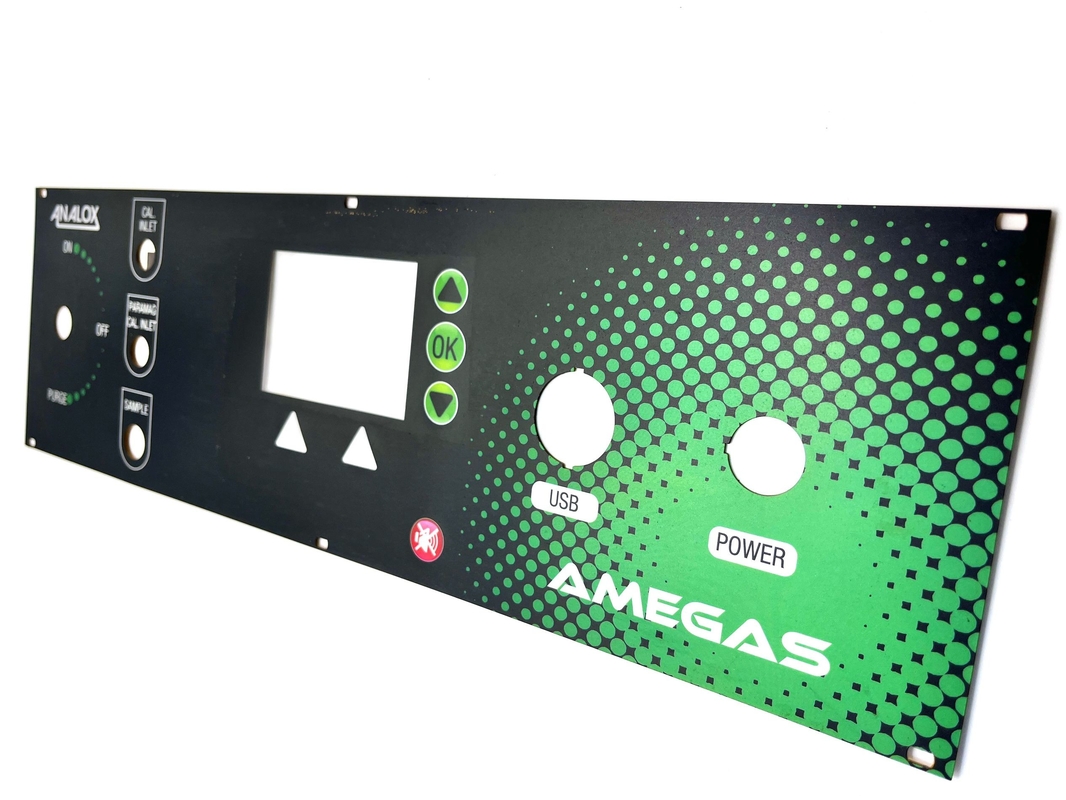

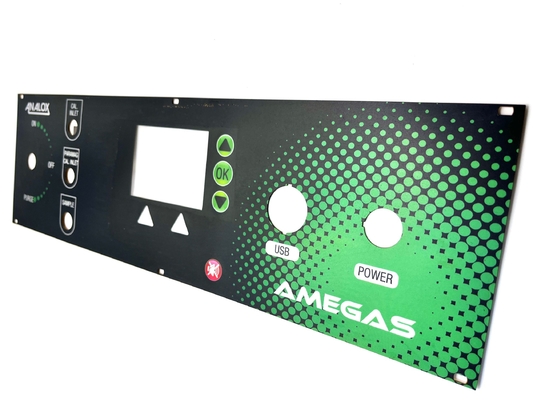

Easy Cleaning Membrane Switch Overlay High Durability For Computer Keyboard
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 2.54MM, 1.0MM or other |
| Adhesive | 3M467 adhesive or others |
| Circuit options | Silver flex circuit |
| Surface finish | Velvet texture |
PET Static Electricity Shielding Membrane Switch Overlay
Key Features:
- Customization: Available in different colors, textures, and graphics to match branding or functional requirements
- Protection: Shields underlying electronic components from dust, moisture, and mechanical damage
- Thin Profile: Low-profile design ideal for space-constrained applications
- Easy Cleaning: Smooth surface allows for simple maintenance
- Touch Sensitivity: Compatible with tactile feedback or capacitive touch designs
Applications:
- Consumer Electronics: Remote controls, appliances, and other devices
- Medical Devices: Equipment requiring hygiene and ease of use
- Industrial Equipment: Control panels and machinery interfaces
- Automotive: Dashboard controls and infotainment systems
Technical Details
Overlay Material (Front/Face):
Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use
Polycarbonate: Wide range of surface finishes and thicknesses, cost-effective, suitable for internal/external use
Embossing Options:
Graphic overlay or circuit can be embossed to accommodate metal stainless steel domes for tactile response
Types: Pedestal, Rim, Pillow, Dim embossing
Windows/LCD:
Printed color windows (red, black, etc.) or transparent finish windows
Keys:
Tactile Keys: Metal domes or poly domes with various diameters and pressure options
Non-tactile Keys: Printed silver spot on circuit
LEDs:
Miniature LEDs available in white, green, red, blue, yellow, orange and other colors
Cables:
Screen printed conductive silver cable, copper plated cable/Polyimide or FPC, PCB cable
Connectors:
Zero insertion force (ZIF) with 0.5MM, 1.0MM, 1.25MM pitch; Female connector with 2.54MM pitch; Male connector
Shielding:
Gasket seal/Waterproof: Protects conductors from humidity and splashes
EMI/RFI/ESD Shielding: Aluminum foil shielding or clear ITO electrical conductive polyester
Standard Tolerances:
+/-0.2MM
Electrical Properties
- Operating voltage: ≤ 50VDC
- Working current: ≤ 100mA
- Contact resistance: 0.5 ~ 5Ω
- Insulation resistance: ≥ 100MΩ (100VDC)
- Substrate voltage: 2kDVC
- Spring time: ≤ 6ms
- Loop resistance: 60Ω
- Insulation ink voltage: 100VDC
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM welcome)
- Professional English support from experienced staff
- Unique solutions from trained engineers
- Quality testing and short lead times
- Custom shapes, sizes, colors, and technologies
- Sample approval process before mass production
Product Images
Company Information
Download About Taida.pdfFrequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
