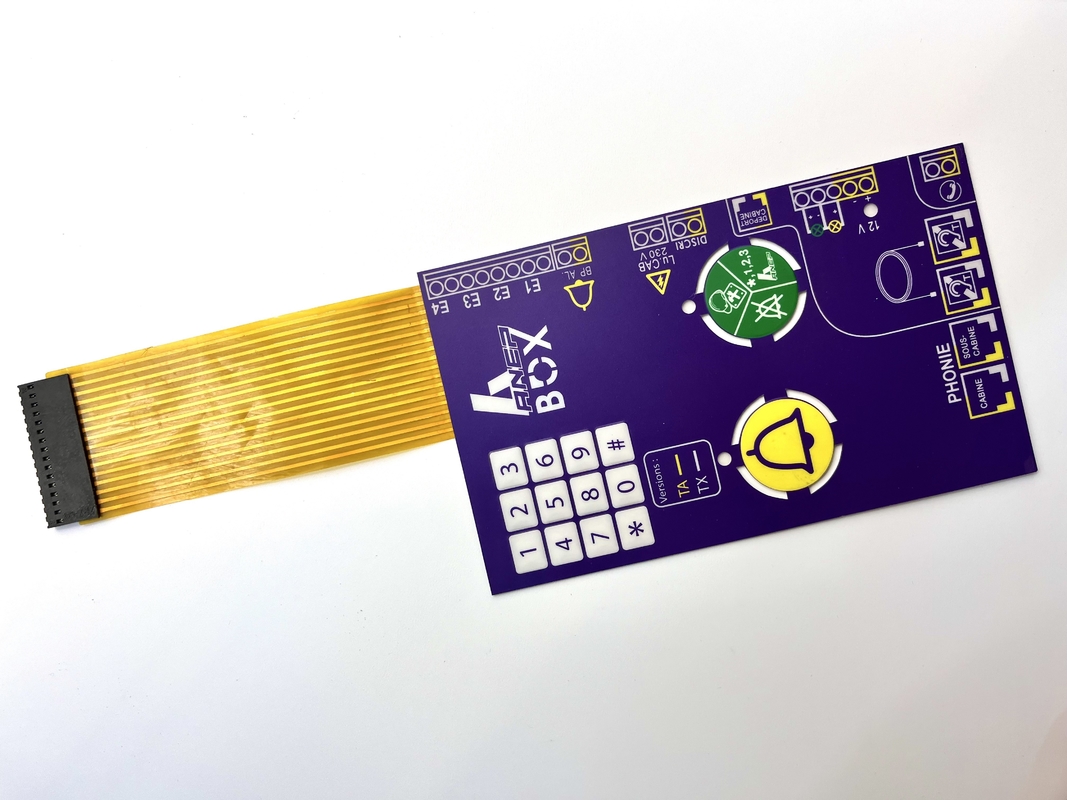

Multifunctional Custom Membrane Switch Waterproof Chemical Resistant 1.25MM Pitch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 240705-226 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T, PAYPAL |
| Supply Ability: | 15000 +pcs +a Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone , RAL Or CMYK Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome Or Embossing Dome | Size: | Custom Design Or Shape Based On Client Requetment |
| Storage Temperature: | -40℃ To 70℃ | Operating Temperature: | -40℃ To 70℃ |
| Contact Fingers: | Silver And Carbon | Life Cycle: | 1 Million Times |
| Printing: | Silk Screen Printing | Type: | Flexible |
| Conductor: | Printed Silver | Insulation Resistance: | > 100MΩ |
| Highlight: | 1.25MM Pitch Custom Membrane Switch,1.25MM Pitch digital graphic overlay,Chemical Resistant digital graphic overlay |
||
Product Description
Multifunctional Custom Membrane Switch Waterproof Chemical Resistant
Product Specifications
| Attribute | Value |
|---|---|
| Material | PET or PC |
| Color | Pantone, RAL or CMYK or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
| Adhesive | 3M adhesive or other request |
| Button type | Metal dome or Embossing dome |
| Size | Custom design or shape based on client requirement |
| Storage Temperature | -40℃ to 70℃ |
| Operating Temperature | -40℃ to 70℃ |
| Contact Fingers | Silver and Carbon |
| Life Cycle | 1 million times |
| Printing | Silk Screen Printing |
| Type | Flexible |
| Conductor | Printed silver |
| Insulation Resistance | > 100MΩ |
Product Description
Highly Versatile Waterproof Custom Membrane Switch Panel For Chemical Resistance
Key Features:
- Material Selection: Polyester or Polycarbonate for durability and chemical resistance
- Sealing Techniques: IP67 or IP68 rating available for waterproof protection
- Design Flexibility: Custom graphics and touch sensitivity options
- Chemical Resistance: Tested against specific chemicals with optional protective coatings
- Durability: Impact-resistant materials with wide temperature range operation
- Applications: Ideal for food processing, pharmaceuticals, and chemical manufacturing
- Customization: Available in custom sizes, shapes, and button layouts
Detailed Specifications:
Overlay material: Polyester or Polycarbonate for front/face overlay
Embossing: Graphic overlay or up circuit can be embossed for tactile feedback
Windows/LCD: Printed color windows or transparent finishes available
Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot) options
LEDs: Available in white, green, red, blue, yellow, orange and others
Cables: Screen printing conductive silver, copper plated, or PCB cable options
Connectors: ZIF (0.5MM-1.25MM pitch) or standard 2.54MM pitch options
Standard Tolerances: +/-0.2MM
Performance Index
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force | Non-tactile 60g-300g (2oz-10oz) Tactile 150g-400g (6oz-14oz) |
| Switch Stroke | Non-tactile 0.1-0.5mm Tactile 0.6-1.5mm |
|
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
|
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Contact Bounce | ≤ 5 milliseconds | |
Product Images
