Flexible Pcb Based Membrane Keypad UV Resistant 1.25MM Pitch With Flat Keys
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241031-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 90000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK , |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM，1.25MM，2.54MM ,or 0.5MM | Adhesive: | 3M Adheisve Or Others |
| Circuit Options: | Silver Flex Circuit | Surface Finish: | Velvet Texture |
| Embossing Shape: | Pillow Embosing | Type: | Flexible |
| Operating Temperature: | -20°C To 70°C | Circuit: | Printing Silver Ink On PET Material |
| Storage Temperature: | -40℃ To 70℃ | Led Color: | Green ,white Or Other Request |
| Highlight: | 1.25MM Pitch Pcb Based Membrane Keypad,1.25MM Pitch custom membrane keypad,UV Resistant Pcb Based Membrane Keypad |
||
Product Description

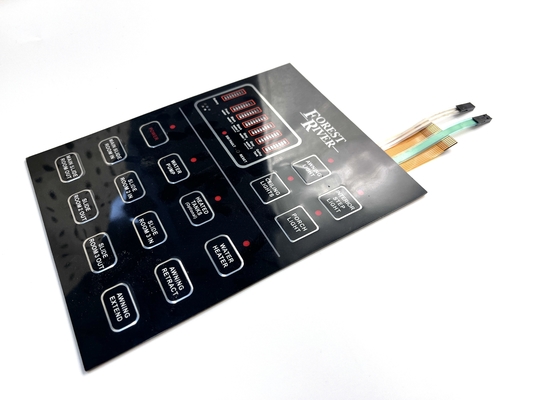

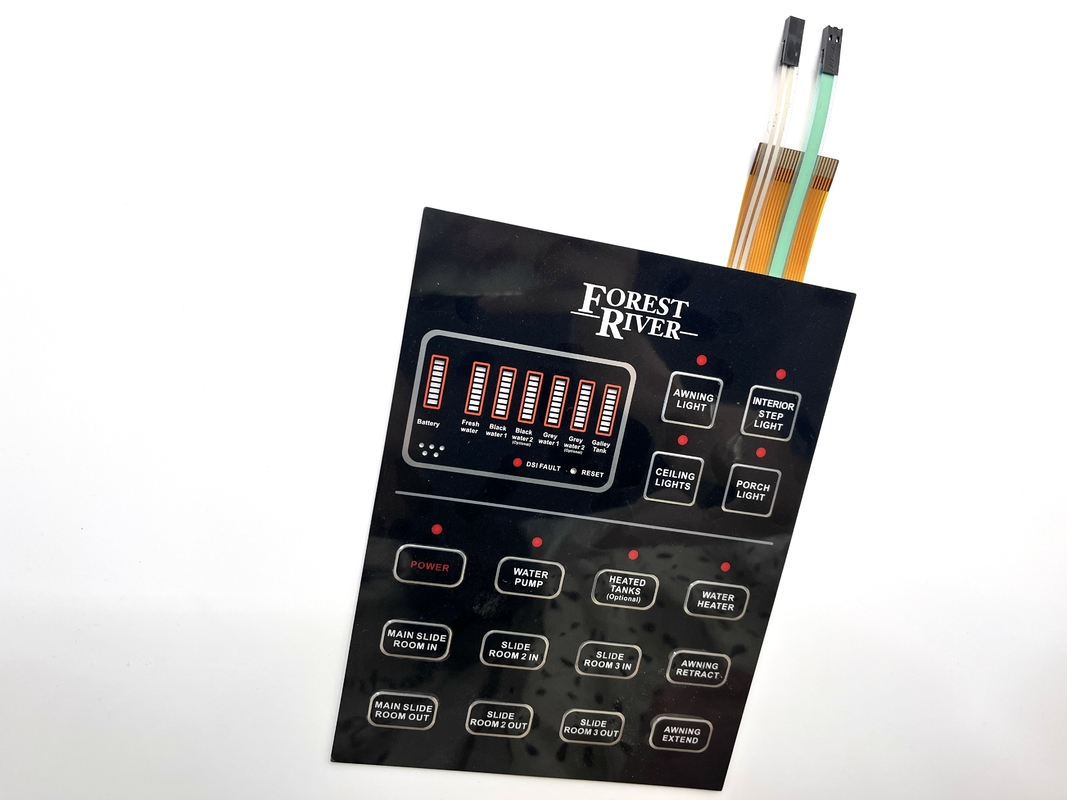

Flexible PCB Based Membrane Keypad UV Resistant With Flat Keys
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM, or 0.5MM |
| Adhesive | 3M adhesive or others |
| Circuit Options | Silver flex circuit |
| Surface Finish | Velvet texture |
| Embossing Shape | Pillow embossing |
| Type | Flexible |
| Operating Temperature | -20°C to 70°C |
| Circuit | Printing Silver Ink On PET Material |
| Storage Temperature | -40℃ to 70℃ |
| LED Color | Green, white or other request |
Product Description
Rear Surface Printing PCB Based Membrane Keypad With Flat Keys
ESD (Electrostatic Discharge) shielding protects sensitive electronic components from static electricity damage. Our membrane switches incorporate specialized ESD shielding layers for enhanced reliability in demanding environments.
Key Components
- Overlay Layer: Top flexible layer (polyester/polycarbonate) with printed graphics and tactile surface
- Spacer Layer: Thin separation layer ensuring proper key return after press
- PCB: Base layer containing electrical circuitry and conductive traces
- Conductive Traces: Printed connections that complete circuits when keys are pressed
Ideal Applications
- Industrial machinery and equipment
- Medical devices
- Automotive electronics
- Consumer electronics with touch-sensitive interfaces
Customization Options
Overlay Material:
- Polyester: Chemical resistant, durable, versatile for embossing
- Polycarbonate: Cost-effective, wide range of finishes and thicknesses
Embossing: Graphic overlay can be embossed to accommodate metal domes for tactile feedback
Windows/LCD: Available in printed colors or transparent finishes
Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot) options
LEDs: Multiple color options including white, green, red, blue, yellow, orange
Cables: Screen printed silver, copper plated, or PCB cable options
Connectors: ZIF (0.5-1.25mm pitch), female (2.54mm pitch), or male connectors
Shielding: Gasket seal for waterproofing or EMI/RFI/ESD protection options
Standard Tolerances: +/-0.2MM
Product Images
Electrical Properties
- Operating voltage: ≤ 50VDC
- Working current: ≤ 100mA
- Contact resistance: 0.5 ~ 5Ω
- Insulation resistance: ≥ 100MΩ (100VDC)
- Substrate voltage: 2kDVC
- Spring time: ≤ 6ms
- Loop resistance: 60Ω
- Insulation ink voltage: 100VDC
Our Services
- 24-hour response to inquiries
- Custom design, OEM and ODM services
- Professional English support from experienced staff
- Unique solutions from trained engineers
- Quality testing and short lead times
- Custom shapes, sizes, colors, and technologies
- Pre-production samples and design approval process
Frequently Asked Questions
Q1. What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging available with authorization.
Q2. What is your terms of payment?
50% deposit, 50% balance before delivery with product photos for approval.
Q3. What is your terms of delivery?
EXW, FOB shipping options available.
Q4. How about your delivery time?
Typically 10-15 days after deposit, depending on order specifics.
Q5. Can you produce according to samples?
Yes, we can produce from samples or technical drawings, including mold creation.
Q6. What is your sample policy?
Samples available for stock items with customer covering costs.
Q7. Do you test all goods before delivery?
Yes, we perform 100% testing before shipment.
Q8: How do you maintain long-term relationships?
We combine quality products with competitive pricing and treat every customer as a valued partner.
