Glossy Surface Custom Membrane Switch Membrane Key Switch With Tactile Feedback Buttons
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 240705-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 90000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK , |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM ,1.0MM ,1.25MM ,0.5MM | Adhesive: | 3M Adheisve Or Others |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit |
| Surface Finish: | Velvet Texture Or Glossy | Connector Brand: | NICOMATIC Female Connector |
| Highlight: | Glossy Surface Custom Membrane Switch,Glossy Surface Membrane Key Switch,Tactile Custom Membrane Switch |
||
Product Description
Glossy Surface Custom Membrane Switch With Tactile Feedback Buttons
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL, CMYK |
| Pitch of Connect | 2.54MM, 1.0MM, 1.25MM, 0.5MM |
| Adhesive | 3M adhesive or others |
| PN | Membrane switch, Membrane keypad, keyboard, overlay |
| Circuit options | Silver flex circuit |
| Surface finish | Velvet texture or glossy |
| Connector brand | NICOMATIC Female connector |
Product Features
- PET Durability: Excellent strength and durability for frequent use
- Glossy Finish: Enhances aesthetic appeal and allows for vibrant color printing
- Tactile Feedback: Provides physical confirmation of button presses
- Custom Design: Flexible options for graphics, shapes, and sizes
- Environmental Resistance: Chemical and temperature tolerant
Technical Details
Overlay Material Options:
- Polyester: Highly versatile for embossing, chemical resistant, durable
- Polycarbonate: Cost-effective with various surface finishes and thicknesses
Embossing Options:
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
Key Options:
- Tactile Keys: Metal domes or Poly domes with various diameters and pressures
- Non-tactile keys: Printed silver spot on the circuit
Electrical Properties
- Operating voltage: ≤ 50VDC
- Working current: ≤ 100mA
- Contact resistance: 0.5 ~ 5Ω
- Insulation resistance: ≥ 100MΩ (100VDC)
- Substrate voltage: 2kDVC
- Spring time: ≤ 6ms
- Loop resistance: 60Ω
- Insulation ink voltage: 100VDC

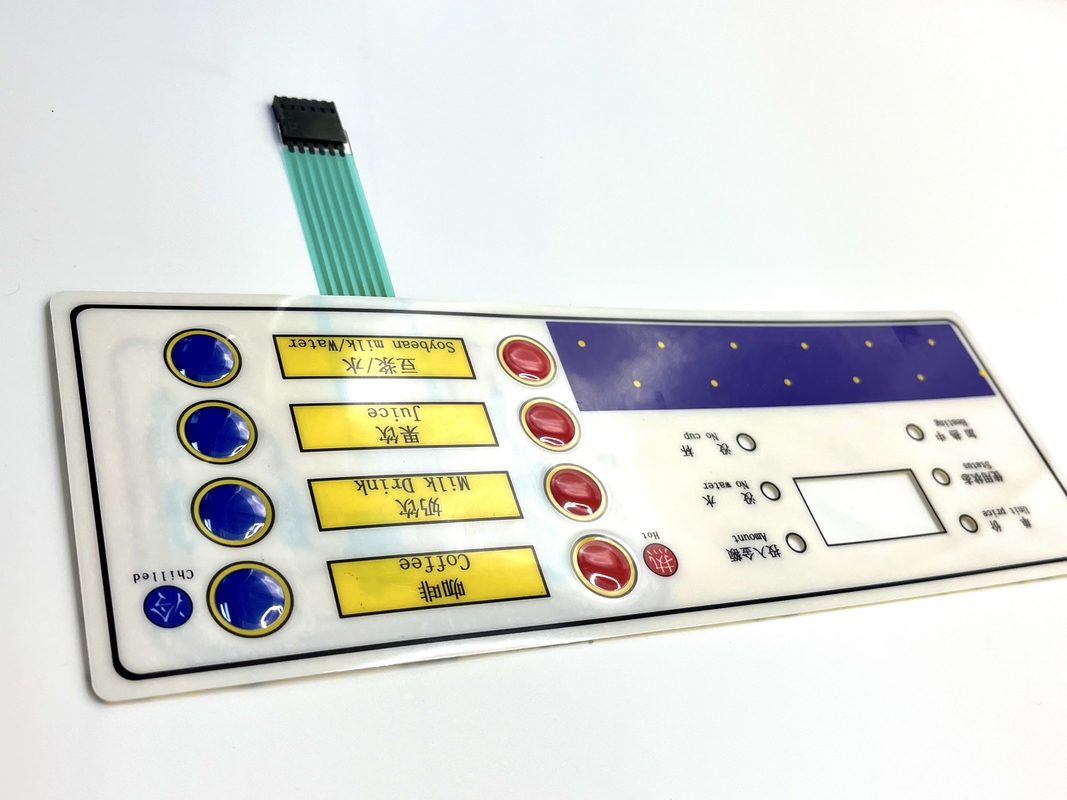

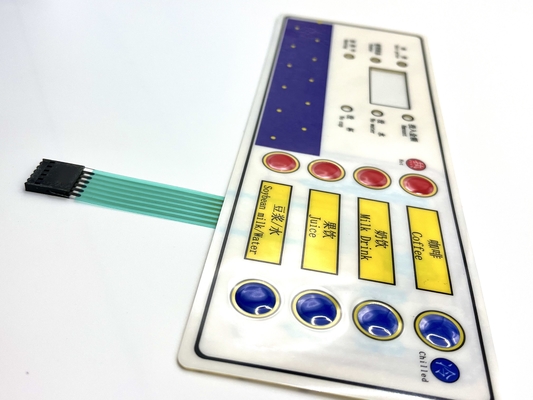

Product Images
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM)
- Professional engineering support
- Quality testing and short lead times
- Prototype samples available
- Flexible solutions for buttons, LEDs, sensors
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging available with authorization.
Q2. What is your terms of payment?
A: 50% deposit, 50% before delivery with product photos for approval.
Q3. What is your delivery time?
A: Typically 10-15 days after receiving deposit, depending on order specifics.
Q4. Do you test all products before delivery?
A: Yes, we perform 100% testing before shipment.
