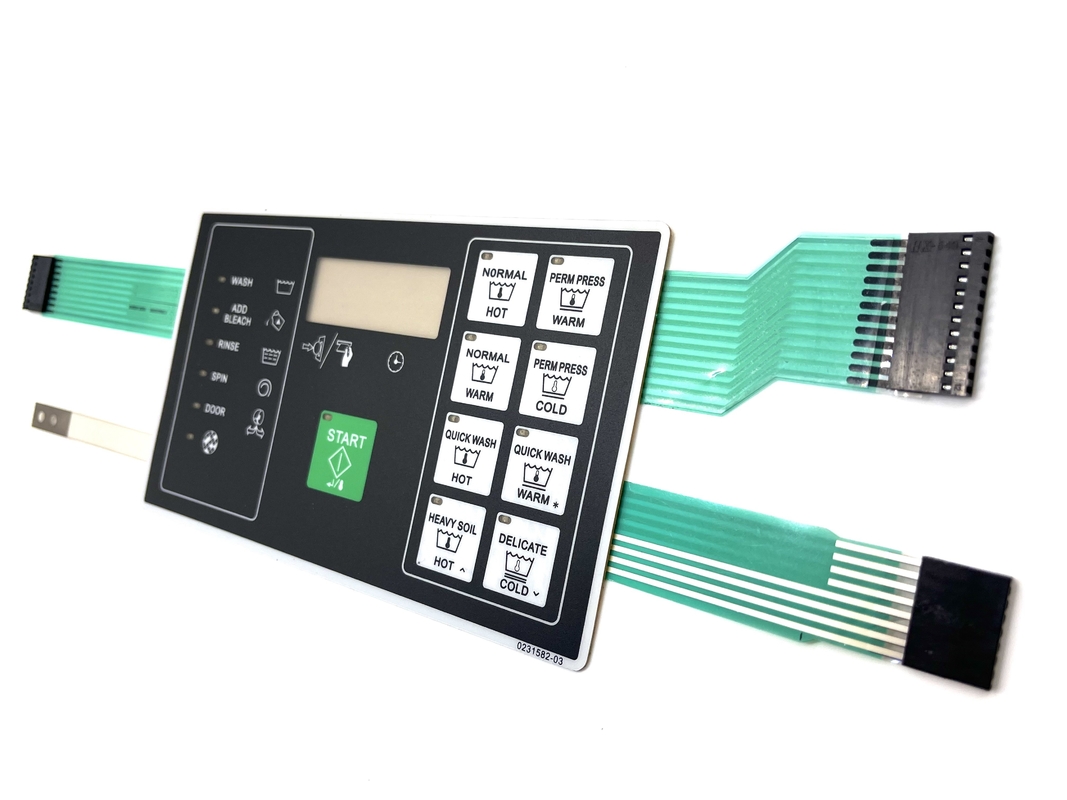

Low Profile Custom Membrane Switch Remote Control Tactile Metal Dome Switch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0705-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 40000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Button Type: | Tactile Button | Adhesive: | 3M Adheisve Or Others |
| Embossing Shape: | Pillow Embosing | Circuit Options: | Silver Circuit |
| Pitch Of Contact: | 2.54MM Or Other Request | Application: | Remote Controller |
| Highlight: | Low Profile Custom Membrane Switch,Low Profile Tactile Metal Dome Switch,Remote Control Tactile Metal Dome Switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Button type | Tactile button |
| Adhesive | 3M adhesive or others |
| Embossing shape | Pillow embossing |
| Circuit options | Silver circuit |
| Pitch of contact | 2.54MM or other request |
| Application | Remote controller |
Custom Made Remote Control ESD Membrane Keyboard With Female Connector
This keyboard utilizes electrostatic discharge (ESD) membrane technology instead of traditional mechanical keys, designed for remote control operation via wireless connections like Bluetooth or RF.
- Wireless remote control for flexible placement
- ESD-safe membrane design for static protection
- Spill-resistant and easy to clean surface
- Compact, low-profile form factor
- Compatible with PCs, tablets, smart TVs, and more
| Category | Specification |
|---|---|
| Environmental | |
| Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) |
| Humidity | 40°C, 90% to 95% for 240 hours |
| Vibration | 20G's max. |
| Mechanical | |
| Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm |
| Switch Stroke (Tactile) | 0.6 to 1.5mm |
| Life Expectancy (Non-tactile) | >5 million actuations |
| Life Expectancy (Tactile) | >1 million actuations |
| Electrical | |
| Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive |
| Operating Power | 1 watt maximum |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout |
| Insulation Resistance | 100M ohms at 100V DC |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) |
| Contact Bounce | ≤ 5 milliseconds |
Overlay Material: Polyester or Polycarbonate with various characteristics for different applications.
Embossing Options: Pedestal, Rim, Pillow, or Dim embossing for tactile feedback.
Windows/LCD: Printed color windows or transparent finishes for display functions.
Keys: Tactile (metal/poly domes) or Non-tactile (printed silver spot) options.
LEDs: Available in multiple colors including white, green, red, blue, yellow, and orange.
Cables: Various options including screen printed conductive silver, copper plated, or PCB cables.
Connectors: ZIF (0.5MM, 1.0MM, 1.25MM pitch), Female (2.54MM pitch), or Male connectors.
Standard Tolerances: +/-0.2MM
With over 15 years of experience, we specialize in designing and manufacturing membrane switches, graphic overlays, and adhesive stickers/labels for industrial, electronics, household appliances, and medical equipment applications.
- Factory Area: Over 2000 Square meters
- Employees: >70
- R&D: Continuous quality improvement and professional technical support
- Manufacturing: Strong productivity with unified processes
- Quality Control: 20% of workforce dedicated to QC/QA
- Global Reach: Serving customers in USA, EU, UK, Middle East, and worldwide
