0.5MM Pitch Standard Membrane Switch ESD Shielding Easy To Clean Professional
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0617-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 12000 +pcs +a Month |
|
Detail Information |
|||
| Overlay Material: | Polyester Or Polycarbonate ,silicone Or Custom Design | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Adhesive: | 3M Adheisve,Sony Or Others | Button Type: | Poly Dome ,flat,metal Dome Or Silicone |
| Embossing Shape: | Rim Or Pollow Embosing | Total Thickness: | 0.175MM-1.0MM |
| LCD Options: | Transparent ,Tinted ,Cutout | Pitch Of Connector: | 1.0MM ,1.25MM ,2.54MM Or 0.5MM |
| Connector Options: | ZIF,male Or Female Connector | Application: | CNC Machine |
| Highlight: | 0.5MM Pitch Standard Membrane Switch,0.5MM Pitch flexible membrane panel,Easy To Clean Standard Membrane Switch |
||
Product Description
Water Resistant Standard Membrane Switch with ESD Shielding and Easy-to-Clean Surface
Product Specifications
| Attribute | Value |
|---|---|
| Overlay Material | Polyester, Polycarbonate, Silicone or custom design |
| Color | Pantone, RAL, CMYK, RGB or samples |
| Adhesive | 3M adhesive, Sony or others |
| Button Type | Poly dome, flat, metal dome or silicone |
| Embossing Shape | Rim or Pillow embossing |
| Total Thickness | 0.175MM - 1.0MM |
| LCD Options | Transparent, Tinted, Cutout |
| Pitch of Connector | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
| Connector Options | ZIF, male or female connector |
| Application | CNC machine |
LCD Window Membrane Switch Overview
Our LCD window membrane switch combines a durable membrane switch with a transparent window for LCD screen integration. This professional-grade input device features:
Key Features
- Multi-layer construction: Protective top layer, membrane switch layer, and PCB layer
- Integrated LCD display: Visible through transparent window for real-time feedback
- Customizable design: Various materials, colors, and configurations available
- Durable performance: Engineered for industrial environments
Performance Specifications
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40° to 176°F) |
| Storage Temperature | -40°C to +85°C (-40° to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm | |
| Switch Stroke (Tactile) | 0.6 to 1.5mm | |
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
Detailed Specifications
Material Options
- Polyester: Chemical resistant, durable, suitable for internal/external use
- Polycarbonate: Cost-effective with various finish options, suitable for internal/external use
Embossing Options
- Rim embossing
- Pillow embossing
- Dim embossing
- Pedestal embossing
Window Options
- Printed color windows
- Transparent finish windows
Key/Button Options
- Tactile keys with metal dome or poly dome
- Non-tactile with silver printing spot
Additional Features
- Embedded LEDs in multiple colors (white, yellow, orange, green, red)
- Flexible cable options for device communication
- EMI/RFI/ESD shielding with aluminum foil or ITO conductive polyester
- 3M double-sided adhesive standard
- Backplate options in aluminum, polycarbonate or acrylic

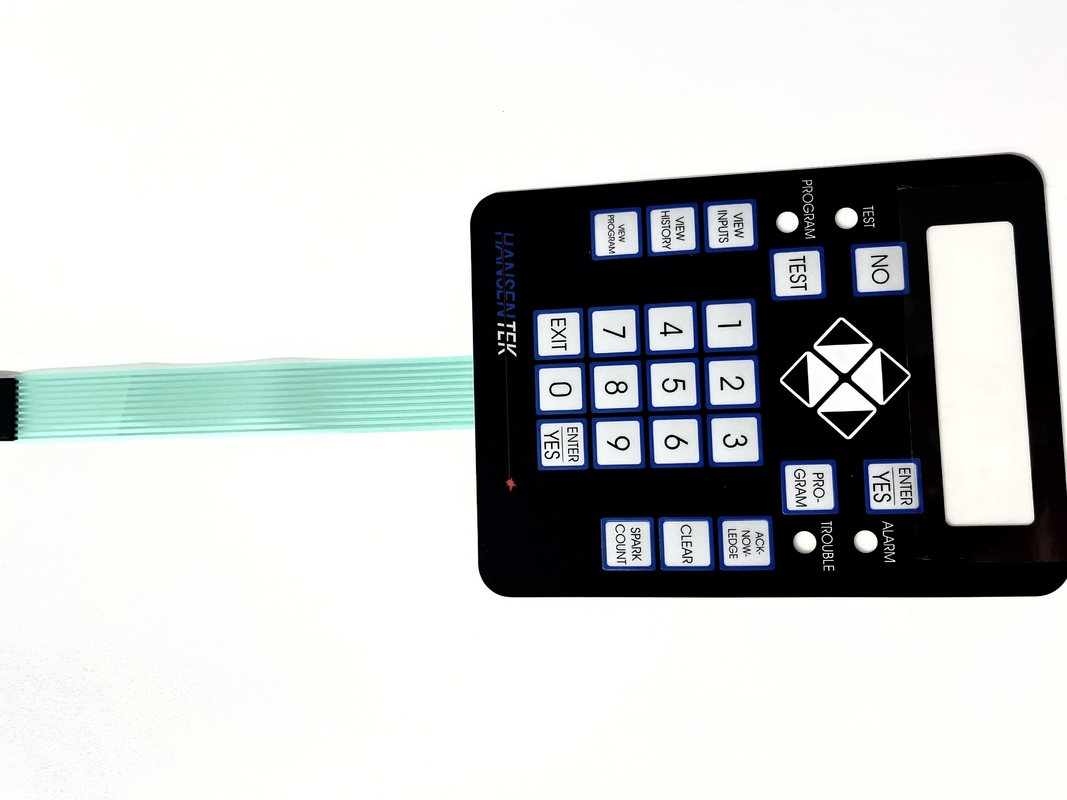

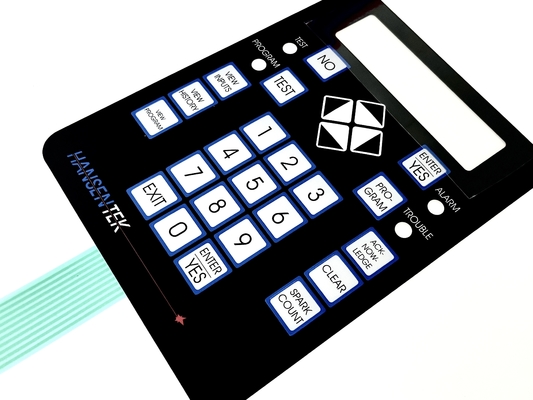

Product Images
About ShenZhen TaiDa Membrane Switch Co., Ltd
TaiDa is a professional OEM manufacturer specializing in membrane switches, graphic overlays, and adhesive labels with over 15 years of experience. Our products are widely used in industrial, electronics, household appliances, and medical equipment applications.
Company Highlights
- Factory area: Over 2000 square meters
- Workforce: 70+ employees
- Global customer base: Serving clients from USA, EU, UK, Middle East and worldwide
- 20% of workforce dedicated to quality control
Capabilities
- R&D department for continuous quality improvement and custom designs
- Efficient manufacturing processes for fast delivery
- Comprehensive quality assurance program
- Reliable dispatch department for accurate shipping
